FSW223

Stretch Station

Try our AR-app

Stretch Station

Color DARK BLUE

The stretch station invites to several body weight strength and stretch exercises for all difficulty levels. Shoulders and torso can be stretched in all relevant angles independently of individual flexibility. Lower limbs can be stretched by placing the feet on the lowest bars or on the ground with hand support on the bars. Or for more challenging stretches, feet can be placed on higher bars. Also, when physiotherapists are involved, the stretch station is a perfect mount for elastic bands.
Photos
Photos
Photos

The products might not be exactly as shown

13+ Years4 Users

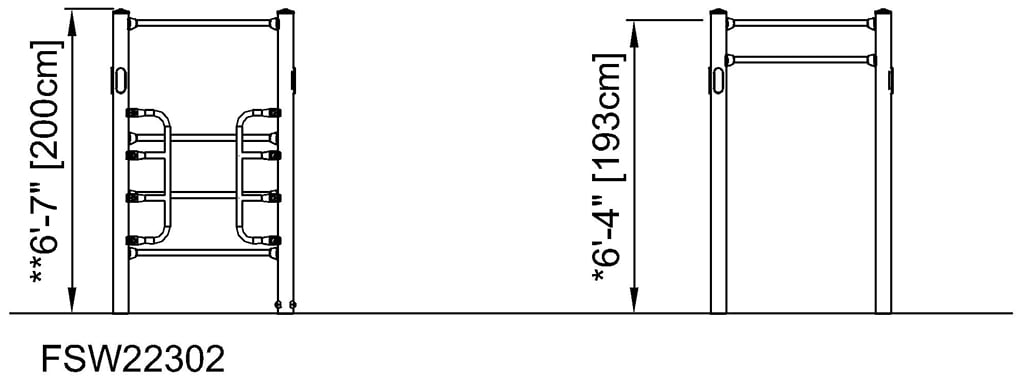

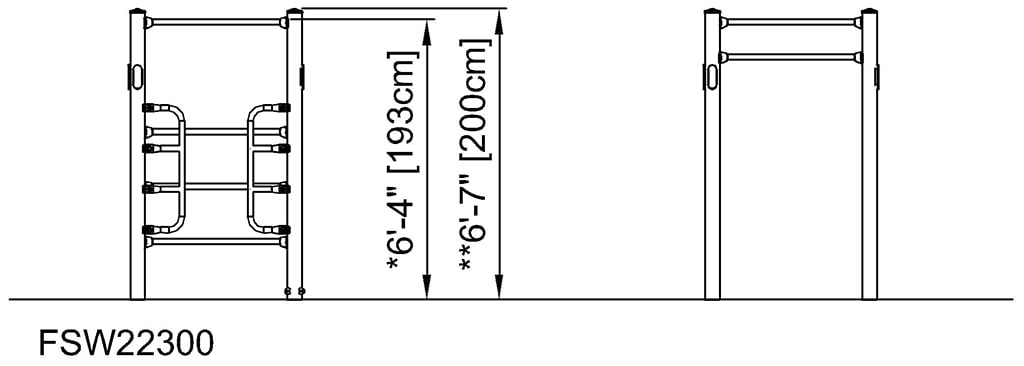

Side View (image)

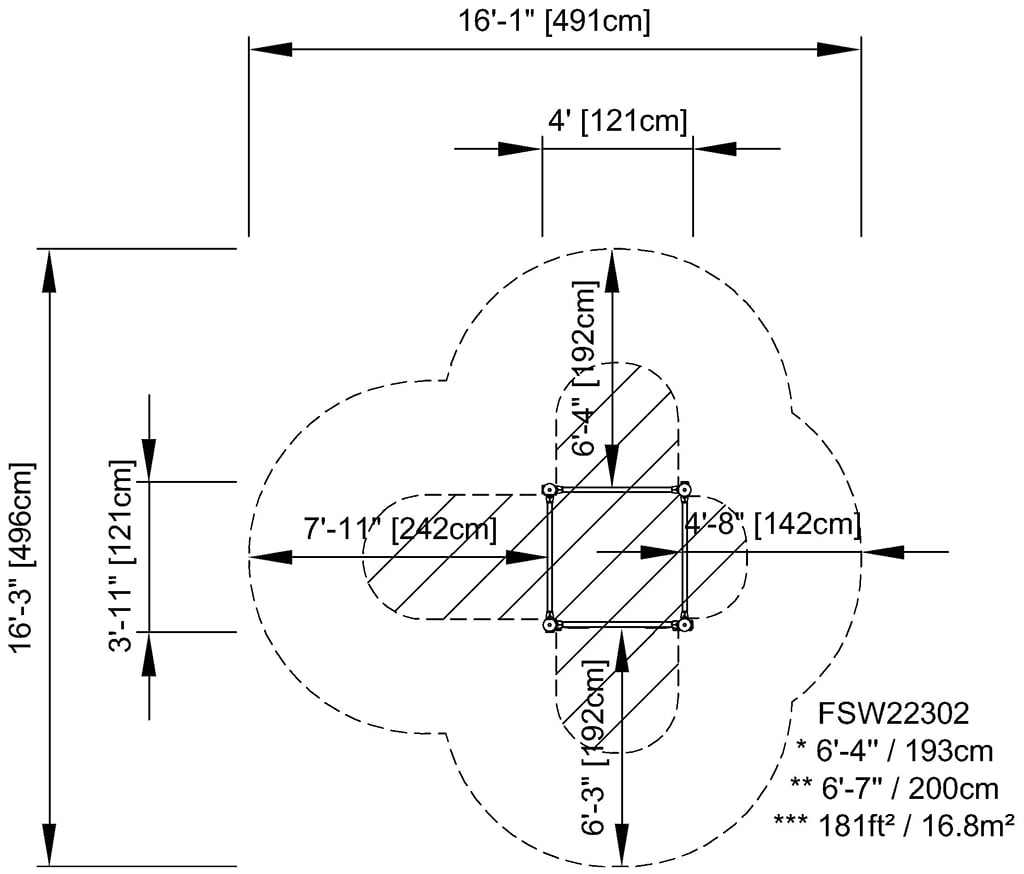

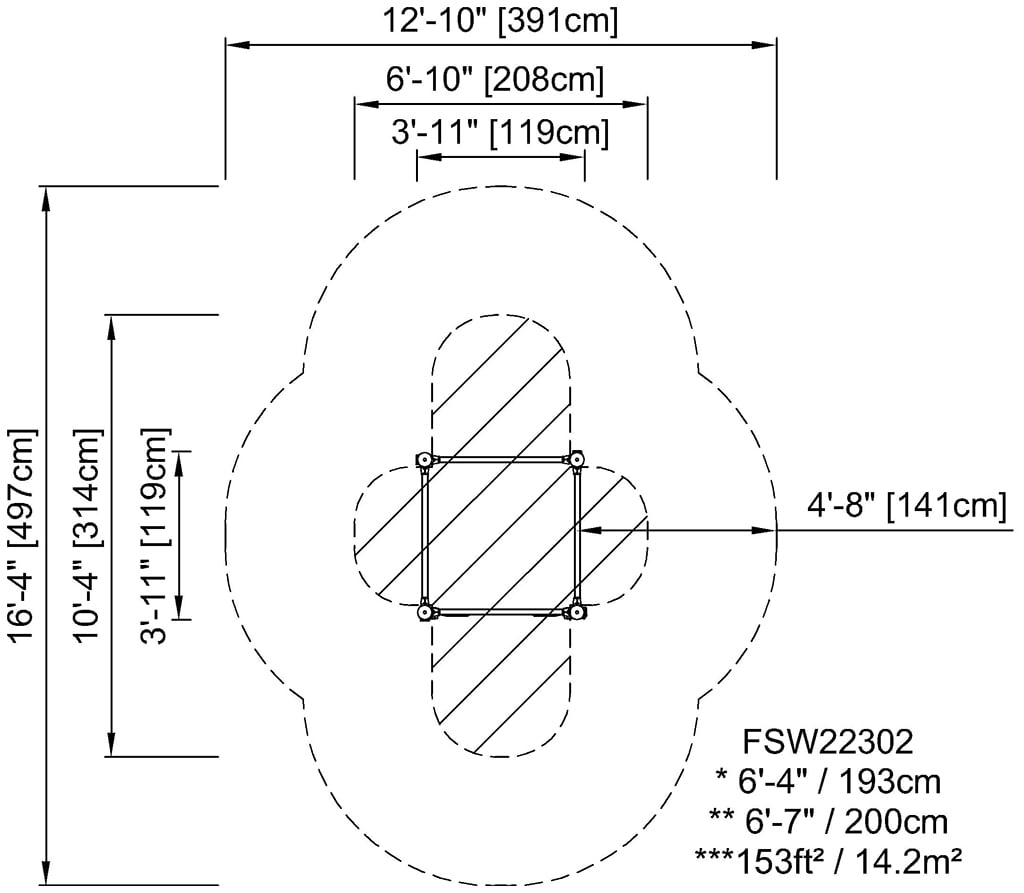

Foot Print (image)

Length

3' 11"

Width

3' 11"

Height

6' 7"

Specifications

The stretch station invites to several body weight strength and stretch exercises for all difficulty levels. Shoulders and torso can be stretched in all relevant angles independently of individual flexibility. Lower limbs can be stretched by placing the feet on the lowest bars or on the ground with hand support on the bars. Or for more challenging stretches, feet can be placed on higher bars. Also, when physiotherapists are involved, the stretch station is a perfect mount for elastic bands.

This product, Stretch Station (FSW223), is provided by KOMPAN United States.

Key Features

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Handrail

Handrail intended as grips during exercises are made of hot-dip galvanized steel ø38mm, a great diameter for a good grip and to support the wrist. The height of the handrail is 940mm from the top of the HPL plate. The distance between the rails is 900mm.

FSW_Handles in four hights

The handles offer 4 different heights to place the hands or feet; 48cm, 76cm, 104cm and 132cm, creating the opportunity to scale the difficulty of the exercise.

FSW_Post

Post are made of 101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.

General_Fitness standards

All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW22300-0902

295.8

Total CO₂ emission (kg CO₂e)

3.63

CO₂e/kg (kg CO₂e/kg)

47.5%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
