FSW237

Flex Wheel & Leg Lift

QR Code for Kompan EN/INT frontpage

Try our AR-app

Flex Wheel & Leg Lift

Color DARK BLUE

Loading Designer
The Flex Wheel is simple to use and requires little experience beforehand. The turning movement has a low-level resistance achievable by users at all levels. The ergonomically designed handles allow for natural wrist rotation and give the user the opportunity to do exercises from multiple positions. The wheel will develop shoulder and upper body mobility. For really challenging exercises it can be used standing on one foot using one hand – either front-facing or sideways.The Leg Lift Station is an excellent piece of equipment for ab workouts. It allows users to exercise their abdominal muscles by performing leg lifts while holding themselves up in the chair. This exercise targets all of the abdominal muscles.
Photos
Photos

The products might not be exactly as shown

13+ Years2 Users

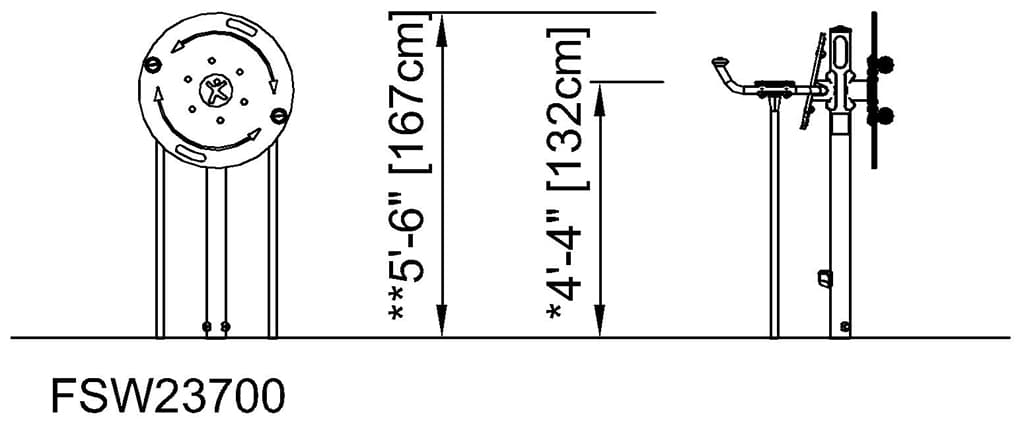

Side View (image)

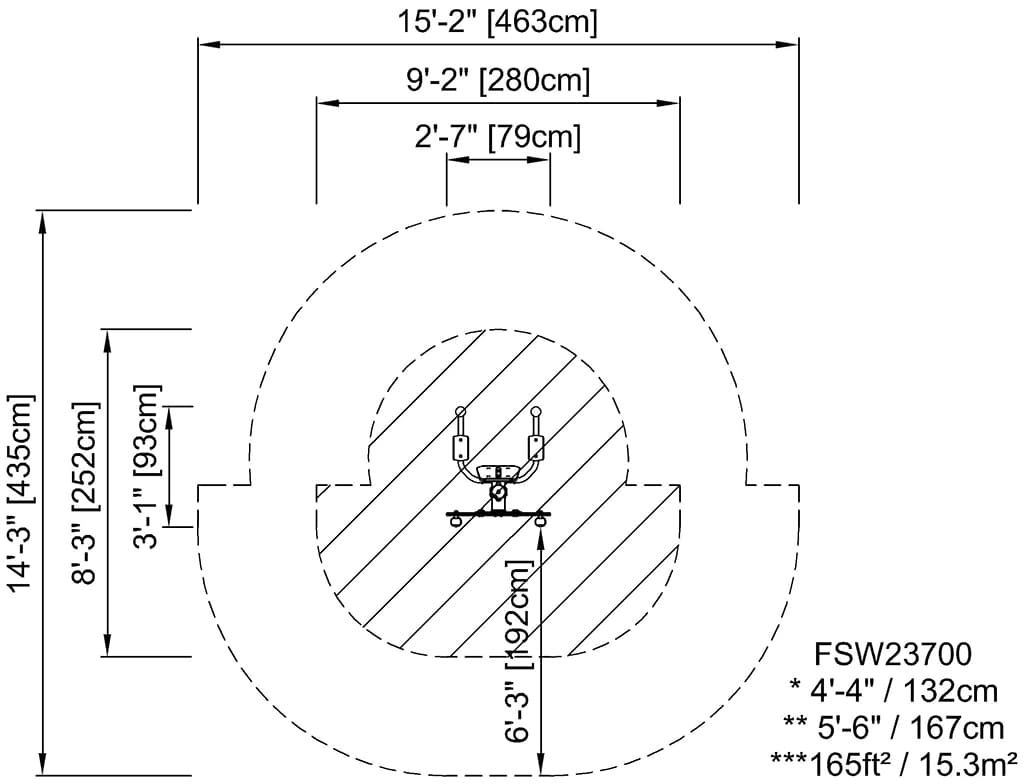

Foot Print (image)

Length

2' 7"

Width

3' 1"

Height

5' 6"

Specifications

The Flex Wheel is simple to use and requires little experience beforehand. The turning movement has a low-level resistance achievable by users at all levels. The ergonomically designed handles allow for natural wrist rotation and give the user the opportunity to do exercises from multiple positions. The wheel will develop shoulder and upper body mobility. For really challenging exercises it can be used standing on one foot using one hand – either front-facing or sideways.The Leg Lift Station is an excellent piece of equipment for ab workouts. It allows users to exercise their abdominal muscles by performing leg lifts while holding themselves up in the chair. This exercise targets all of the abdominal muscles.

This product, Flex Wheel & Leg Lift (FSW237), is provided by KOMPAN United States.

Key Features

FSW_Alu steps

Steps are made of extruded aluminium with a non-skid surface. Aluminium has high corrosion resistance and ensures durability of the product. Steps have been mounted at heights of 34,7cm and 54,7cm this creates an easy access to reach the overhead activity

FSW leg lift

The frame of the leg lift is made from Ø38 x 2mm HDG steel tube. The support plates are made from 15mm Ekogrip®, a 15 mm PE plate with a 3 mm top-layer of thermoplastic rubber with non-skid effect.The arm supports are 110 x 195mm, 580mm apart, and 1315mm above ground. The back support is 335 x 500mm. The opening in the back is 30 x 350mm.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Ball grips

The ball grips are ø80mm and are made from black, vacuum formed polycarbonate (PC). Polycarbonate is extremely strong and can withstand a very high impact.

FSW_Bearing house

The bearing house is made from hot dip galvanised steel. The bearing shaft is made from stainless steel AISI304. The bearing itself is made from Polyoxymethylene (POM), an engineering thermoplastic with a high stiffness, low friction, and excellent dimensional stability.

FSW_EcoCore wheel

The ø800x19mm wheel is made from HDPE EcoCore™ plate. EcoCore™ is a highly durable, ecofriendly material, which is not only recyclable after use, but is also made of +95% recycled post-consumer material from e.g., food packing waste in both core and colorful outer layer.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW23700-0902

154.61

Total CO₂ emission (kg CO₂e)

2.69

CO₂e/kg (kg CO₂e/kg)

52.97%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
