COR10503

Cubite with Add-ons

Try our AR-app

Color LIGHT BLUE

The Cubite with Add-Ons is an immense three-dimensional rope environment that thrills children again and again. The variety in climbing ensures hours of play. The bouncy interconnected ropes of the Cubite add thrill: the child can feel their own movements and the movements of others when climbing. At this height that means risk assessment and concentration. The twisted Jacob's ladders are a challenge: when on the second step, the child needs to use all of their movement logic to master climbing onwards. The steel frame is a destination in its own right, offering a break or a meeting point. The membranes add a fast, bouncy way to the top and function as destination and meeting points at the same time. Social interaction and stimulation of cooperation are encouraged here. The bouncy climbing membrane adds variation in climbing. The whole structure is transparent facilitating communication across the net.

The products might not be exactly as shown

Key Features

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.

The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.

Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 7.5 mm.

The metal parts are made of high quality steel, hot dip galvanized inside and outside with lead-free zinc. On the outside, there is an additional layer of powder coating. This ensures both excellent corrosion resistance and colorful design expression.

The COROCORD Frame Nets are available in 6 galactic color themes. The themes draw on bright colors that appeal to children of all ages. Can be changed in the configurator.

5 - 12 Years42 Users

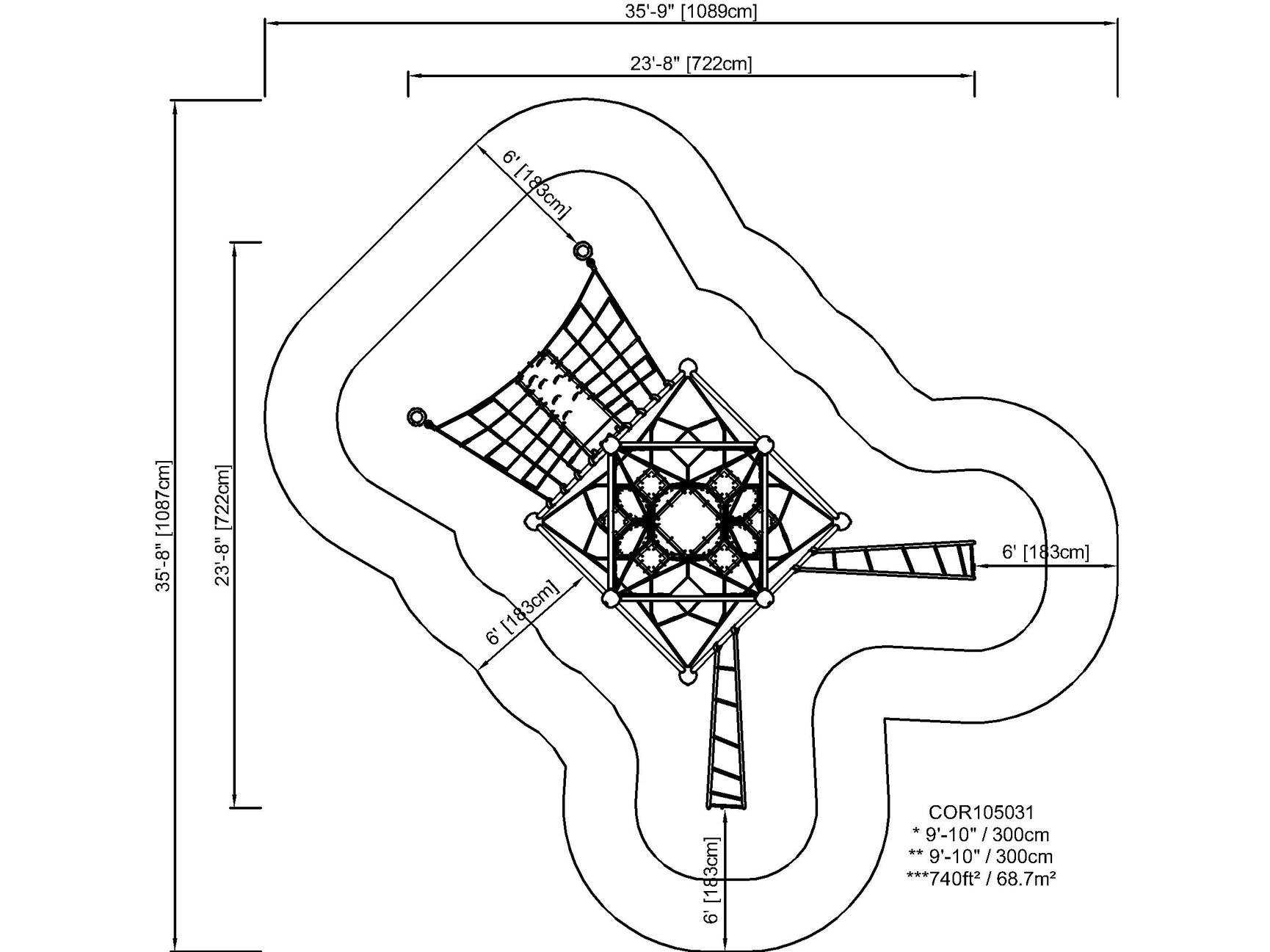

Length

23' 8"

Width

23' 8"

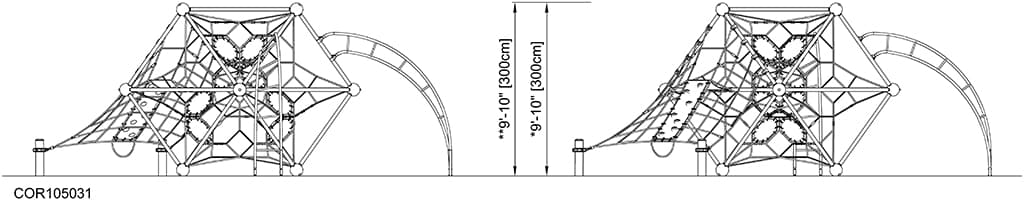

Height

9' 10"

Specifications

The Cubite with Add-Ons is an immense three-dimensional rope environment that thrills children again and again. The variety in climbing ensures hours of play. The bouncy interconnected ropes of the Cubite add thrill: the child can feel their own movements and the movements of others when climbing. At this height that means risk assessment and concentration. The twisted Jacob's ladders are a challenge: when on the second step, the child needs to use all of their movement logic to master climbing onwards. The steel frame is a destination in its own right, offering a break or a meeting point. The membranes add a fast, bouncy way to the top and function as destination and meeting points at the same time. Social interaction and stimulation of cooperation are encouraged here. The bouncy climbing membrane adds variation in climbing. The whole structure is transparent facilitating communication across the net.

This product, Cubite with Add-ons (COR10503), is provided by KOMPAN United States.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

COR105031-0412

2657

Total CO₂ emission (kg CO₂e)

3.78

CO₂e/kg (kg CO₂e/kg)

38.8%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
