COR10503
Cubite with add-ons
Age Group
5+ Years
Capacity
42
Inclusive
No
Product category
COR10503
Cubite with add-ons
Specifications
Cubite with add-ons

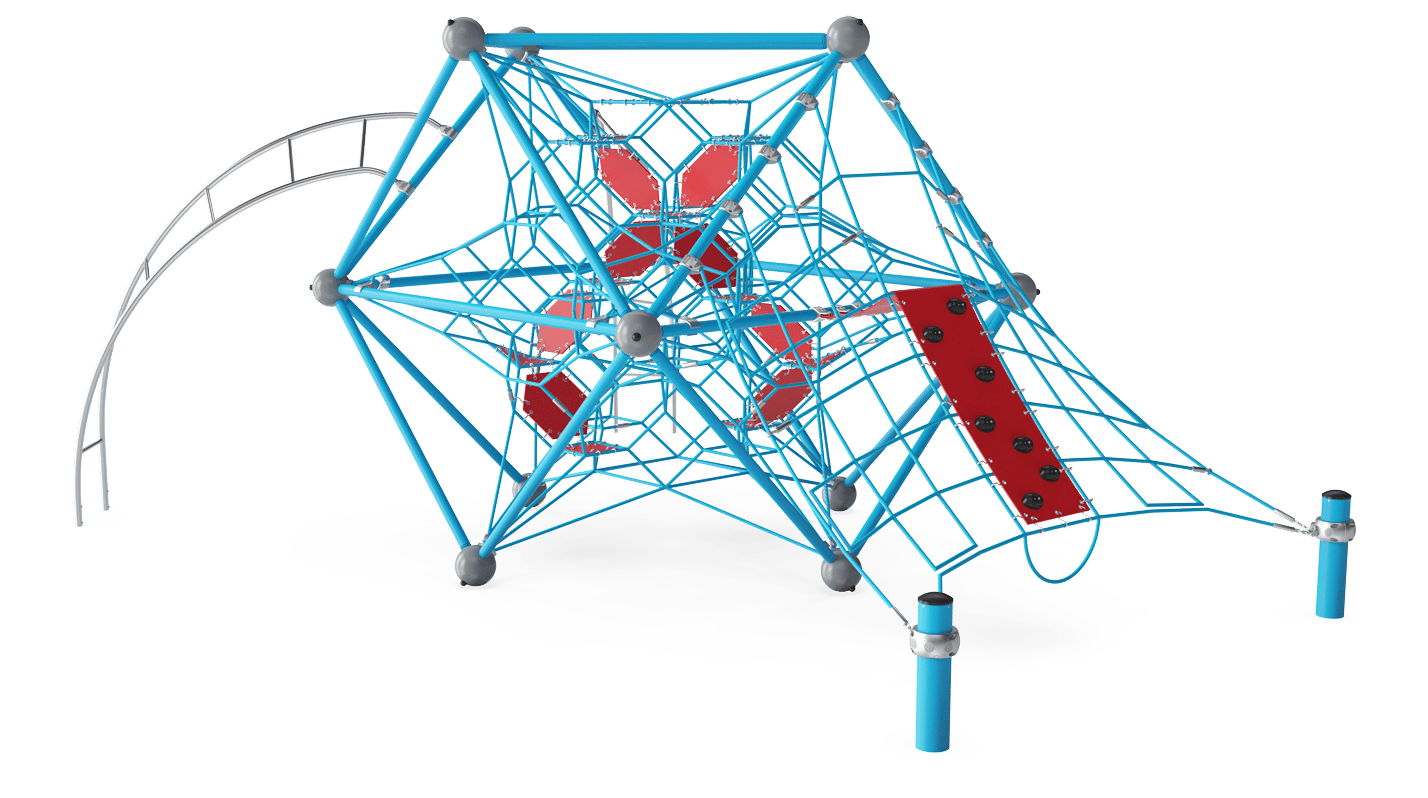

The Cubite with Add-Ons is an immense three-dimensional rope environment that thrills children again and again. The variety in climbing ensures hours of play: the bouncy interconnected ropes of the Cubite add thrill, the child can feel its own and all their friends movements when climbing. At this height that means risk assessment and concentration. The twisted Jacob's ladders are a challenge, when on the 2nd step, the child needs to use all of its movement logic to master climbing onwards. The steel frame is a destination in its own right, offering a break or a meeting point. The membranes add a fast, bouncy way to the top and function as destination and meeting points at the same time. Social interaction and stimulation of cooperation is encouraged here. The bouncy climbing membrane adds variation in climbing. And all is transparent facilitating communication across the net.
This product, Cubite with add-ons (COR10503), is provided by KOMPAN Middle East (MEA).
Length
722 cm
Width
722 cm
Height
300 cm
Fall Space Length
1023 cm
Fall Space Width
1023 cm
Age Group
5+ Years
Key user group
5 - 12 Years
Capacity
42
Inclusive
No
Product category
Rope & Climbing Playgrounds
Product line
Corocord™ School-age
Product Highlights
Quality that lasts
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.

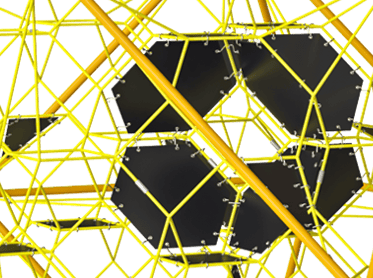

Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7.5 mm.

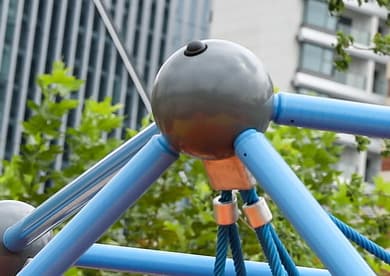

The metal parts are made of high quality steel, hot dip galvanised inside and outside with leadfree zinc. On the outside, there is an additional layer of powder coating. This ensures both excellent corrosion resistance and colourful design expression.
The COROCORD Frame Nets are available in 6 galactic colour themes. The themes draw on bright colours that appeal to children of all ages. Can be changed in the configurator.
Play Activities
Bounce
10
Climb
14
Crawl
9
Hang in arms
3
Sensory
6
Socialize
12
Wonder
3
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR105031-0412
4801.88
Total CO₂ emission (kg CO₂e)
6.81
CO₂e/kg (kg CO₂e/kg)
43.72%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
