PCM104131

Sand Gravel Pit

QR Code for Kompan EN/INT frontpage

Try our AR-app

Sand Gravel Pit

Color MEDIUM GREEN

Loading Designer
The Sand Gravel Pit is an immensely attractive sand play unit that will absorb children in play for hours and hours. The crane is worked by pulling the chain. The sand bucket will go up or down or all around, but it will stay put when the chain is let go of. This, apart from providing fascinating sand play, is a great training of children's logical thinking skills. The negotiation and cooperation to get sand to and from the funnel via the buckets or sand scoops is great for older children and develops social-emotional skills. In the house, multiple tactile elements can be moved to entertain children who wait for the sand crane. The sand funnel here supports children's understanding of object permanence: that things can still exist when out of sight. The platform is open and can be accessed in multiple ways, allowing for all users to play. And on the side, a somersault bar takes care of any surplus energy needed to be burnt.
Photos
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Sand bucket

Physical

cross coordination thereby developing cooperation of left and right brain half which is necessary for academic skills such as reading.

Cognitive

understanding of object permanence, emptying and filling bucket.

Sand shovel

Physical

develops dexterity and upper body muscles.

Cognitive

understanding of object permanence, emptying and filling scoop.

Play sphere

Social-Emotional

can be played from both sides, encouraging cooperation.

Cognitive

cause and effect understanding.

Creative

leave a mark and place the spheres at different positions.

Sand scoops

Physical

hand eye coordination and push-pull movements.

Social-Emotional

invites cooperation with two sides and provides for parallel play.

Cognitive

logical thinking: cause and effect understanding when running scoops in grooves or shifting materials from scoop to scoop.

Creative

shifting scoops, creating new scoop positions.

Somersault bar

Physical

develop balance and core when hanging from knees. Arm, leg and core muscles are developed when climbing up, somersaulting around. Balance and spatial awareness are strengthened.

Social-Emotional

meeting, socializing and turn-taking when climbing up and down via bar.

Funnel

Social-Emotional

trains cooperation and turn-taking as children put materials into the funnel.

Cognitive

the passing of materials through funnels supports the children's logical thinking and for younger children the understanding of object permanence: that materials don't vanish but run through at the other end.

Sand wheel

Cognitive

the turning sand wheel stimulates cause and effect understanding.

Window

Social-Emotional

invites interaction between sides and cooperative play.

Sand hoist

Physical

pulling the chain trains hand and arm muscles as well as the coordination.

Social-Emotional

cooperation and turn-taking skills are supported when cooperating on filling and hoisting sand up and down.

Cognitive

logical thinking skills are trained when understanding that pulling down makes the sand shovel go up.

Creative

working with moveable play items supports the child’s creativity.

2 - 5 Years24 Users

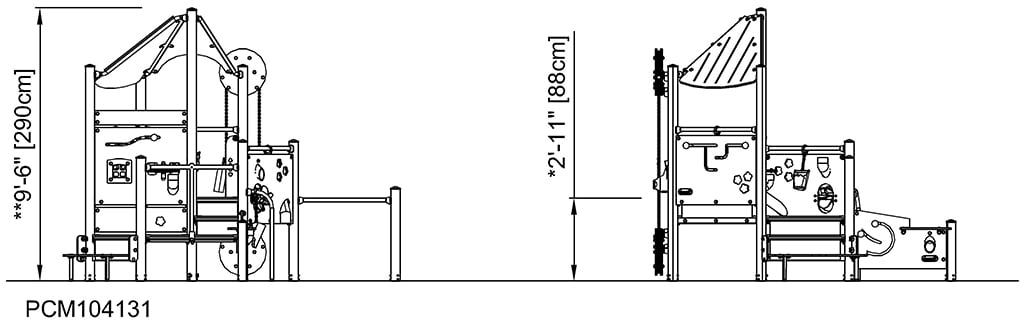

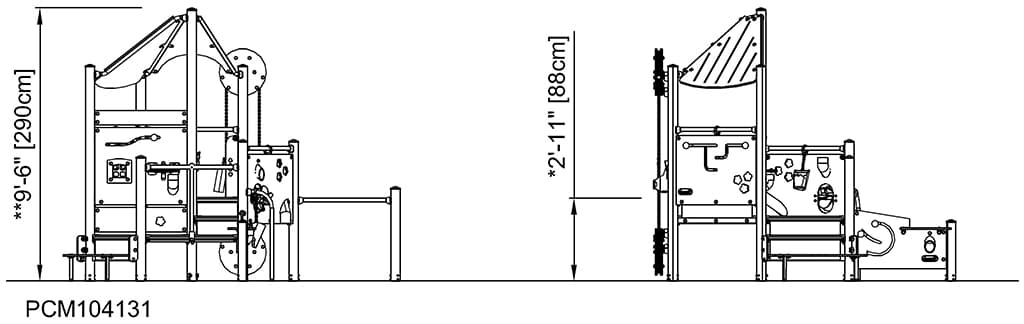

Side View (image)

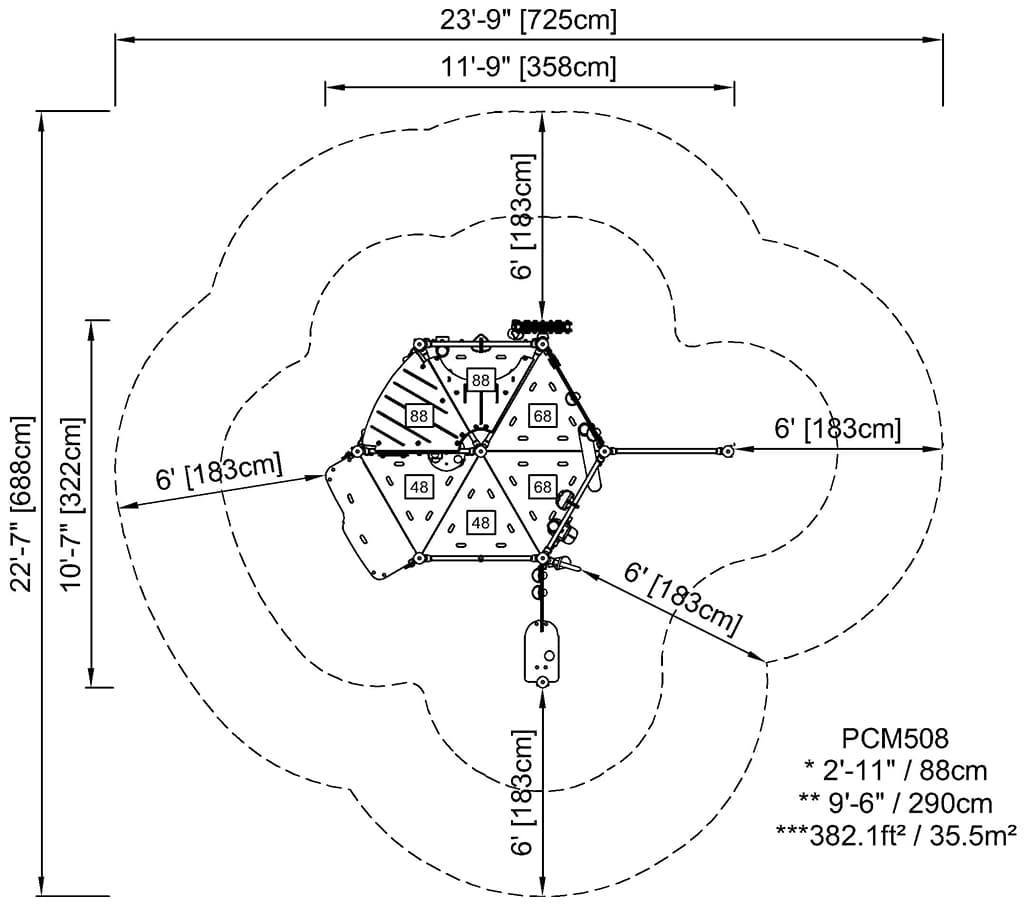

Foot Print (image)

Length

11' 9"

Width

10' 7"

Height

9' 6"

Specifications

The Sand Gravel Pit is an immensely attractive sand play unit that will absorb children in play for hours and hours. The crane is worked by pulling the chain. The sand bucket will go up or down or all around, but it will stay put when the chain is let go of. This, apart from providing fascinating sand play, is a great training of children's logical thinking skills. The negotiation and cooperation to get sand to and from the funnel via the buckets or sand scoops is great for older children and develops social-emotional skills. In the house, multiple tactile elements can be moved to entertain children who wait for the sand crane. The sand funnel here supports children's understanding of object permanence: that things can still exist when out of sight. The platform is open and can be accessed in multiple ways, allowing for all users to play. And on the side, a somersault bar takes care of any surplus energy needed to be burnt.

This product, Sand Gravel Pit (PCM104131), is provided by KOMPAN United States.

Key Features

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.

Play system posts incl TexMade

Main posts with hot-dip galvanized steel footing are available in different materials: Pressure impregnated pinewood posts. Pre-galvanized inside and outside with powder-coated top finish steel posts. Lead-free aluminum with color anodized top finish. Greenline TexMade posts of 100% post-consumer recycled PE and textile waste.

Play system molded decks

All decks are supported by uniquely designed low-carbon aluminum profiles with multiple attachment options. The grey-colored molded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and texture surface.

PCM sand hoist

The sand hoist is designed with upper and lower EcoCore tracks of large diameter that always ensures safe distance between the chains so they cant be crossed for entanglement. The chain is made of high-quality stainless-steel to ensure long durability of the product.

PCM sand bucket

The sand bucket is made in one piece of molded PE. The PE is made with 33% post-consumer materials in different colors with a wall thickness of minimum 5mm. Material in accordance with the European Standard EN 71-3 and tested for UV stability.

Play system greenline

KOMPAN GreenLine versions are constructed with the most environmentally friendly materials with the lowest possible CO2e emission factor. TexMade posts, EcoCoreTM panels of 100% post-consumer recycled ocean waste, and molded PP decks.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCM104131-0950

900.92

Total CO₂ emission (kg CO₂e)

2.09

CO₂e/kg (kg CO₂e/kg)

65.49%

Recycled materials

CO₂ friendly

PCM104131-0903

1013.37

Total CO₂ emission (kg CO₂e)

2.55

CO₂e/kg (kg CO₂e/kg)

57.28%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
