FSW236

Twist & Flex Wheel

QR Code for Kompan EN/INT frontpage

Try our AR-app

Twist & Flex Wheel

Color DARK BLUE

Loading Designer
This station is focused on mobility and improving the range of motion for the upper body and core. The Flex Wheel is simple to use and requires little experience beforehand. The turning movement has low-level resistance achievable for users at all levels. The ergonomically designed handles allow for natural wrist rotations and give the user the opportunity to do exercises from multiple positions. The wheel will train shoulder and upper body mobility.The twist can be used for rotational flexibility of the torso. For the lower limbs, the user can add balance as part of the training by standing on one leg and closing their eyes while doing the exercises.
Photos
Photos
Photos

The products might not be exactly as shown

13+ Years2 Users

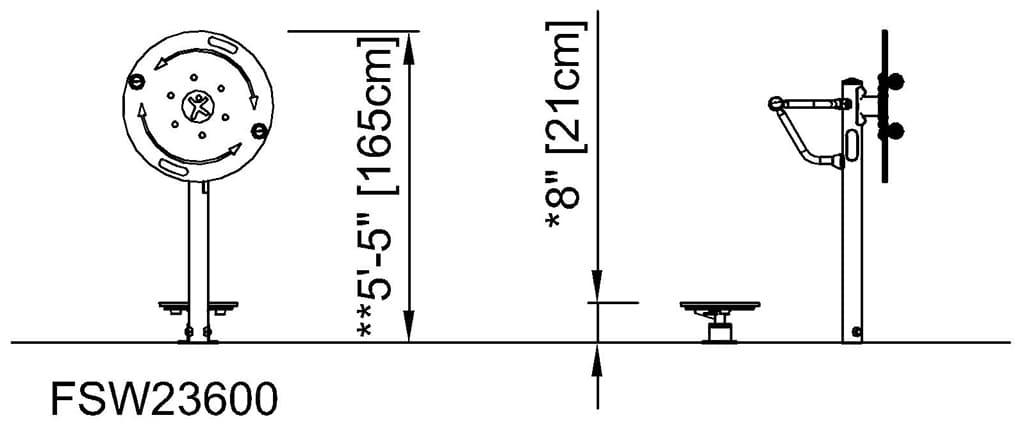

Side View (image)

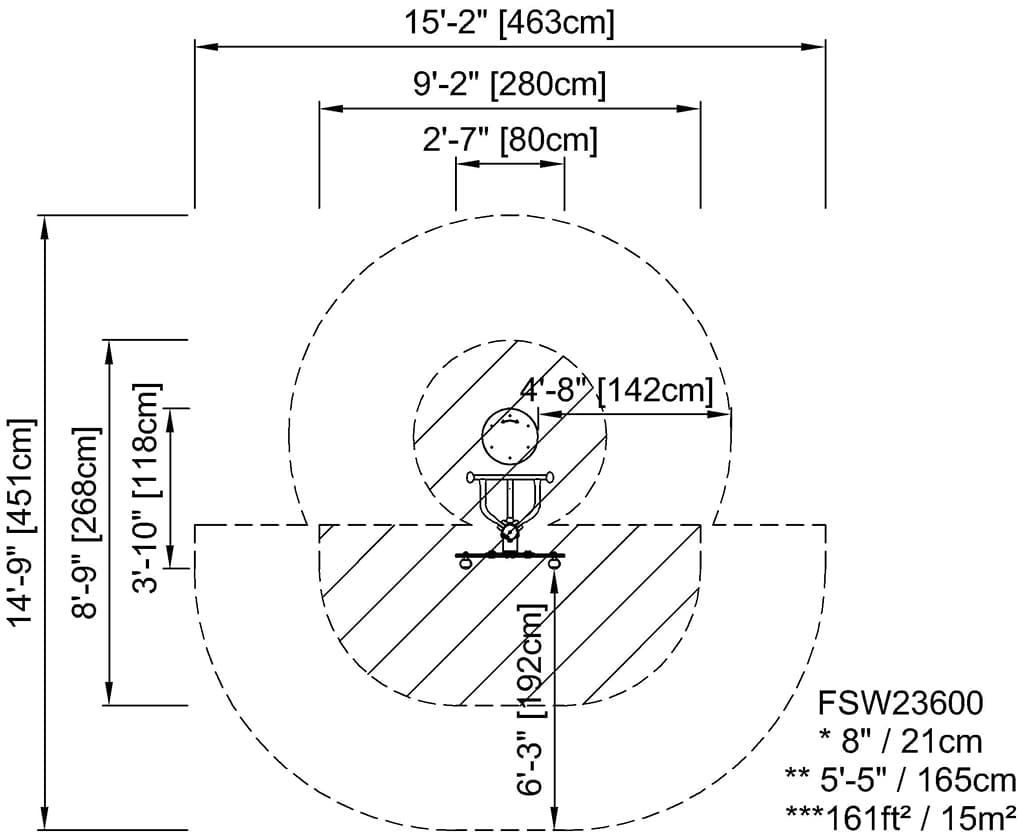

Foot Print (image)

Length

2' 8"

Width

3' 10"

Height

5' 5"

Specifications

This station is focused on mobility and improving the range of motion for the upper body and core. The Flex Wheel is simple to use and requires little experience beforehand. The turning movement has low-level resistance achievable for users at all levels. The ergonomically designed handles allow for natural wrist rotations and give the user the opportunity to do exercises from multiple positions. The wheel will train shoulder and upper body mobility.The twist can be used for rotational flexibility of the torso. For the lower limbs, the user can add balance as part of the training by standing on one leg and closing their eyes while doing the exercises.

This product, Twist & Flex Wheel (FSW236), is provided by KOMPAN United States.

Key Features

FSW_Twist bearing

The bearings used in the Twist are slide bearings made of polyoxymethylene, a material that has all the properties needed for a strong bearing: extremely low wear, high mechanical strength, Low moisture absorption and High abrasion resistance.

FSW_Ekogrip top plate

The ø414mm top plate is made from 15mm Ekogrip®, a 15mm PE plate with a 3mm top-layer of thermoplastic rubber with non-skid effect. The height is 217mm and the range of motion is +/- 90˚, with a EPDM rubber stop at each end.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Bearing house

The bearing house is made from hot dip galvanised steel. The bearing shaft is made from stainless steel AISI304. The bearing itself is made from Polyoxymethylene (POM), an engineering thermoplastic with a high stiffness, low friction, and excellent dimensional stability.

FSW_Ball grips

The ball grips are ø80mm and are made from black, vacuum formed polycarbonate (PC). Polycarbonate is extremely strong and can withstand a very high impact.

FSW_EcoCore wheel

The ø800x19mm wheel is made from HDPE EcoCore™ plate. EcoCore™ is a highly durable, ecofriendly material, which is not only recyclable after use, but is also made of +95% recycled post-consumer material from e.g., food packing waste in both core and colorful outer layer.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW23600-0902

170.53

Total CO₂ emission (kg CO₂e)

2.76

CO₂e/kg (kg CO₂e/kg)

52.68%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
