FSW208
Pull-Up Station
Age Group
13+ Years
Capacity
2
Product category
FSW208
Pull-Up Station
Specifications
Pull-Up Station
The Pull-Up Bar is made from solid steel and has a diameter of 1.26 inches. This is an ideal size for both men and women to have a good grip. The vertical ladder can be used like a wall, offering a spot for varied difficulty levels for handstand push-ups, Bulgarian split squats and push-ups. Additionally, the vertical ladder is perfect for stretching and offers a step up for reaching the pull-up bar.
This product, Pull-Up Station (FSW208), is provided by KOMPAN United States.
Length
9' 0"
Width
4"

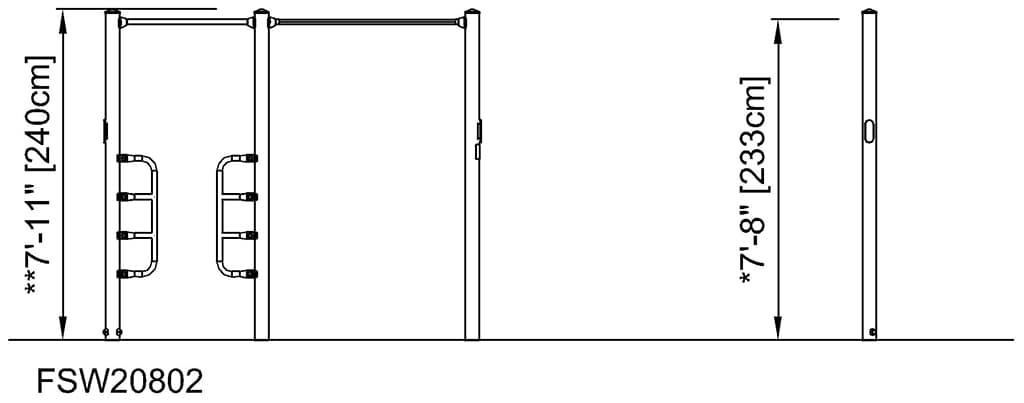

Height
7' 10"

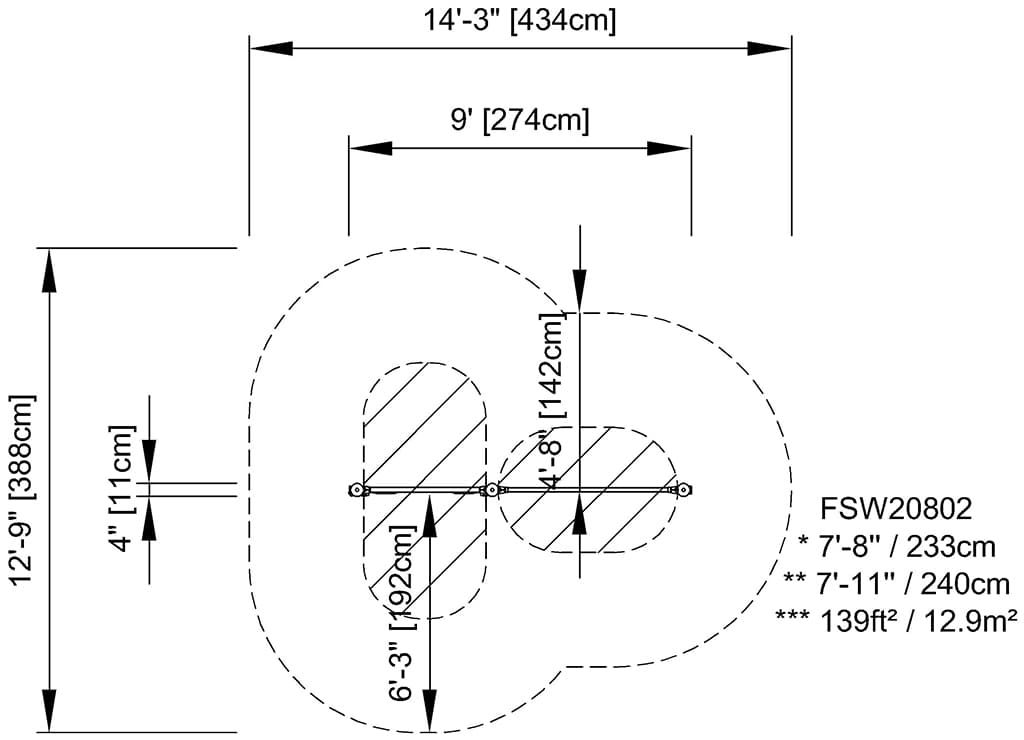

Safety Zone Length
14' 3"
Safety Zone Width
12' 9"
Age Group
13+ Years
Capacity
2
Inclusive
Yes
Product category
ESSENTIALS
Product line
Essentials Street Workout
Product Highlights
Quality that lasts
Post are made of 101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
All bars intended for pull ups are made of solid, ø32mm x 138 m, hot dip galvanized, S235JR steel bars. This diameter gives the right grip for everyone.
All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.
The handles offer 4 different heights to place the hands or feet; 48cm, 76cm, 104cm and 132cm, creating the opportunity to scale the difficulty of the exercise.
Push Up Incline Press
Push Up Easy Incline Press
Pull Up
The KOMPAN Fitness Institute is a global network of sports and fitness experts and professionals who share knowledge, measure trends and conduct research. The network maintains strategic partnerships with all sorts of local parties, including universities, researchers, scientists and fitness experts and adds to the knowledge of effective sport and fitness at large.This knowledge permeates how we develop our outdoor fitness equipment for outdoor use and create inspiring outdoor fitness sites for all ages and abilities.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FSW20802-0901
202.99
Total CO₂ emission (kg CO₂e)
2.93
CO₂e/kg (kg CO₂e/kg)
69.32%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
