FSW208

Pull Up Station

Try our AR app

Pull Up Station

Colour ORANGE

The vertical ladder can be used as a wall, to influence difficulty levels of various exercises such as hand stand push ups, Bulgarian split squats, and push ups. Additionally, the vertical ladder is perfect for stretching and offers a step up for reaching the pull up bar. The Pull Up Bar is made from solid steel and has a diameter of 32 mm. An ideal size for both men and women to have a good grip. See more Outdoor Pull Up Bars here.
Photos
Photos

Photos are for conceptual purpose only. Deviations can occur.

Quality that lasts

FSW_Post

The post is made of Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated which is a great protection solution for all climate conditions.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Pull up bars 32mm

All bars intended for pull ups are made of solid, ø32mm x 138m, hot-dip galvanised, S235JR steel bars. This diameter gives the right grip for all users.

General_Fitness standards

All of KOMPAN's fitness products are compliant with AS 4685:2021, ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed to the specified load of 78kg per user. A product intended for one user is loaded with 420kg.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.

FSW_Pull up bars distance

The pull up bar is mounted at the height of 233cm with a clean workout space underneath, next to a vertical ladder which has six horizontal bars. The spaces between the bars are 38cm.

13+ Years2 Users

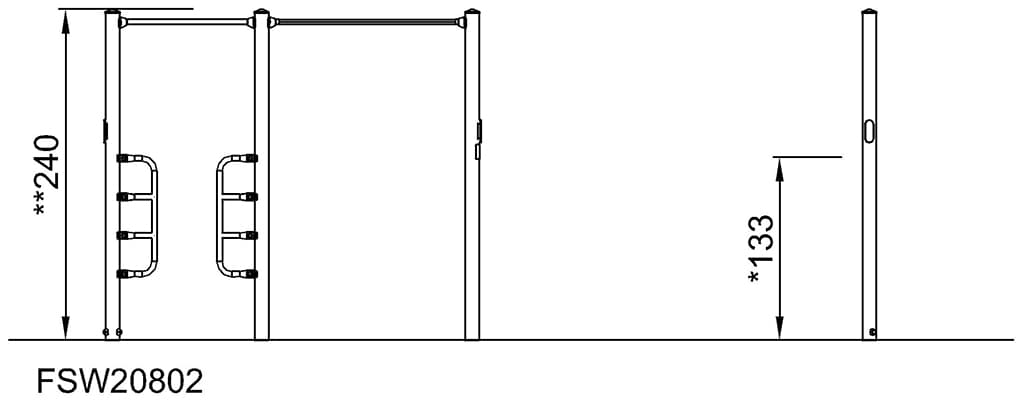

Side View (image)

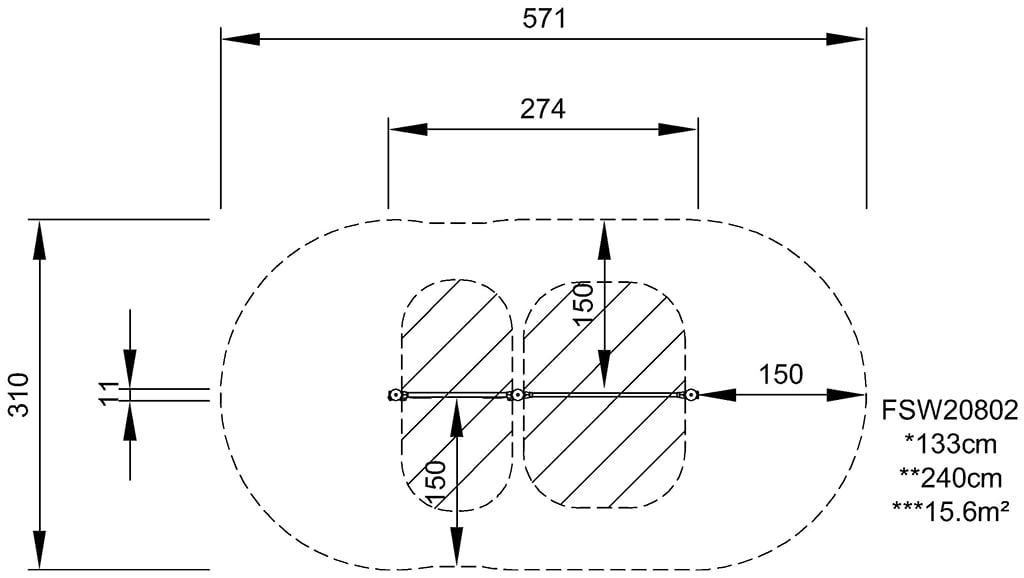

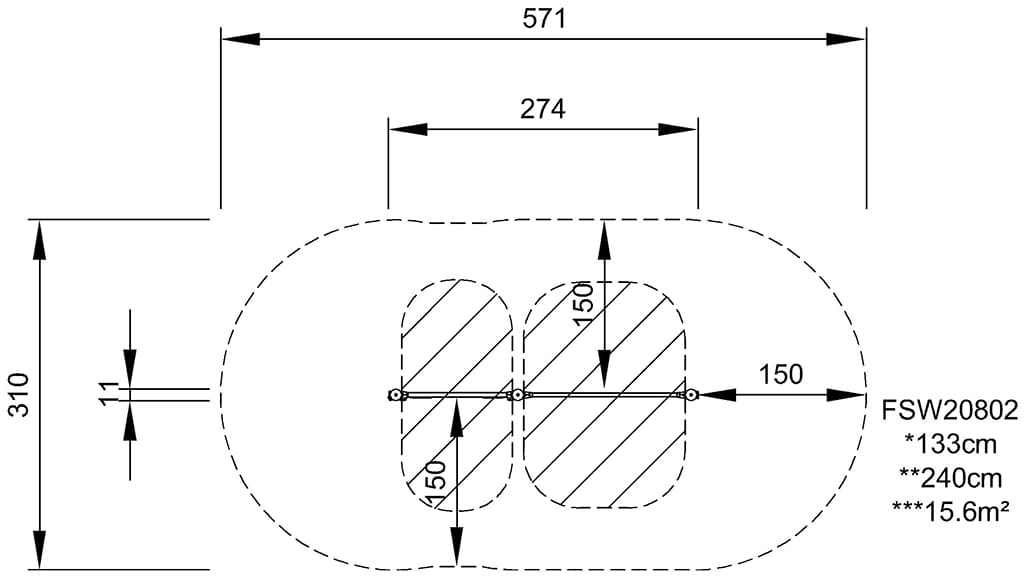

Foot Print (image)

Length

274 cm

Width

12 cm

Height

240 cm

Specifications

The vertical ladder can be used as a wall, to influence difficulty levels of various exercises such as hand stand push ups, Bulgarian split squats, and push ups. Additionally, the vertical ladder is perfect for stretching and offers a step up for reaching the pull up bar. The Pull Up Bar is made from solid steel and has a diameter of 32 mm. An ideal size for both men and women to have a good grip. See more Outdoor Pull Up Bars here.

This product, Pull Up Station (FSW208), is provided by KOMPAN Australia.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

FSW20801-0901

242.1

Total CO₂ emission (kg CO₂e)

3.49

CO₂e/kg (kg CO₂e/kg)

48.2%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

Learn more
