FRE600202
MUSA, 39 x 79 ft, Steel/HDPE, 16 ft Walls
This MUSA (Multi-use Sports Area) is designed to support a wide variety of ball games and group play in one large, inclusive space. With an overall size of 39 x 79 ft, 16 ft walls, and a steel and HDPE construction, it is built for active, high-use play areas. The layout includes 2 goals and 2 basketball hoops. Sized at 9'10'' x 6'7'', the goals align with FIFA Futsal and IHF Handball regulations, while the basketball hoops are placed at the official NBA height of 10 ft and have an official NBA diameter of 18 in. Together, these elements make the unit a strong fit for multi-sport play areas and support everything from casual shooting games to more structured team play. HDPE wall panels add another layer to the experience. Their fully flat interior surface creates a reliable bounce response, making them an active part of the game. This makes play faster, more dynamic, and more engaging while helping players develop their timing, ball control, and game awareness. Built for intensive outdoor use, the HDPE wall panels are made from CircularHDPE, a highly durable material. The core is produced from 100% recycled material, measures 0.59 in thick, and represents 80% of the total panel material. CircularHDPE is also recyclable after use, supporting a more sustainable material profile.
The products might not be exactly as shown

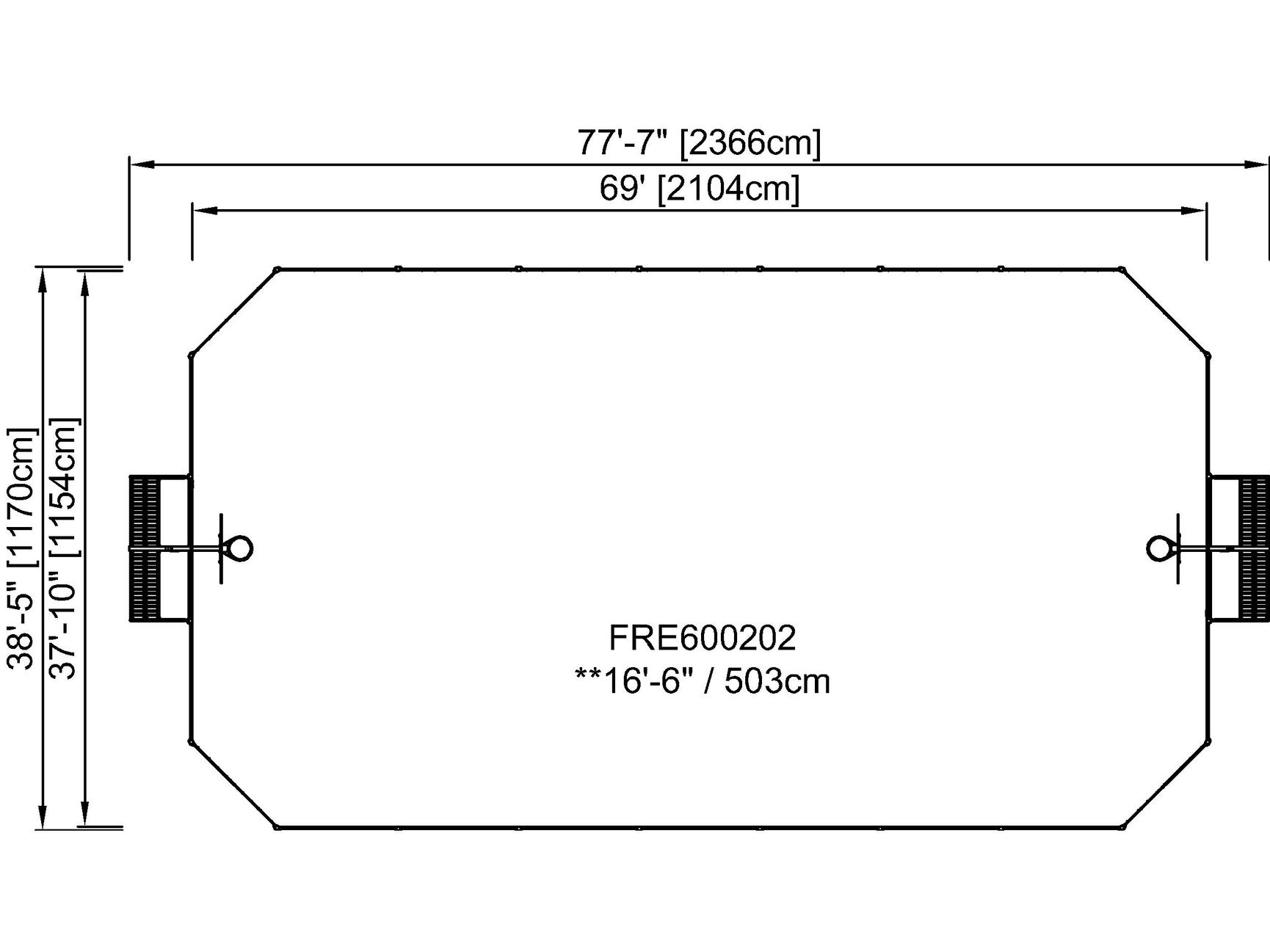

Length
78' 2"
Width
45' 7"

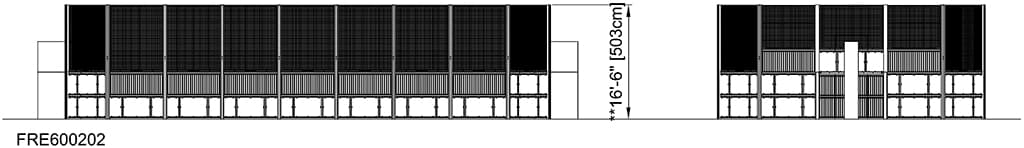

Height
16' 6"
Specifications
This MUSA (Multi-use Sports Area) is designed to support a wide variety of ball games and group play in one large, inclusive space. With an overall size of 39 x 79 ft, 16 ft walls, and a steel and HDPE construction, it is built for active, high-use play areas. The layout includes 2 goals and 2 basketball hoops. Sized at 9'10'' x 6'7'', the goals align with FIFA Futsal and IHF Handball regulations, while the basketball hoops are placed at the official NBA height of 10 ft and have an official NBA diameter of 18 in. Together, these elements make the unit a strong fit for multi-sport play areas and support everything from casual shooting games to more structured team play. HDPE wall panels add another layer to the experience. Their fully flat interior surface creates a reliable bounce response, making them an active part of the game. This makes play faster, more dynamic, and more engaging while helping players develop their timing, ball control, and game awareness. Built for intensive outdoor use, the HDPE wall panels are made from CircularHDPE, a highly durable material. The core is produced from 100% recycled material, measures 0.59 in thick, and represents 80% of the total panel material. CircularHDPE is also recyclable after use, supporting a more sustainable material profile.
This product, MUSA, 39 x 79 ft, Steel/HDPE, 16 ft Walls (FRE600202), is provided by KOMPAN United States.
Key Features
The HDPE panels are standard available in Night Sky Blue, Grey and Orange but multiple colors can be requested. To increase the design and play value you can also choose HDPE panels with patterns or logo's engraved.
All steel components are manufactured from carbon steel, welding's according EN ISO 5817 & Hot dip galvanised (HDG) according to ISO1461. This process ensures good protection in all circumstances.
The net is made of a Ø4mm black polypropylene, better known as Nylon, with a mesh size of 45 x 45mm and reaches till 5m high. The nets will keep all balls in the MUGA and retains the transparency.
Each panel has 4 Thermoplastic Vulcanizates plugs connecting the panels to the posts. The plugs reduce the vibration and therefore reduce the noise level. The plugs will also simplify installation as the come with pre-assembled nuts.
KOMPAN Multi Use Games Areas (MUGA) are designed as a flexible system. With the configurator you can easily change size, height, panels, entrances and goals to create a MUGA that fits your environment, budget and purpose.
The HDPE panels are connected with M8 stainless steel bolts to 42.5 x 40 x 3mm welded flanges. These connections are not visible from the inside and create a strong and safe connection.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FRE600202-0901
16776.96
Total CO₂ emission (kg CO₂e)
3.64
CO₂e/kg (kg CO₂e/kg)
60.97%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
