FAZ103

Pull Up Bars Pro

QR Code for Kompan EN/INT frontpage

Try our AR-app

Pull Up Bars Pro

Color ORANGE

Loading Designer
The big, organically shaped structures will make people curious and invite them to do a workout with the pull up bars, an item most people will recognize from indoor fitness. For inspiration and guidance they can look at big signs which display the 14 basic exercises and link to the KOMPAN Sport & Fitness App. Pull ups are an essential part of a Cross Training workout, a very effective form of exercise that combines the best activities of various sports, resulting in a diverse and complete training sessions. The Pull Up bar offers a range of scalable exercises, featuring multiple handles, i.e. rotating gym rings, balls and bars with varying diameters. By placing the feet on the horizontal bars beginners can decrease their bodyweight during pull ups and work their way up to advanced training.
Photos
Photos
Photos

The products might not be exactly as shown

13+ Years3 Users

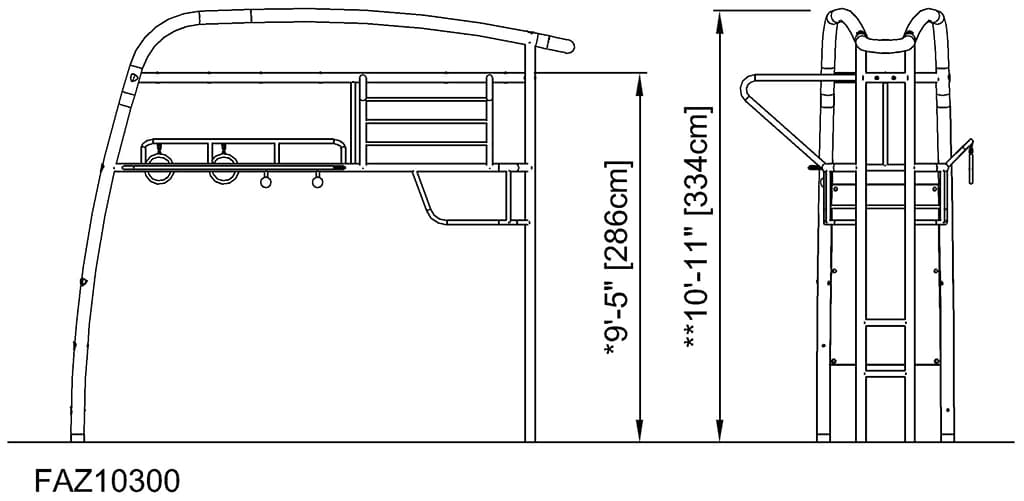

Side View (image)
Foot Print (image)

Length

12' 10"

Width

5' 11"

Height

10' 12"

Specifications

The big, organically shaped structures will make people curious and invite them to do a workout with the pull up bars, an item most people will recognize from indoor fitness. For inspiration and guidance they can look at big signs which display the 14 basic exercises and link to the KOMPAN Sport & Fitness App. Pull ups are an essential part of a Cross Training workout, a very effective form of exercise that combines the best activities of various sports, resulting in a diverse and complete training sessions. The Pull Up bar offers a range of scalable exercises, featuring multiple handles, i.e. rotating gym rings, balls and bars with varying diameters. By placing the feet on the horizontal bars beginners can decrease their bodyweight during pull ups and work their way up to advanced training.

This product, Pull Up Bars Pro (FAZ103), is provided by KOMPAN United States.

Key Features

FAZ_Polyrea coating

The Polyurea Coating, used on all grips, is highly durable against wear and tear, offers isolation and simultaneously gives users an outstanding grip during their workout.

FAZ_Signs

The big instruction signs are made as a sandwich construction consisting of 2 x 6mm polycarbonate sheets with clear instructions printed on the inside of the panels. This gives a vandalism proof construction.

FAZ_Mutiple pull up station

The Pull Up station accommodates multiple handles, i.e. 2 rotating gym rings, 2 grip balls, and multiple horizontal bars at heights between 170 and 267cm with three different diameters, ø25 x 3.0mm, ø33.7 x 3.0mm and ø48.3 x 4.0mm.

General_Fitness standards

All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.

FAZ_Main posts

For ensuring the integrity of the main frame, the orange colored main posts are made of ø101.6 x 3mm steel posts, which are hot dip galvanized and powder coated Orange (RAL2010). The supportive posts receive the same surface treatment and are made of ø76.1 x 3.6mm steel tubes, powder coated grey (RAL7012).

FAZ_Carbon steel components

All Steel components are made from carbon steel, with a hot-dip galvanized surface according to ISO1461, and a powder coating corrosion class C3 according to ISO12944-2. Lead content for surfaces is below 90ppm, and below 100ppm for base material.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FAZ10300-0900

932.87

Total CO₂ emission (kg CO₂e)

2.87

CO₂e/kg (kg CO₂e/kg)

46.45%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
