CRP811501

Ocean Dome

QR Code for Kompan EN/INT frontpage

Try our AR-app

Ocean Dome

Color MEDIUM GREEN

Loading Designer
Huge, blue net-waves invite the children for a climbing expedition in a vast, bouncy, 3D net structure. Climbing to the top is fun due to the variation of routes and ways to climb. Leveled play, from the easy entry embankment net to agile climbs through triangular plates, invites all to play. Rattling sound elements add sensory play. The rubber wave, play shell, and rubbery yellow seats offer versatile places for social interaction and bouncy breaks. This rich variety of climbing, bouncing, rocking, and swaying creates immense holding power for all abilities and a wide age span. The climbing variety intensely trains the child's muscle and motor skills. The transparency of the nets makes social interaction possible throughout, adding to social skills such as cooperation. Sensory elements add to children's thinking skills.

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Curly climber

Physical

coordination and proprioception are supported when placing arms and legs correctly for going down. Sense of balance when rotating. Arm muscles for holding tight.

Social-Emotional

empathy stimulated by turn-taking.

Cognitive

logical thinking when placing arms and legs right for rotating downward.

Open triangle plate

Physical

arm, leg and core muscles are developed when climbing up/through. Proprioception and spatial awareness are also supported, both motor skills that help navigating the body in space.

Social-Emotional

swaying, bouncy seat for a break, inviting socializing and turn-taking.

Yellow rubber discs

Physical

children develop cross-body coordination and muscle strength when stepping onto the disc and climbing the rope. Their sense of balance is trained when swaying gently. The sense of balance is important for instance for being able to sit still.

Social-Emotional

socializing and turn-taking when deciding who should sit here.

Versatile climbing nets

Physical

climbing and crawling upwards, sideways and downwards develops cross coordination and muscle strength of arms, legs and core.

Social-Emotional

turn-taking and helping others.

Cognitive

thinking skills such as logical and creative thinking are supported when making routes.

Rubber wave

Physical

helps to develop cross-body coordination, balance, and muscle strength when climbing up or balancing down.

Social-Emotional

easy entry and bouncy breaks for socializing. Usable for a wide age span.

Embankment nets

Physical

space for varied body positions: lying, seated, standing, crawling, climbing, all stimulating coordination, balance and muscle strength. Usable for all abilities and ages.

Social-Emotional

easy entry for all and lots of space for socializing and bouncy breaks.

Play shell

Physical

the swaying movement stimulates the sense of balance, necessary to sit still on a chair.

Social-Emotional

meeting, taking a break and turn-taking are supported, skills necessary to learn how to avoid conflicts.

5 - 12 Years58 Users

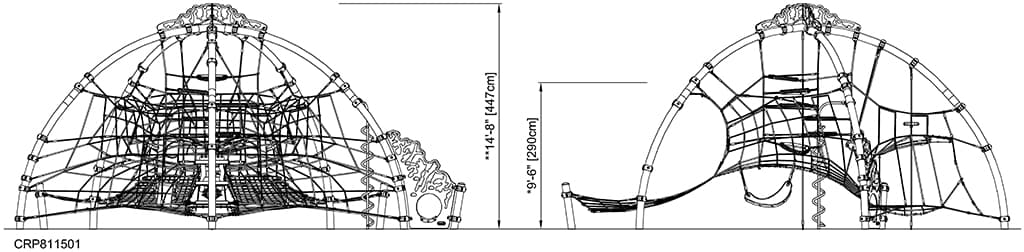

Side View (image)

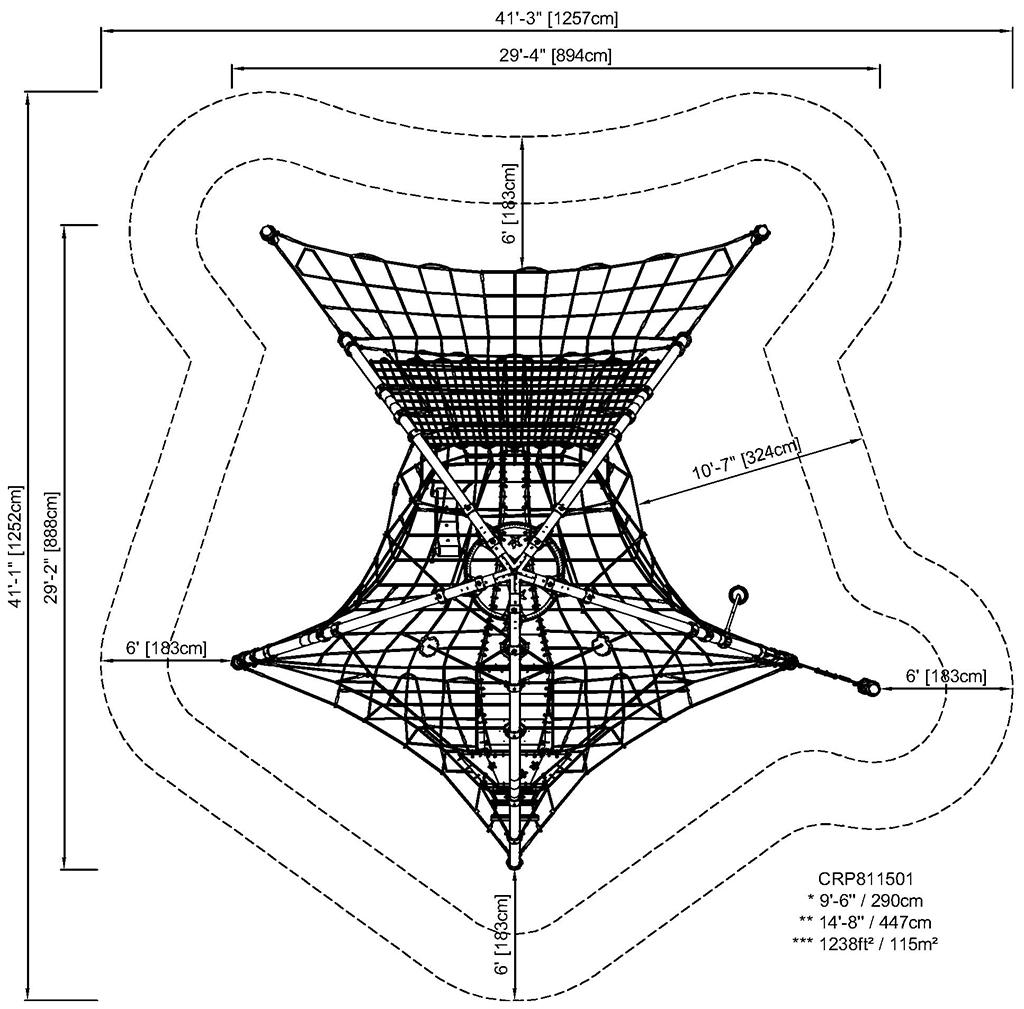

Foot Print (image)

Length

29' 4"

Width

29' 2"

Height

14' 8"

Specifications

Huge, blue net-waves invite the children for a climbing expedition in a vast, bouncy, 3D net structure. Climbing to the top is fun due to the variation of routes and ways to climb. Leveled play, from the easy entry embankment net to agile climbs through triangular plates, invites all to play. Rattling sound elements add sensory play. The rubber wave, play shell, and rubbery yellow seats offer versatile places for social interaction and bouncy breaks. This rich variety of climbing, bouncing, rocking, and swaying creates immense holding power for all abilities and a wide age span. The climbing variety intensely trains the child's muscle and motor skills. The transparency of the nets makes social interaction possible throughout, adding to social skills such as cooperation. Sensory elements add to children's thinking skills.

This product, Ocean Dome (CRP811501), is provided by KOMPAN United States.

Key Features

Pes Ropes

Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made of +95% Post-consumer materials and is inductively melted onto each strand to obtain excellent wear and tear resistance.

EcoCore Panels 19mm

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of material produced from +95% recycled post-consumer material from food packing waste.

Corocord Membrane 8mm

Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armoring made of woven polyester. The armoring and the two surface layers result in a total thickness of 8mm.

Molded PE Components

The large components are made of 100% recyclable PE made from 33% post consumer materials. Molded in one piece with minimum 5mm wall thickness to ensure high durability in all climates around the world.

COR_S-clamps

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.

Corocord CRP Smart Clamps

The Corocord Smart Clamps are carefully designed to ensure superior flexibility in high-quality aluminum material. The smart clamps are attached around the post with four steel bolts. Unused attachment points are closed with PA caps.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

CRP811501-0404

4842.8

Total CO₂ emission (kg CO₂e)

3.74

CO₂e/kg (kg CO₂e/kg)

43.2%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

See other similar products

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
