PCX5101

High Line Double Mega Deck Combination

Try our AR-app

High Line Double Mega Deck Combination

Color LIME GREEN

The Double Mega Deck Combination with ramps is a truly inclusive structure. It offers a great variety of activities. On the ground level is a desk for social play, a hammock where the child can have a break while still being a part of the play and a "Shape Finder" panel, stimulating children's thinking skills. Children love slides because they are exhilarating, fast and fun. The High Line structure offers many different slides from low, high, wide, narrow and curved. The variety makes sure everyone will be challenged or encouraged to challenge their individual abilities. Close to the slides are challenging access points, as the thrill-seeking and fun slides motivate children to climb up for another ride. The different accesses, like the climbing pole, overhead ladder, climbing wall, curly climber and rock climber stimulate children's cross coordination, muscle strength and balance.

Key Features

PCX_Steel components and posts

All steel components are made of high quality materials. The posts have an alloy with improved tensile and yield strength according to the NYCP material specification. The painted aluminum post caps are riveted to the top of the post.

PCX_Steel Panels

All panels and one-piece welded steel grids are made of low carbon steel and corrosion treated by hot dip galvanization or metallization with a minimum thickness according to NYCP material specification.

PCX_Decks

All decks are made of perforated low carbon steel plates supported by aluminum profiles with no unsupported area larger than four square feet. After metallization the decks are coated with a polyurea non-slip surface which provides extremely good wear and tear resistance.

PCX_SS activities

The stainless steel activities are made of high quality stainless steel. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.

PCX_Climbing grips

Climbing Grips are a KOMPAN customized design, based on professionally designed climbing grips for optimal play value. The base material is polyester.

PCX_Standard color combinations3

The products are designed in three different standard color combinations: Red and light blue, Light blue and lime green, Green and lime green. The layouts of the play structures can be customized through the KOMPAN Variant Team.

5 - 12 Years90 Users

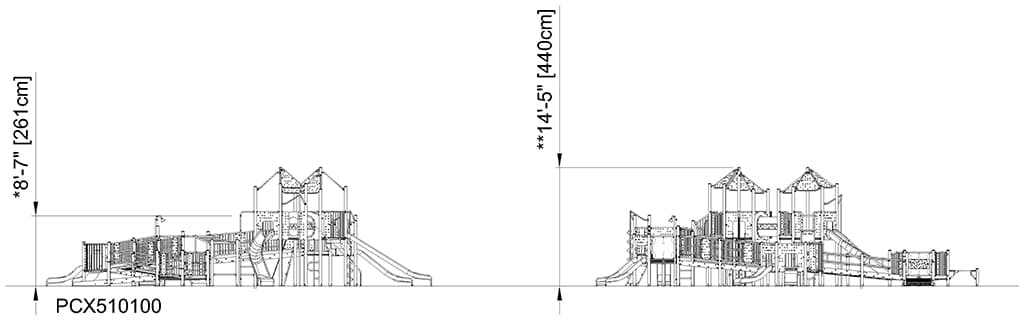

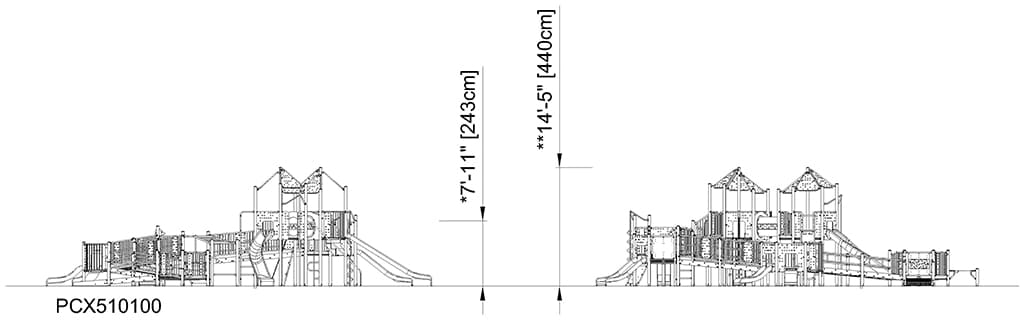

Side View (image)

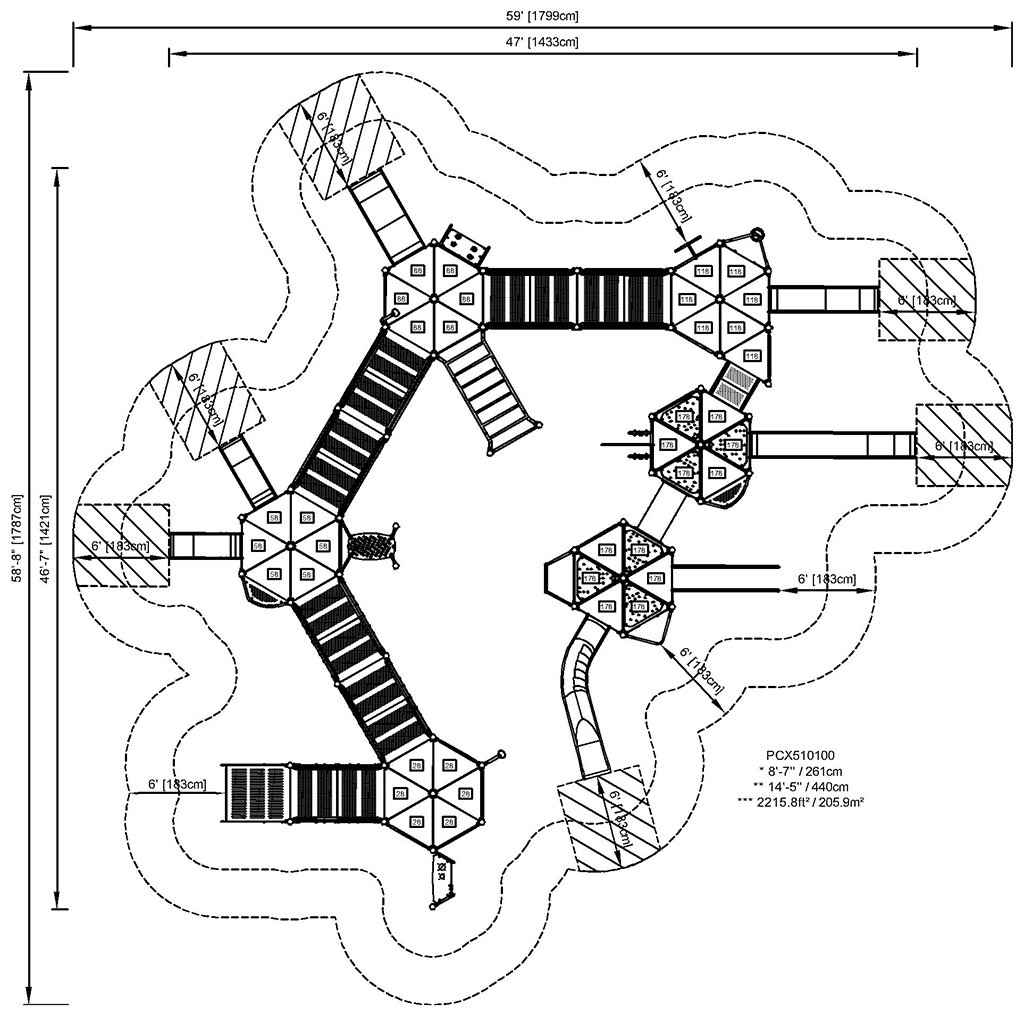

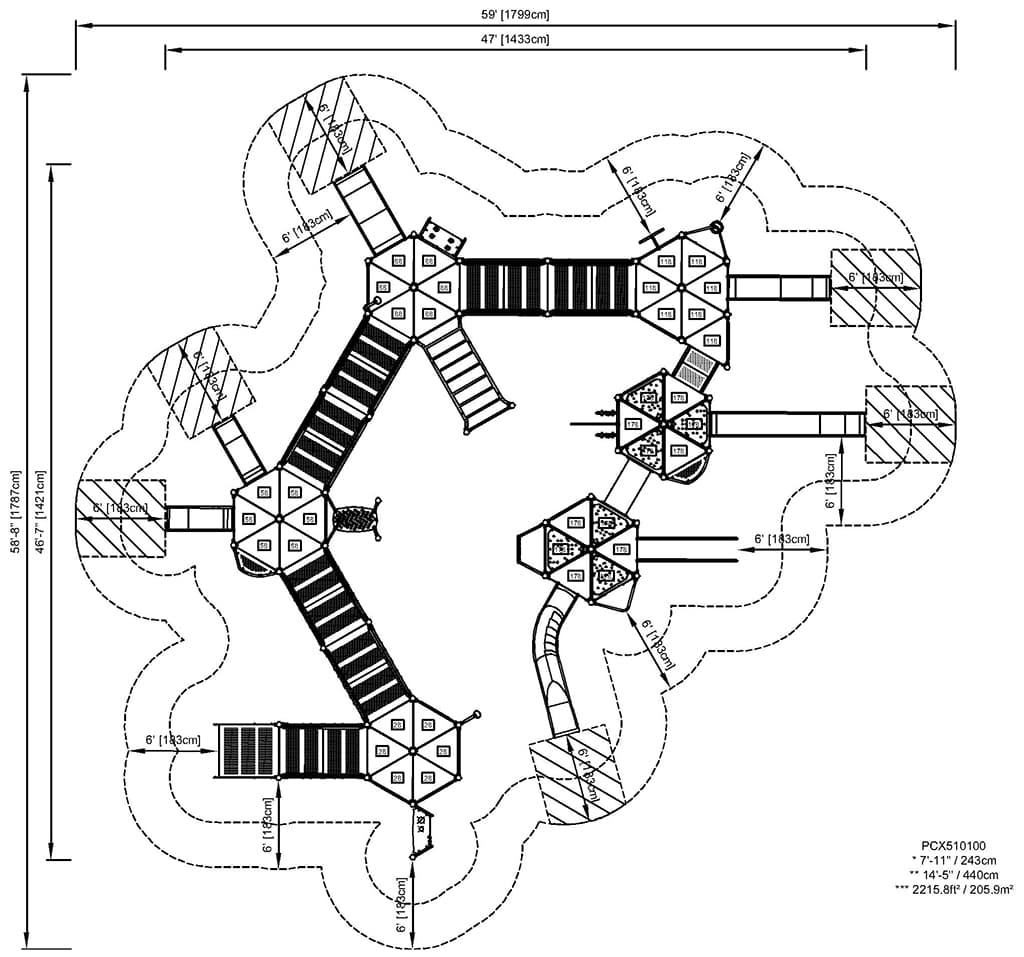

Foot Print (image)

Length

47'

Width

46' 8"

Height

14' 6"

Specifications

The Double Mega Deck Combination with ramps is a truly inclusive structure. It offers a great variety of activities. On the ground level is a desk for social play, a hammock where the child can have a break while still being a part of the play and a "Shape Finder" panel, stimulating children's thinking skills. Children love slides because they are exhilarating, fast and fun. The High Line structure offers many different slides from low, high, wide, narrow and curved. The variety makes sure everyone will be challenged or encouraged to challenge their individual abilities. Close to the slides are challenging access points, as the thrill-seeking and fun slides motivate children to climb up for another ride. The different accesses, like the climbing pole, overhead ladder, climbing wall, curly climber and rock climber stimulate children's cross coordination, muscle strength and balance.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCX510100-0901

15399.8

Total CO₂ emission (kg CO₂e)

3.55

CO₂e/kg (kg CO₂e/kg)

45.9%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more
