PCT210631

Giant L & Side Tower

Try our AR-app

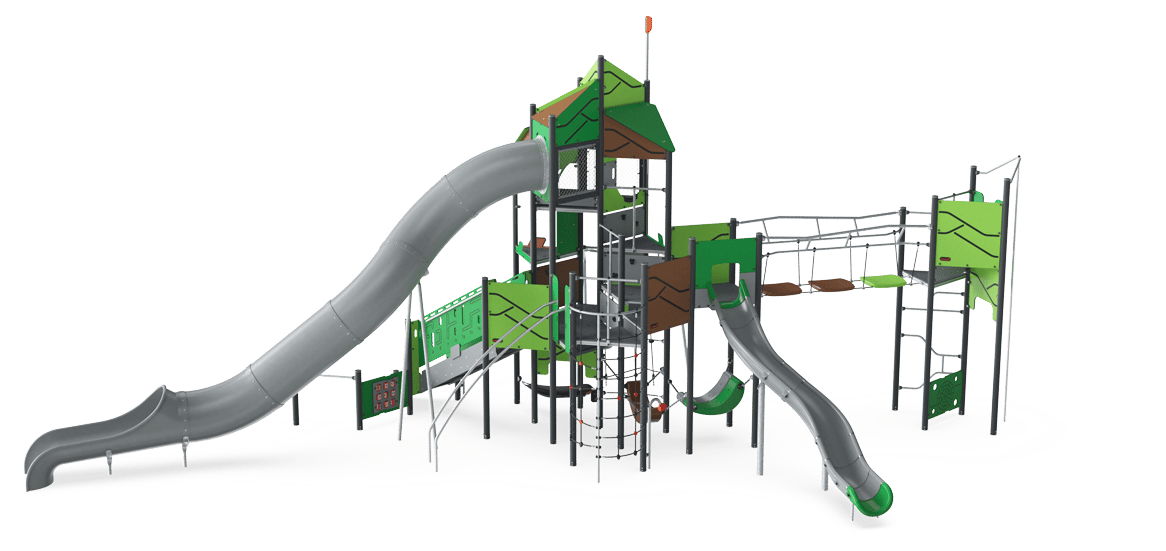

Giant L & Side Tower

Color LIME GREEN

WOW! The Giant L's high climb-balance-slide-meet features attract children from afar. The Giant is a unique variety of speedy sliding and gliding, gentle swaying, and not least, challenging climbing activities. The see through tower is a meandering framework for climbing that promotes thrill and cooperation. This guarantees vigorous play over and over. The open and closed slide, the fireman's pole, and banister bars offer fast rides, tons of fun, and stimulating social-emotional skills, such as self-regulation and empathy. The balance bridge and pipe climber add thrill to the open towers. They stimulate cross-coordination and the senses of balance and space. Play shells, talking tube, hammock, and tic-tac-toe create an inviting ground level space that adds opportunities for all to make friends in play.
Photos
Photos
Photos

The products might not be exactly as shown

Key Features

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.

Play system molded decks

All decks are supported by uniquely designed low-carbon aluminum profiles with multiple attachment options. The grey-colored molded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and texture surface.

PCT_HDG Posts

The main posts have an alloy with improved tensile and yield strength to ensure superior structural integrity of the high towers. The posts has hot dip galvanized base and powder coated top finish which ensure long lifetime.

PCT_Polycarbonate transparant panel

High-quality polycarbonate with a thickness of 15mm. The graphic prints are added by a unique multi-layer print process where the inner layer is the image and outer transparent layer functions as protection. Both PC panel and the water-based lacquer are UV stabilized to prevent fading.

PCT_Steel grid

Fully welded steel frame with 45° cross welded steel grid of round steel pins with a diameter of 4mm. The airflow panel contributes to the overall structural integrity of the GIANT towers.

PCT_Curved slides

Curved and straight tunnel slide of either PE or stainless-steel material and supported by muliple steel rods to a center steel post. The tunnel slides are designed with perfect curve and inclination for a playful ride.

5 - 12 Years50 Users

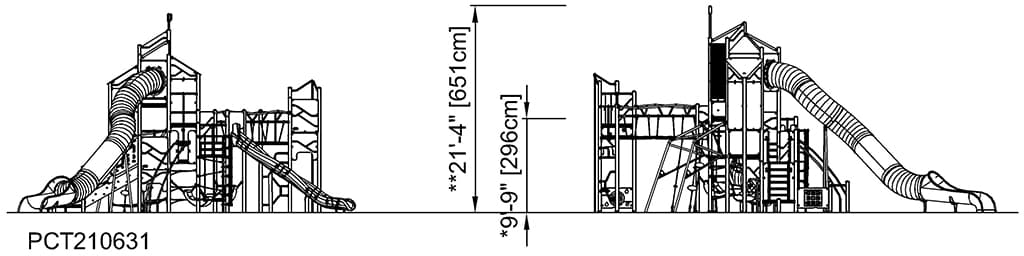

Side View (image)

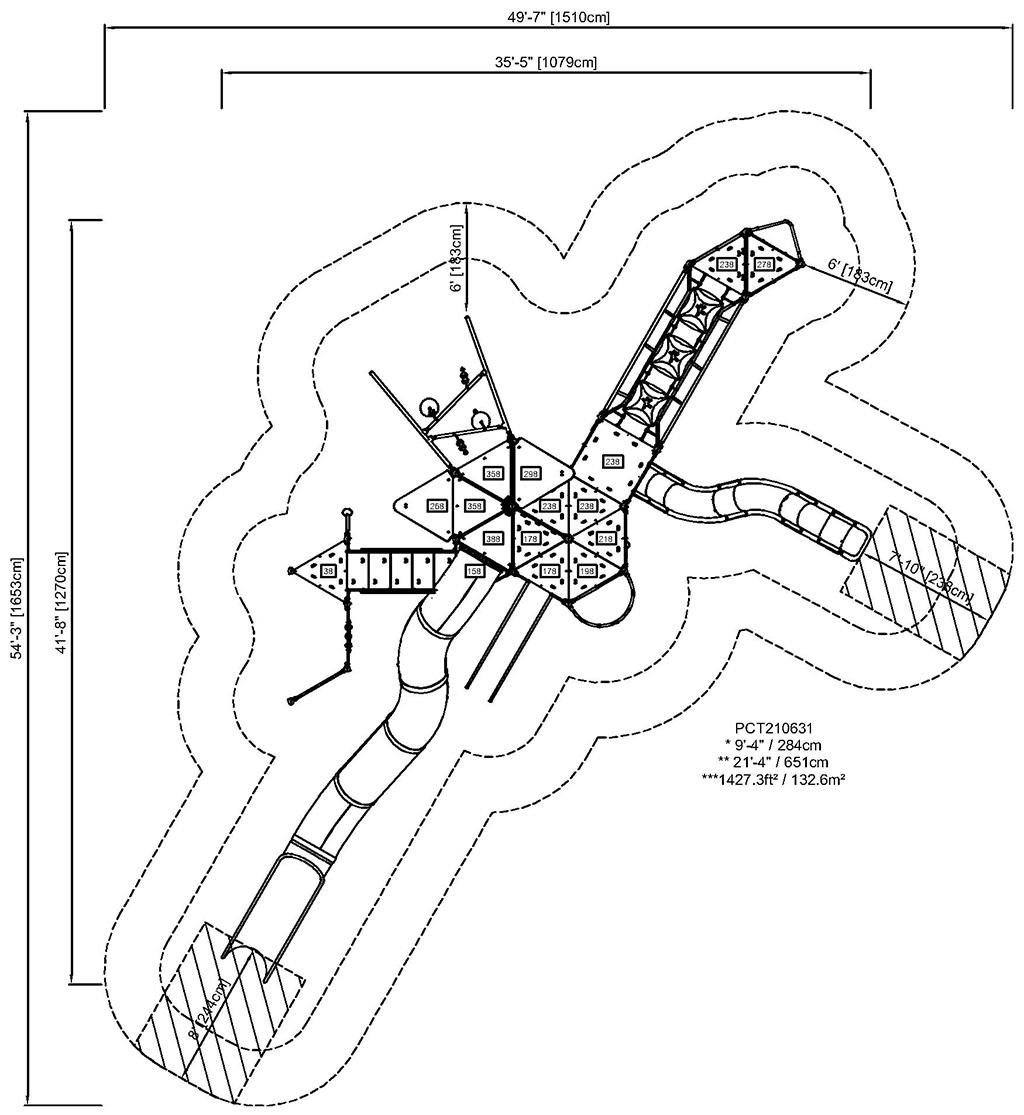

Foot Print (image)

Length

35' 5"

Width

41' 8"

Height

21' 4"

Specifications

WOW! The Giant L's high climb-balance-slide-meet features attract children from afar. The Giant is a unique variety of speedy sliding and gliding, gentle swaying, and not least, challenging climbing activities. The see through tower is a meandering framework for climbing that promotes thrill and cooperation. This guarantees vigorous play over and over. The open and closed slide, the fireman's pole, and banister bars offer fast rides, tons of fun, and stimulating social-emotional skills, such as self-regulation and empathy. The balance bridge and pipe climber add thrill to the open towers. They stimulate cross-coordination and the senses of balance and space. Play shells, talking tube, hammock, and tic-tac-toe create an inviting ground level space that adds opportunities for all to make friends in play.

This product, Giant L & Side Tower (PCT210631), is provided by KOMPAN United States.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCT210631-0902

6596

Total CO₂ emission (kg CO₂e)

2.58

CO₂e/kg (kg CO₂e/kg)

49.3%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more
