PCT110931
Giant L Base
Age Group
5 - 12 Years
Capacity
36
Product category
PCT110931
Giant L Base
Specifications

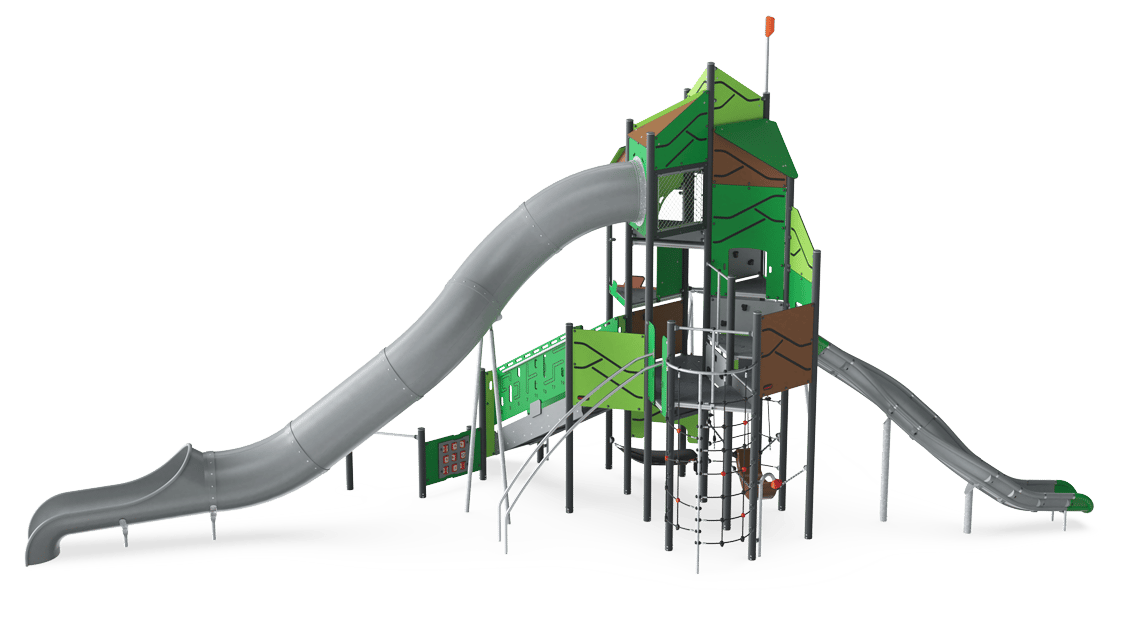

Giant L Base
WOW! The Giant L's sky-high climb-slide-meet features attract children hugely. The Giant has a unique variety of speedy sliding, gentle swaying, and challenging climbing activities. All these are in a see through tower, promoting thrill and social interaction. This ensures vigorous play, over and over. The slides are main attractions. The open and closed slides offer a thrilling ride. This is severe fun and stimulates social-emotional skills, such as self-regulation and empathy. The varied climbing activities add choice for all. The speedy stairs train cardio. The tower net and steep steps train cross-coordination, muscles, and the sense of space. Play shells, talking tube, hammock, and tic-tac-toe create an inviting ground level space for meeting and socializing, with rich opportunities for all to participate and make friends in play.
This product, Giant L Base (PCT110931), is provided by KOMPAN United States.

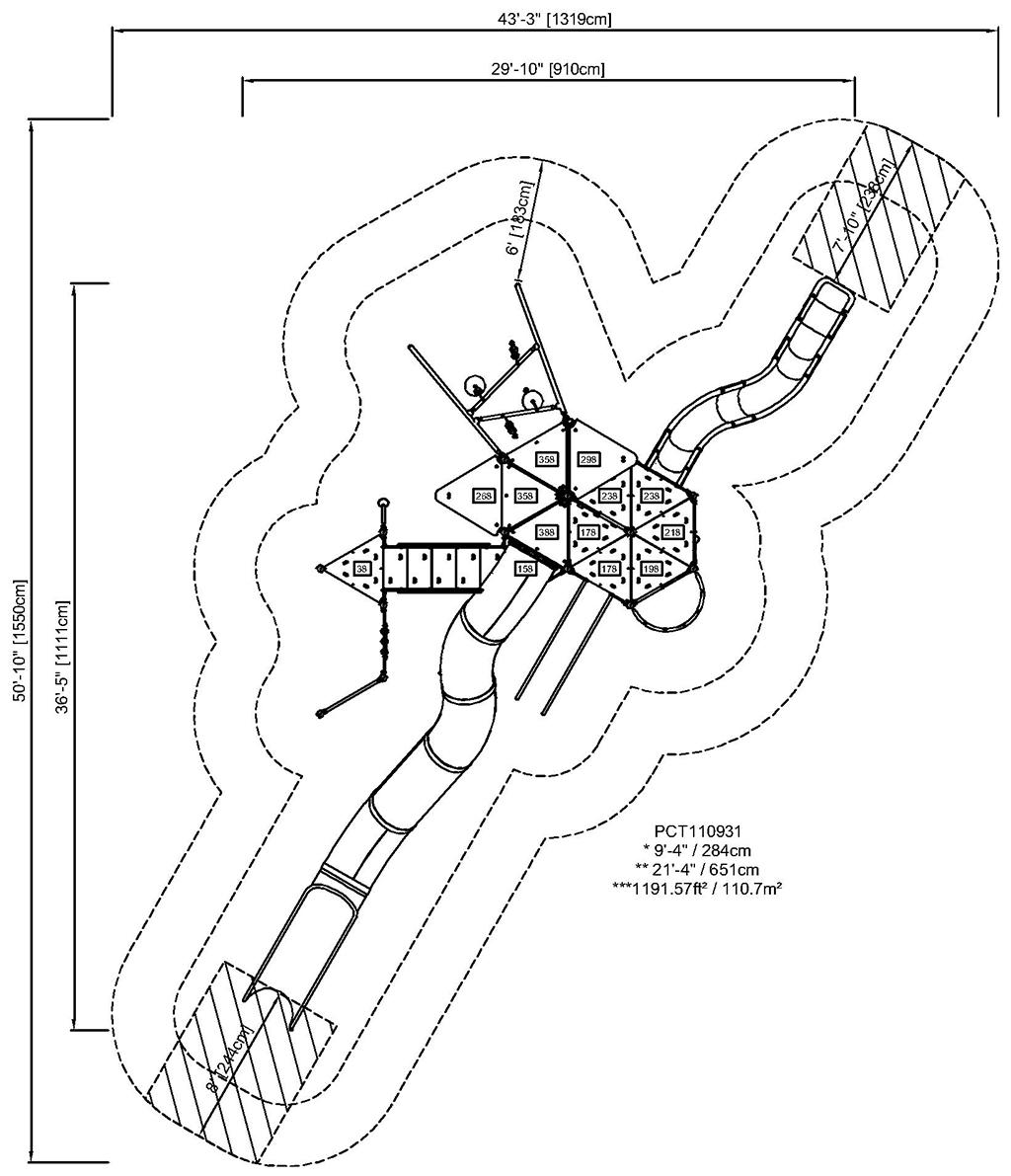

Length
29' 10"
Width
36' 5"

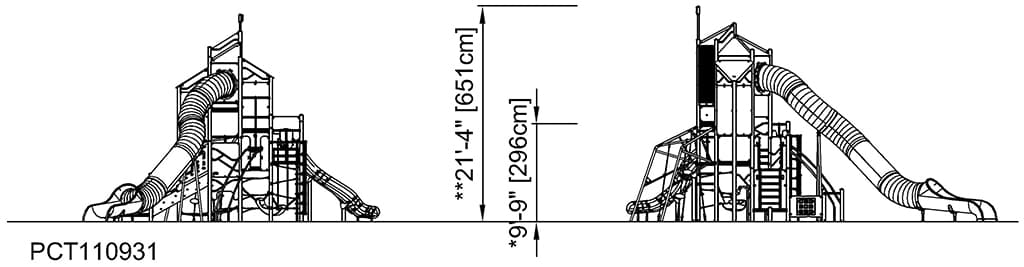

Height
21' 4"
Safety Zone Length
43' 3"
Safety Zone Width
50' 10"
Age Group
5 - 12 Years
Capacity
36
ADA
Elevated activities
11
Accessible elevated activities
8 (6 Required)
Accessible ground level activities
4 (4 Required)
Accessible ground level play types
3 (3 Required)
Product category
Classic Freestanding Play Equipment
Product line
Moments™ Themed Play
Product Highlights
Quality That Lasts
Panels of 19 mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post-consumer material from food packing waste.
All decks are supported by uniquely designed, low-carbon aluminum profiles with multiple attachment options. The grey-colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
The main posts have an alloy with improved tensile and yield strength to ensure superior structural integrity of the high towers. The posts has hot dip galvanized base and powder coated top finish which ensure long lifetime.
High-quality polycarbonate with a thickness of 15mm. The graphic prints are added by a unique multi-layer print process where the inner layer is the image and outer transparent layer functions as protection. Both PC panel and the water-based lacquer are UV stabilized to prevent fading.
Fully welded steel frame with 45° cross welded steel grid of round steel pins with a diameter of 4mm. The airflow panel contributes to the overall structural integrity of the GIANT towers.
Curved and straight tunnel slide of either PE or stainless-steel material and supported by muliple steel rods to a center steel post. The tunnel slides are designed with perfect curve and inclination for a playful ride.
Play Activities
Balance
5
Climb
17
Construct
3
Crawl
2
Glide
1
Hang in arms
1
Jump
1
Pull
1
Push
1
Rules play
1
Sensory
10
Slide
2
Socialize
13
Sway
2
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
PCT110931-0902
8827.14
Total CO₂ emission (kg CO₂e)
4.17
CO₂e/kg (kg CO₂e/kg)
56.26%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
