Cableway Start Platform

QR Code for Kompan EN/INT frontpage

Try our AR-app

Cableway Start Platform

Color ANTHRACITE GREY

Loading Designer

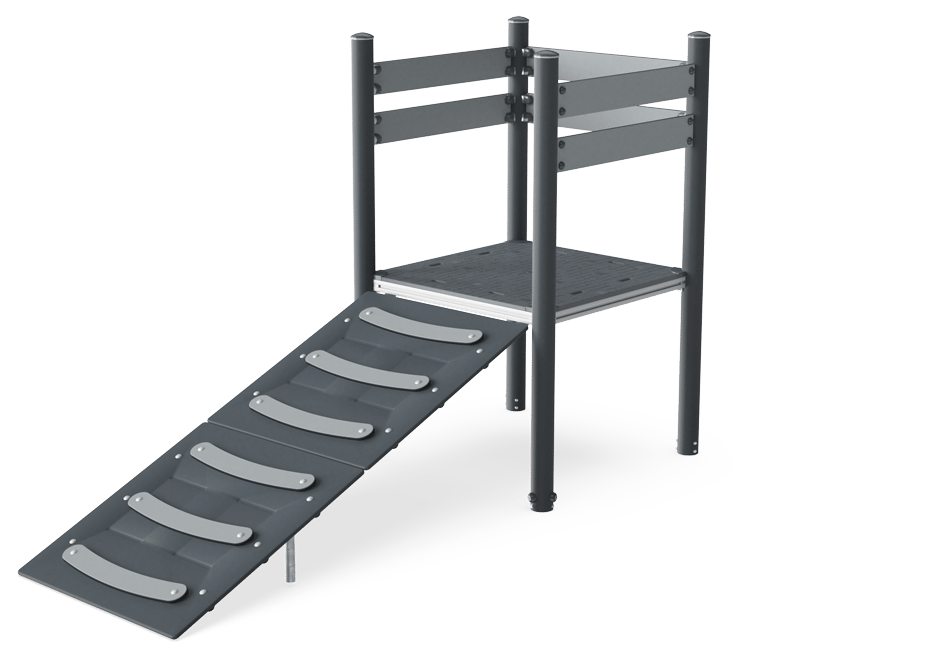

Large elevated square start platform with capacity for many waiting users. The long run-up ramp ensures easy access to the start area when returning the seat to the following user. The platform is designed to be used for cableways installed in flat surroundings.

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Platform

Social-Emotional

Important life skills like courage, self-confidence, consideration and turn-taking are built.

Slope

Physical

inclined crawling or walking up or down develops the sense of balance and cross coordination.

Social-Emotional

the incline makes climbing feel safer, especially for younger children.

5 - 12 Years5 - 12 Years

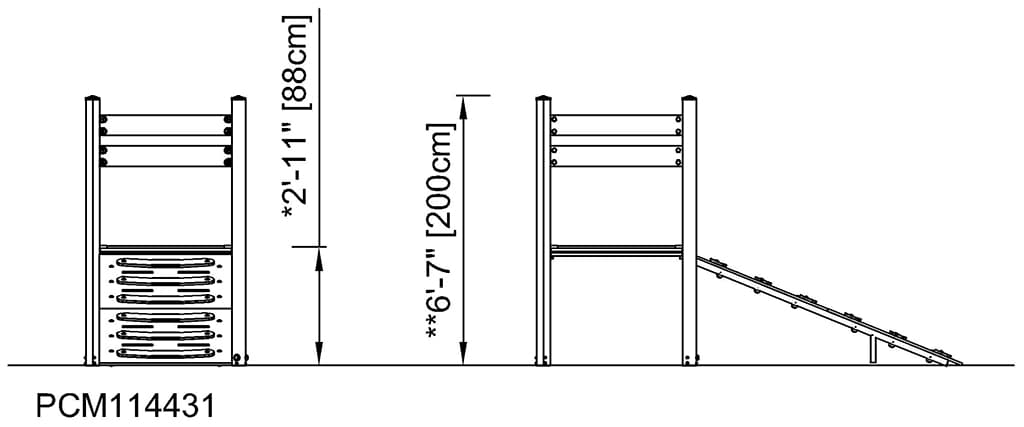

Side View (image)

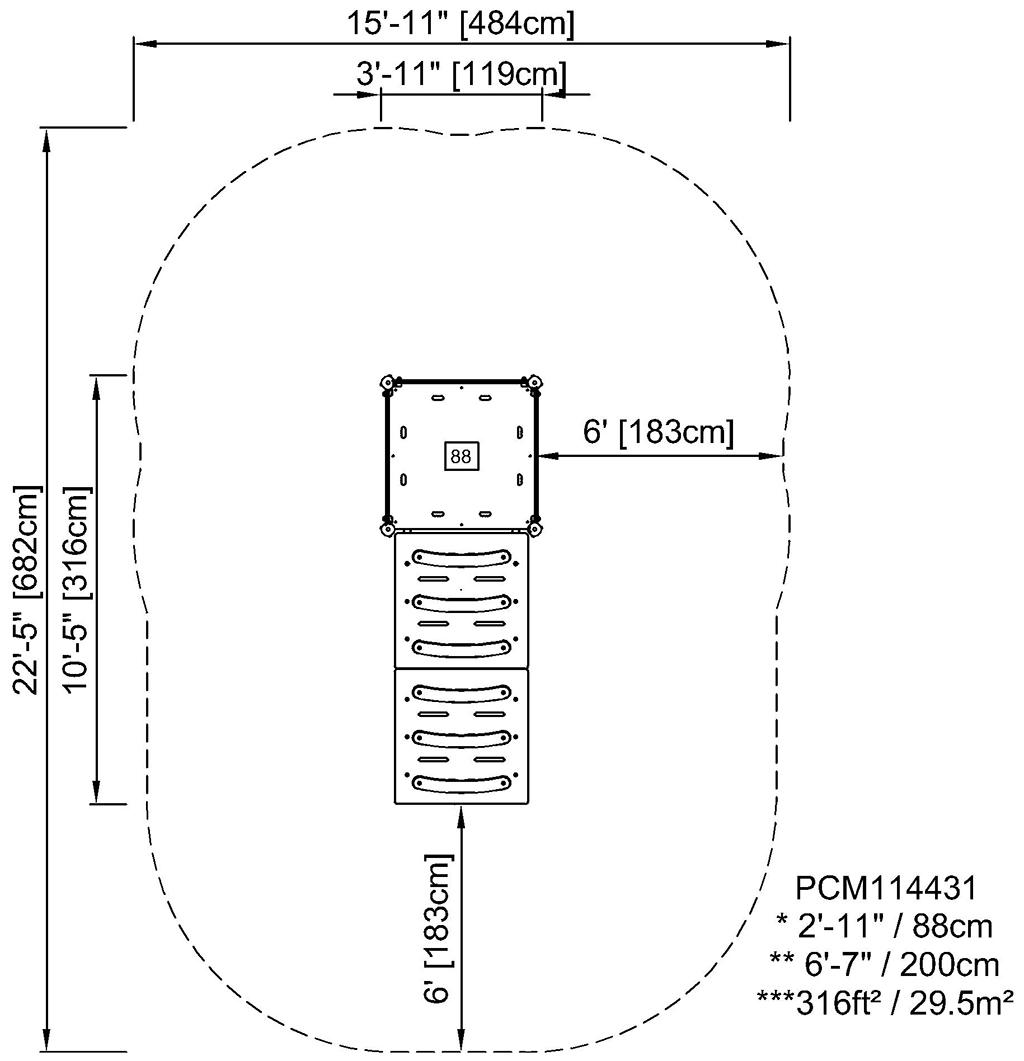

Foot Print (image)

Length

3' 11"

Width

10' 4"

Height

6' 7"

Specifications

Large elevated square start platform with capacity for many waiting users. The long run-up ramp ensures easy access to the start area when returning the seat to the following user. The platform is designed to be used for cableways installed in flat surroundings.

This product, Cableway Start Platform (PCM114431), is provided by KOMPAN United States.

Key Features

Play system posts incl TexMade

Main posts with hot-dip galvanized steel footing are available in different materials: Pressure impregnated pinewood posts. Pre-galvanized inside and outside with powder-coated top finish steel posts. Lead-free aluminum with color anodized top finish. Greenline TexMade posts of 100% post-consumer recycled PE and textile waste.

Play system molded decks

All decks are supported by uniquely designed low-carbon aluminum profiles with multiple attachment options. The grey-colored molded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and texture surface.

General_Steel

The steel surfaces are hot-dip galvanized inside and outside with lead-free zinc. The galvanization has excellent corrosion resistance in outside environments and requires minimal maintenance.

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.

Ramp_deck_HPL

The ramp deck is made of High-Pressure Laminate HPL with a thickness of 17.8mm and non-skid surface texture according to EN 438-6. KOMPAN HPL has high wearing strength to ensure a long lifetime in all climates.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCM114431-0901

463.46

Total CO₂ emission (kg CO₂e)

2.57

CO₂e/kg (kg CO₂e/kg)

40.3%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

See other similar products

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
