PCM111631

Play Tower Overhead

QR Code for Kompan EN/INT frontpage

Try our AR-app

Play Tower Overhead

Color LIME

Loading Designer
This attractive play structure will inspire all young children to play again and again. The graded challenges and thrilling play activities will keep children engaged for a long time. The accessible stairway makes an easy path to the top to navigate the net and slide to the ground. The fast slide and curly climber are thrilling and train the sense of balance and posture. These are fundamental for the ability to e.g. sit still and concentrate in school. The Overhead ladder trains children's upper bodies and backs, great training for sedentary children. Under the tower platform, there is a room with a desk inviting a break to socialize with friends.
Photos
Photos
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Curly climber

Physical

coordination and proprioception are supported when placing arms and legs correctly for going down. Sense of balance when rotating. Arm muscles for holding tight.

Social-Emotional

empathy stimulated by turn-taking.

Cognitive

logical thinking when placing arms and legs right for rotating downward.

Slide

Physical

sliding develops spatial awareness and a sense of balance. Furthermore, the core muscles are trained when sitting upright going down.

Social-Emotional

empathy stimulated by turn-taking.

Overhead ladder

Physical

develops children's upper body muscles and arm strength, cross coordination and spatial awareness. This is especially important due to sedentary lifestyles and back-pain in children.

Social-Emotional

chill and socialize on top of the overhead ladder, training cooperation.

Pipe ladder

Physical

cross coordination and eye-hand coordination are supported when children climb the ladder. The climbing also supports leg and arm muscles.

Social-Emotional

learning about taking turns and cooperation.

Somersault bar

Physical

develop balance and core when hanging from knees. Arm, leg and core muscles are developed when climbing up, somersaulting around. Balance and spatial awareness are strengthened.

Social-Emotional

meeting, socializing and turn-taking when climbing up and down via bar.

Accessible stairway

Physical

climbing the accessible stairway is for all and supports cross coordination as well as arm and leg muscles. For young children, walking stairs and alternating feet is developed.

Social-Emotional

room for active breaks and adult helpers. An inclusive space.

5 - 12 Years17 Users

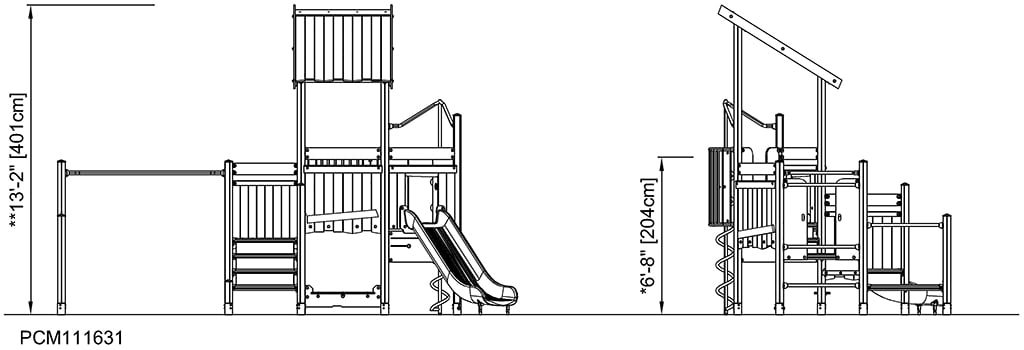

Side View (image)

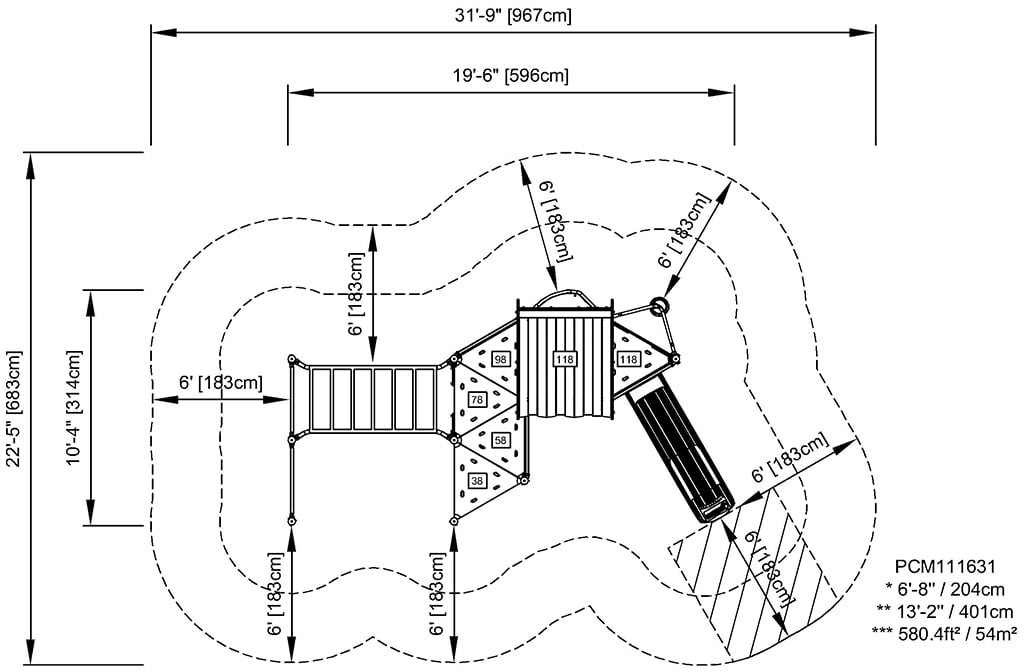

Foot Print (image)

Length

19' 6"

Width

10' 4"

Height

11' 6"

Specifications

This attractive play structure will inspire all young children to play again and again. The graded challenges and thrilling play activities will keep children engaged for a long time. The accessible stairway makes an easy path to the top to navigate the net and slide to the ground. The fast slide and curly climber are thrilling and train the sense of balance and posture. These are fundamental for the ability to e.g. sit still and concentrate in school. The Overhead ladder trains children's upper bodies and backs, great training for sedentary children. Under the tower platform, there is a room with a desk inviting a break to socialize with friends.

This product, Play Tower Overhead (PCM111631), is provided by KOMPAN United States.

Key Features

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco friendly material, which is not only recyclable after use, but also consists of a core produced from 100% recycled material.

Play system molded decks

All decks are supported by uniquely designed low-carbon aluminum profiles with multiple attachment options. The grey-colored molded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and texture surface.

Play System Posts excl Texmade

Main posts with hot dip galvanized steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanized inside and outside with powder coated top finish steel posts. Lead free aluminum with color anodized top finish. Greenline TexMade posts of 95% post-consumer recycled PE and textile waste.

General_Stainless Steel

The stainless-steel activities are made of high-quality stainless steel. The steel is cleaned by a total pickling process after manufacturing to ensure a smooth and clean gliding surfaces.

Moments Slide Colors - Six

The slides can be chosen in six different colors and three materials: Straight or curved one-piece molded PE slides. Combined EcoCore™ sides and stainless steel. Full stainless steel in a one-piece design for more vandalism-proof solutions.

Play system greenline

KOMPAN GreenLine versions are constructed with the most environmentally friendly materials with the lowest possible CO2e emission factor. TexMade posts, EcoCoreTM panels of 100% post-consumer recycled ocean waste, and molded PP decks.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCM111631-0951

1163.77

Total CO₂ emission (kg CO₂e)

1.88

CO₂e/kg (kg CO₂e/kg)

68.05%

Recycled materials

CO₂ friendly

PCM111631-0902

1377.02

Total CO₂ emission (kg CO₂e)

2.52

CO₂e/kg (kg CO₂e/kg)

56.73%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

See other similar products

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
