12-Seat Frame, 8ft h, Steel

QR Code for Kompan EN/INT frontpage

Try our AR-app

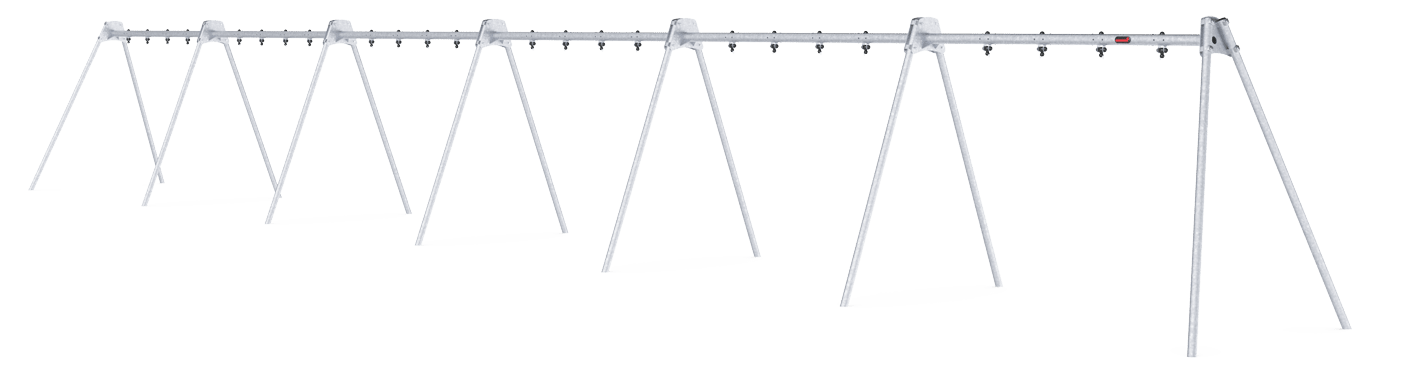

12-Seat Frame, 8ft h, Steel


Loading Designer
Portal Swing Frame Combination

The products might not be exactly as shown

2 - 12 Years2 - 12 Years

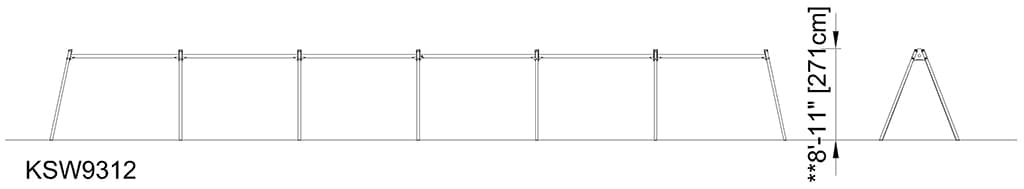

Side View (image)

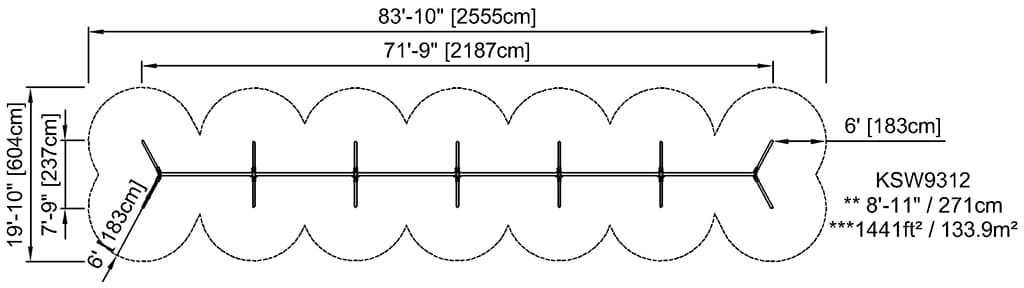

Foot Print (image)


71' 9"


7' 9"


8' 11"


Portal Swing Frame Combination

This product, 12-Seat Frame, 8ft h, Steel (KSW9312), is provided by KOMPAN United States.

Key Features

KSW A-Frame Posts

The A-Frame is available in three post-material options: Hot-dip galvanized 70mm steel, impregnated pine wood 95x95mm with hot dip galvanized steel footings, or 120mm TexMade™ posts.

KSW A-Frame Crossbeam

The A-Frame is designed with a hot-dip galvanized 100mm crossbar with large steel end plates for strong fixation to the posts. The crossbeam is prepared for all KOMPAN hanger options.


The swing hangers are made of high quality UV-stabalized nylon (PA6) housing with integrated lifetime sealed ball bearings. The height adjustable chains are fixed by a stainless steel hook with theft proof snake-eye bolt in a turn able anti twist housing. All seats with two chain fixation are available with either standard or anti-wrap suspension.

SW_Heavy duty hangers

KOMPAN heavy duty designed swing hangers of stainless steel with anti-twist function. The hangers are attached to the cross beam on a welded bracket with two bolts, The bearings are embedded with silicone lubricant and needs no further lubrication.

KSW A-Frame Stability Panels

A-Frame GreenLine swings are equipped with stability panels to ensure frame durability. The panels are made of 19mm EcoCore™, a highly durable, eco-friendly material. EcoCore™ is not only recyclable after it's used, but it also consists of a core produced from 100% recycled post-consumer material from food packing waste.

Play system greenline

KOMPAN GreenLine versions are constructed with the most environmentally friendly materials with the lowest possible CO2e emission factor. TexMade posts, EcoCoreTM panels of 100% post-consumer recycled ocean waste, and molded PP decks.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.



Total CO₂ emission (kg CO₂e)


CO₂e/kg (kg CO₂e/kg)


Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

See other similar products


Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
