KSW921

Swing Frame, 1 Seat, 8 ft H

QR Code for Kompan EN/INT frontpage

Try our AR-app

Swing Frame, 1 Seat, 8 ft H

Color ANTHRACITE GREY

Loading Designer
KOMPAN Portal swings are a modern update on a traditional favorite, constructed from galvanized steel. They are configurable for the unique needs and requirements of every playground site. All Portal swings come standard in 7", 8" or 10" heights with posts made from hot dip galvanized steel. For swing seats, we offer as standard a rubber swing seat, baby seat, or toddler swing seat for individual use, or the duo swing seat, birds nest, or you & me swing seat for multiple users. The seats are available with either hot dip galvanized chains or stainless steel chains with the option of antiwrap suspension. The modular swing system is also available in multibay configurations with 2, 3, 4 or more sections.
Photos

The products might not be exactly as shown

2 - 12 Years2 - 12 Years

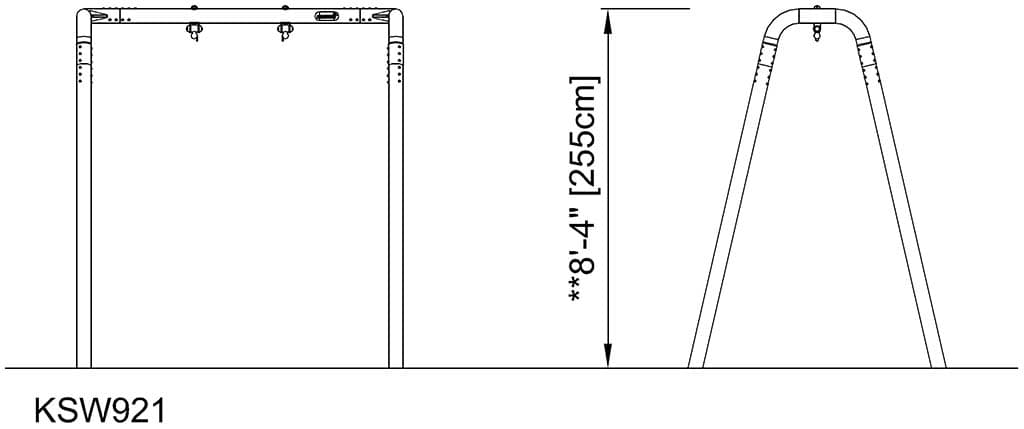

Side View (image)

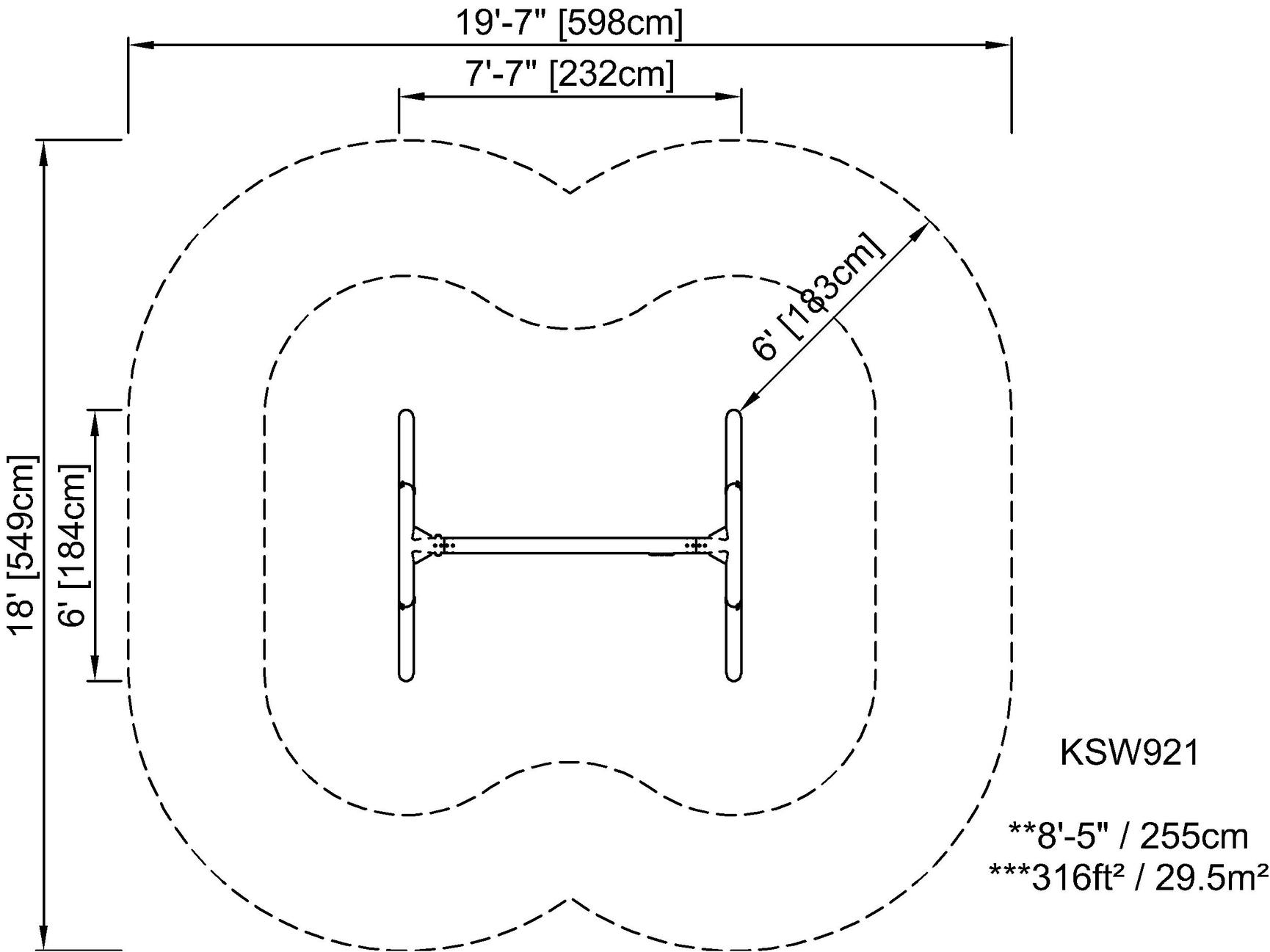

Foot Print (image)

Length

7' 7"

Width

6'

Height

8' 4"

Specifications

KOMPAN Portal swings are a modern update on a traditional favorite, constructed from galvanized steel. They are configurable for the unique needs and requirements of every playground site. All Portal swings come standard in 7", 8" or 10" heights with posts made from hot dip galvanized steel. For swing seats, we offer as standard a rubber swing seat, baby seat, or toddler swing seat for individual use, or the duo swing seat, birds nest, or you & me swing seat for multiple users. The seats are available with either hot dip galvanized chains or stainless steel chains with the option of antiwrap suspension. The modular swing system is also available in multibay configurations with 2, 3, 4 or more sections.

This product, Swing Frame, 1 Seat, 8 ft H (KSW921), is provided by KOMPAN United States.

Key Features

KSW_Vertical HDG post

Vertical posts of hot dip galvanized steel or powder coated on pre-galvanized steel base. Swing frame end connectors and crossbeam of hot dip galvanized steel or powder coated on hot dip galvanized steel base.

General_Hangers2

The swing hangers are made of high quality UV-stabalized nylon (PA6) housing with integrated lifetime sealed ball bearings. The height adjustable chains are fixed by a stainless steel hook with theft proof snake-eye bolt in a turn able anti twist housing. All seats with two chain fixation are available with either standard or anti-wrap suspension.

General_Steel

The steel surfaces are hot-dip galvanized inside and outside with lead-free zinc. The galvanization has excellent corrosion resistance in outside environments and requires minimal maintenance.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

KSW921-0910

383.5

Total CO₂ emission (kg CO₂e)

3.23

CO₂e/kg (kg CO₂e/kg)

46.73%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

See other similar products

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
