FSW218

Square Pull-Up Station

QR Code for Kompan EN/INT frontpage

Try our AR-app

Square Pull-Up Station

Color ORANGE

Loading Designer
The Square Pull-Up Station can be used in many ways and by multiple users at the same time. Exercises range from normal pull-ups to the most dynamic and advanced exercises such as the Flying Monkey, where you fly from one bar to another. The Pull-Up Bars are made from solid steel and have a diameter of 1.26 inches, which is an ideal size for both men and women to have a good grip. The highest bar is connected at a height of 7' 8" where everyone will be able to hang freely. To make sure that everyone can reach the pull-up bars there are two stepping pods on the posts at different heights.
Photos
Photos

The products might not be exactly as shown

13+ Years4 Users

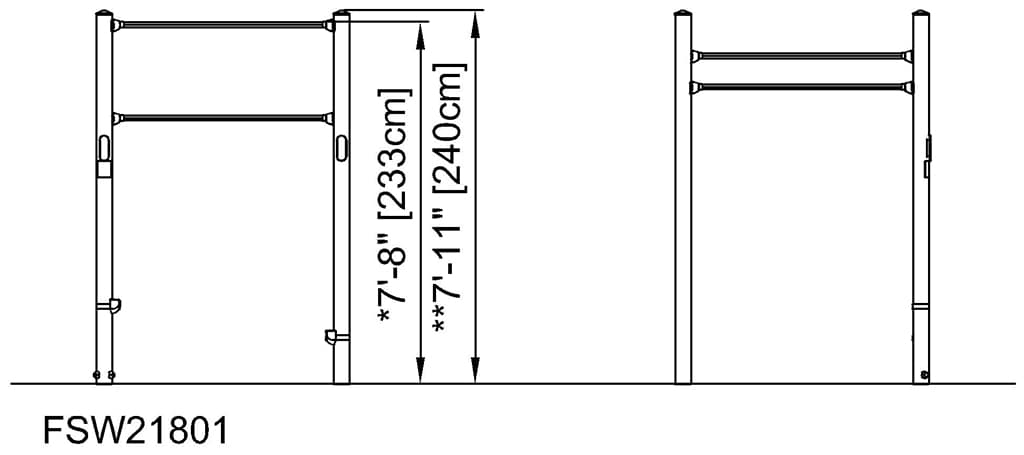

Side View (image)

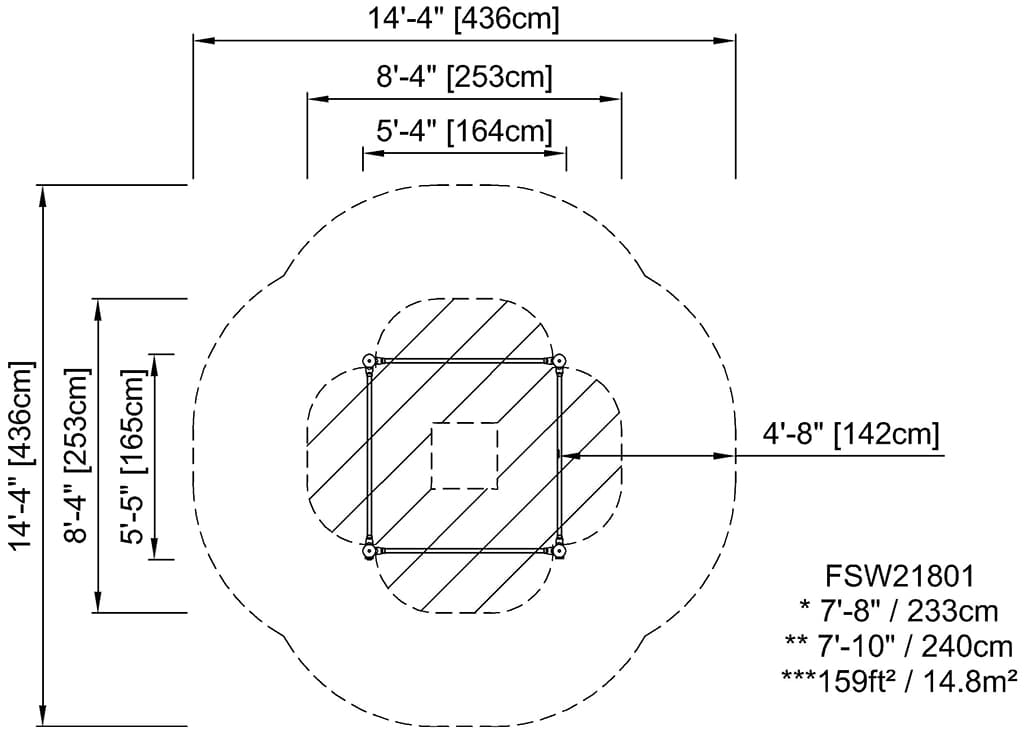

Foot Print (image)

Length

5' 5"

Width

5' 5"

Height

7' 10"

Specifications

The Square Pull-Up Station can be used in many ways and by multiple users at the same time. Exercises range from normal pull-ups to the most dynamic and advanced exercises such as the Flying Monkey, where you fly from one bar to another. The Pull-Up Bars are made from solid steel and have a diameter of 1.26 inches, which is an ideal size for both men and women to have a good grip. The highest bar is connected at a height of 7' 8" where everyone will be able to hang freely. To make sure that everyone can reach the pull-up bars there are two stepping pods on the posts at different heights.

This product, Square Pull-Up Station (FSW218), is provided by KOMPAN United States.

Key Features

FSW_Post

Post are made of 101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Pull up bars 32mm

All bars intended for pull ups are made of solid, ø32mm x 138 m, hot dip galvanized, S235JR steel bars. This diameter gives the right grip for everyone.

General_Fitness standards

All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Alu steps

Steps are made of extruded aluminium with a non-skid surface. Aluminium has high corrosion resistance and ensures durability of the product. Steps have been mounted at heights of 34,7cm and 54,7cm this creates an easy access to reach the overhead activity

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW21801-0901

193.09

Total CO₂ emission (kg CO₂e)

1.87

CO₂e/kg (kg CO₂e/kg)

67.78%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
