Orbit Curve
Physical
the Orbit curve inspires movement from crouching to standing on tip-toe for the youngest and stretching for the older users. This adds movement variation and trains agility and muscles.
Orbit’s multi-coloured, lighting nodes and whimsical screen attract children from afar and invite them into a world of easy entry and multi-layered outdoor games. Thanks to the combination of intriguing games, explanatory screen and light-up nodes, the play attraction is high and lasting. Children come back to the games again and again. The sensor based nodes light up with response to action and make children move, think and connect in new ways. Across ages, genders and generations, and moods, Orbit offers movement and games that train coordination, cooperation and cognition.
The products might not be exactly as shown
Play Value
Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.
Touch Sensor
Physical
the Orbit touch sensor is sensor based and its lights invite action, making users move fast from one to another, inspired by the rules in the game at hand. This trains users’ agility, hand-eye coordination and strategic movement skills.
Play Hub
Social-Emotional
the Orbit Play Hub explains games, notes scores and invite cooperation as well as social skills.
Cognitive
the different game types and levels selected appeal to different moods of play: rules games, strategic thinking games and more, inviting play behaviours that train cognitive skills.
5 - 12 Years6 Users

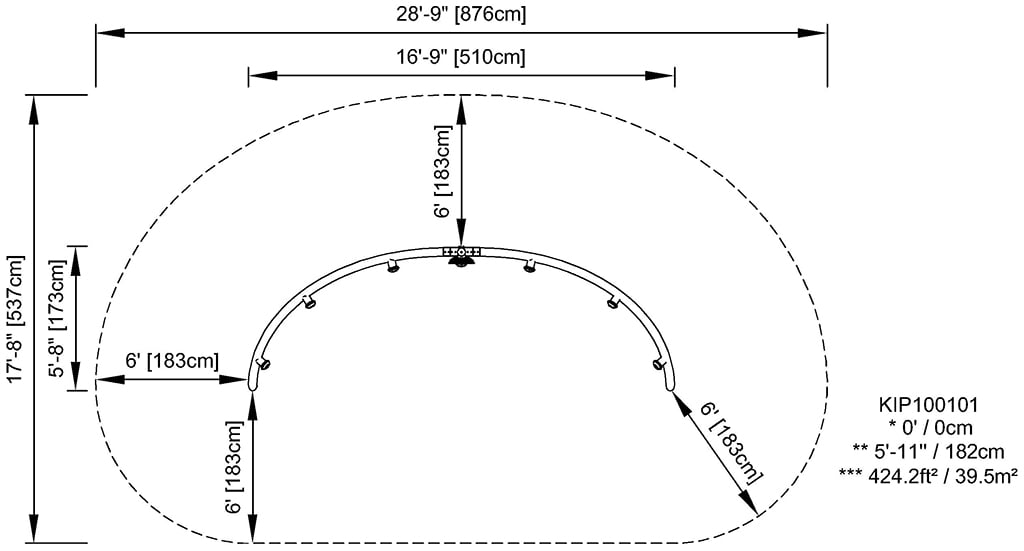

Length
16' 9"
Width
5' 8"

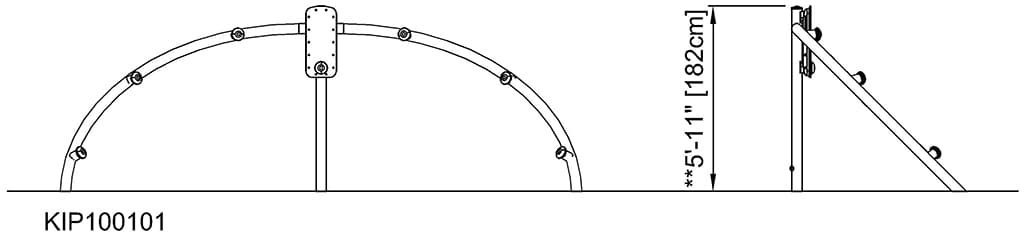

Height
6' 0"
Specifications
Orbit’s multi-coloured, lighting nodes and whimsical screen attract children from afar and invite them into a world of easy entry and multi-layered outdoor games. Thanks to the combination of intriguing games, explanatory screen and light-up nodes, the play attraction is high and lasting. Children come back to the games again and again. The sensor based nodes light up with response to action and make children move, think and connect in new ways. Across ages, genders and generations, and moods, Orbit offers movement and games that train coordination, cooperation and cognition.
This product, OrbitPlay (KIP100101), is provided by KOMPAN United States.
Key Features
The steel arches are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.
The PlayHub integrates LED display, touch sensor, sound, and radar technologies. Its LED screen offers high lumen brightness to maintain visibility in direct sunlight. It has been tested to withstand severe outdoor weather conditions and vandalism.
The OrbitPlay comes with 10 years of data connectivity, ensuring seamless and convenient health monitoring, user statistics tracking, remote maintenance, and game rotation.
The OrbitPlay is equipped with six distinct small touch sensors, each integrated with LED lighting and sound capabilities. These compact mini-computers are specifically engineered and manufactured for outdoor applications.
Games will be added or rotated multiple times annually to ensure OrbitPlay remains engaging and dynamic. Four different games will be available on OrbitPlay at all times.
OrbitPlay utilises an external power supply compatible with 100-230V AC. For an average daily usage of six hours, the power consumption is approximately 0.5 kWh.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
KIP100101-0901
924.31
Total CO₂ emission (kg CO₂e)
6.98
CO₂e/kg (kg CO₂e/kg)
36.77%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
TENDER TEXT SPECIFICATIONS
Looking for tender specification texts?
Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
How can we help you?
If you have any questions regarding this specific product or your project, we are here to help!
