GXY949
Aquila II
Age Group
5 - 12 Years
Capacity
22
Product category
GXY949
Aquila II
Specifications
Aquila II
AQUILA'S spacious nets and swaying, bouncy destinations attract and cater for playful children meeting and socializing. The rope and net details make various body positions possible, thus catering for many and a wide age span. The bounce and sway of the activities are fundamental motivation factors for play. The interconnectedness of the nets and play shells means that the children feel the movement of the other children climbing. At the Stabile ends, bouncy smaller group meetings are facilitated. The intense physical feedback of the varied meeting areas support social interaction for big groups. This facilitates the teenagers' social skills and their sense of belonging. The climbing and bouncing in Aquila train their balance, proprioception and spatial awareness intensely. All needed for navigating traffic safely.
This product, Aquila II (GXY949), is provided by KOMPAN United States.
Length
25' 8"
Width
15' 6"

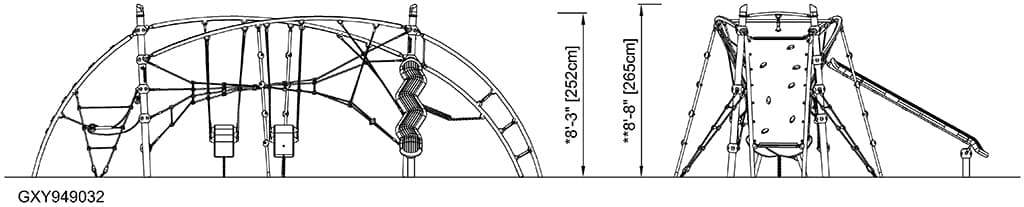

Height
8' 3"

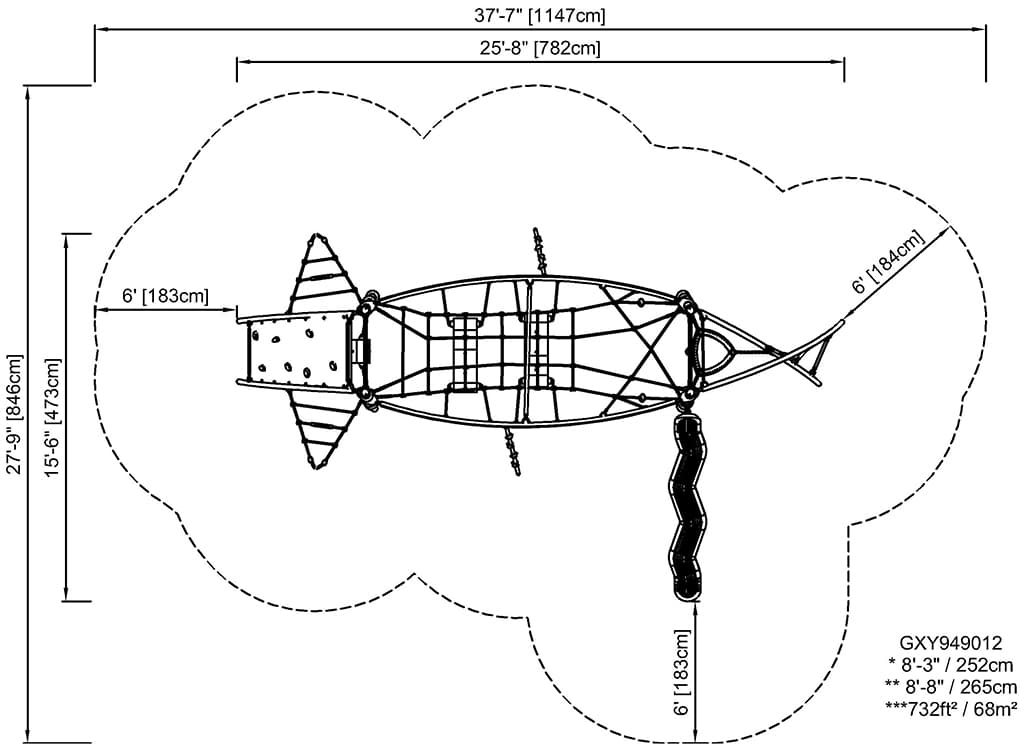

Safety Zone Length
37' 8"
Safety Zone Width
27' 9"
Age Group
5 - 12 Years
Capacity
22
ADA
Accessible ground level activities
4 (4 Required)
Accessible ground level play types
4 (4 Required)
Product category
Rope & Climbing Playgrounds
Product line
Galaxy™
Product Highlights
Quality That Lasts
The steel surfaces of GALAXY are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.
Larger activities are made of 100% recyclable PE. The play shell displayed is molded in one piece with a minimum 5mm wall thickness. PE has high impact resistance across a wide temperature span which ensures vandal resistance in all locations.
GALAXY climbing triangle with outer soft layer of PUR and corner brackets of moulded nylon (PA6). The core consist of a powder coated welded steel frame with integrated corner suspension points. Larger triangles are closed with an 18mm thick Ekogrip® panel that has a top-layer of rubber with a non-skid effect.
The curved climbing wall is made of a steel frame supported Ekogrip® panel with unique designed climbing cleats. The Ekogrip® panel consist of a 15mm thick PE base with 3 mm top-layer of rubber with a non-skid effect.
The unique designed GALAXY connection ball is made with an inner circular core of aluminium surrounded by a shell of hard PP with a outer layer of soft TPV rubber. Flexible lead free aluminium connectors allow for installation in variable angles.
Galaxy products are available in different color combinations with either hot dip galvanized steel surface treatment or optional with powder top finish of selected steel components. Colors of the activities are adjusted to support the individual color combination.
Play Activities
Balance
5
Climb
14
Glide
1
Hang in arms
4
Pull
2
Sensory
7
Socialize
5
Sway
4
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
GXY949032-3717
3750.27
Total CO₂ emission (kg CO₂e)
5.96
CO₂e/kg (kg CO₂e/kg)
37.47%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
