FSW224

Surface Challenge 3

QR Code for Kompan EN/INT frontpage

Try our AR app

Surface Challenge 3

Colour DARK BLUE

Loading Designer
One of the major problems for elderly people is falling. These accidents often happen because the elderly person is not able to overcome or react to minor changes in the surface. The surface challenge gives the opportunity to, under safe conditions, train to overcome typical obstacles found in nature and urban environments. Some of the challenges focus on the important toe-lift, either on small obstacles or bigger ones like the curb. Other challenges focus on the ankle and overall foot control. Finally, the different surfaces and materials stimulate sensory feedback which also enhances gait stability.
Photos
Photos

Photos are for conceptual purpose only. Deviations can occur.

13+ Years5 Users

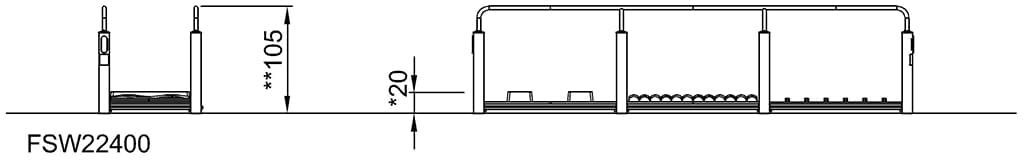

Side View (image)

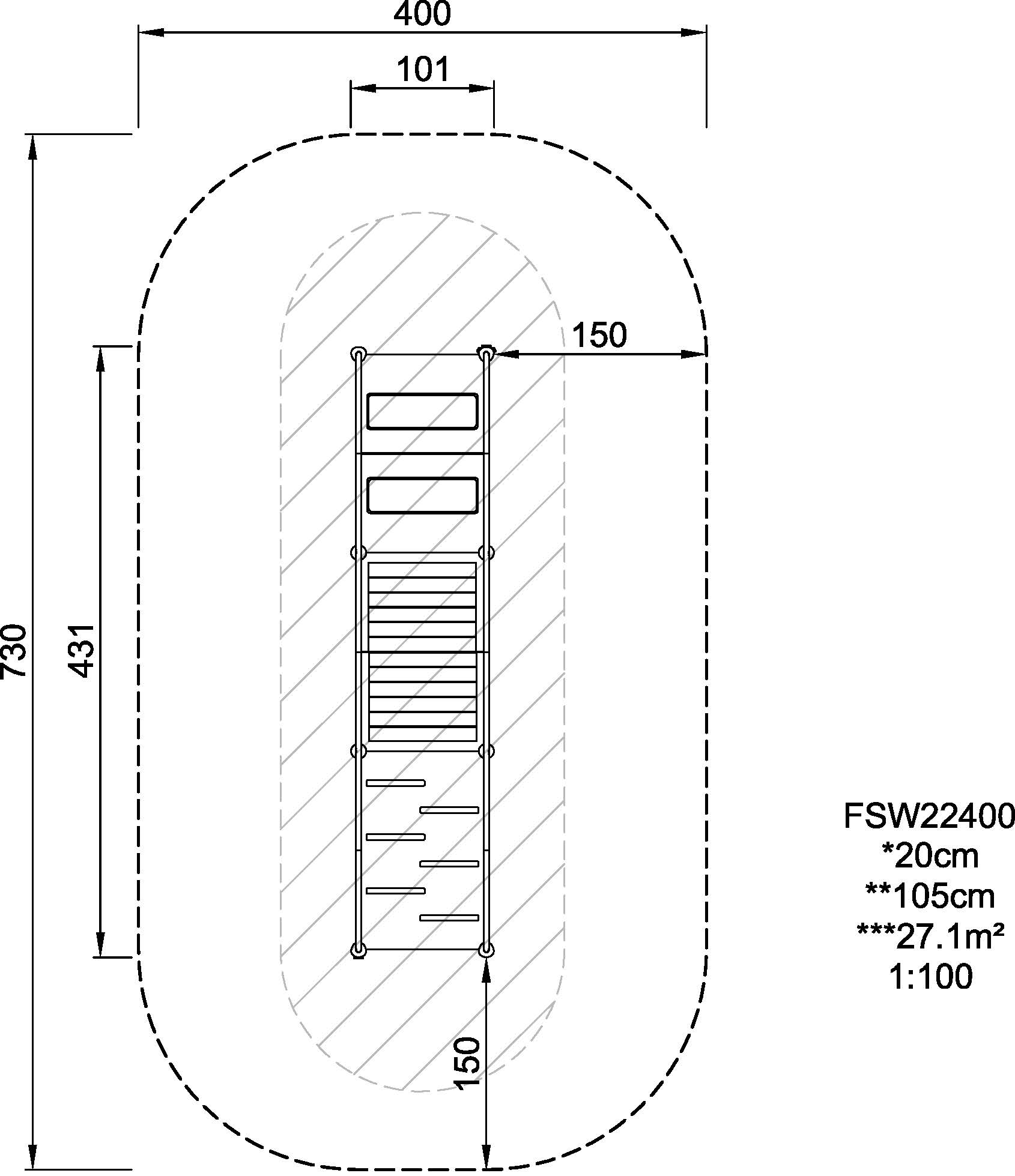

Foot Print (image)

Length

101 cm

Width

431 cm

Height

105 cm

Specifications

One of the major problems for elderly people is falling. These accidents often happen because the elderly person is not able to overcome or react to minor changes in the surface. The surface challenge gives the opportunity to, under safe conditions, train to overcome typical obstacles found in nature and urban environments. Some of the challenges focus on the important toe-lift, either on small obstacles or bigger ones like the curb. Other challenges focus on the ankle and overall foot control. Finally, the different surfaces and materials stimulate sensory feedback which also enhances gait stability.

This product, Surface Challenge 3 (FSW224), is provided by KOMPAN Australia.

Quality that lasts

FSW_Robinia trunks

The Robinia bars are made from de-barked and sap free Robinia trunks in various dimensions. Robinia is a native European wood species with high strength and natural durability in various climatic conditions. KOMPAN uses wood from FSC-certified sources.

FSW_Polymer concrete

The stone surface is made from polymer concrete (polyester concrete), which is a mixture of sand, gravel and dust mixed with polyester. The material is five times stronger and more waterproof than ordinary concrete, which guarantees longevity and low maintenance.

FSW_Handrail

Handrail intended as grips during exercises are made of hot-dip galvanised steel ø38mm, a great diameter for a good grip and to support the wrist. The height of the handrail is 940mm from the top of the HPL plate. The distance between the rails is 900mm.

FSW_Challenges HPL plates

All challenges are mounted on HPL plates of 1396x896x18mm. High-pressure laminate plates (HPL) have a moulded-in non-skid surface and HPL, which are rated as high-wearing materials.

General_Fitness standards

All of KOMPAN's fitness products are compliant with AS 4685:2021, ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed to the specified load of 78kg per user. A product intended for one user is loaded with 420kg.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

FSW22400-0902

687.51

Total CO₂ emission (kg CO₂e)

2.41

CO₂e/kg (kg CO₂e/kg)

16.8%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
