PCT110621

Ocean Giant XL

QR Code for Kompan EN/INT frontpage

Try our AR-app

Ocean Giant XL

Colour LIGHT BLUE

Loading Designer

PCT110621

Ocean Giant XL

  • Gallery
  • Play values
  • Specifications
  • Features
WOW! The Ocean Giant XL's sky-high climb-slide-meet features attract all children hugely. The Giant offers a unique variety of speedy sliding, gentle swaying and not least challenging climbing. The transparent towers are meandering climbs, promoting thrill and social interaction. This ensures vigorous play, over and over. The slides are main attractions. The open and closed slide and the challenging banister bars offer each their fast ride. Severe fun, stimulating social-emotional skills such as self-regulation and empathy. The varied climbing activities add choice for all, the transparent climbs add thrill. Climbing here trains cross-coordination, sense of space and muscles. Play shells, talking tube, hammock and tic-tac-toe create an inviting ground level space. Low climbing and ropes with pods add opportunities for all to socialize and participate in play.

Play Value

Play value is the value gained from play, the value that makes the child 'want' or developmentally 'need' to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Internal transparent climbing panel

Physical

supports cross coordination, which supports cross-modal perception. Also trains leg, arm and hand strength.

Social-Emotional

the see-through panel allows you to watch and contact friends on ground level when up high.

Cognitive

the see through-effect adds a feeling of thrill when used up high.

Somersault bar

Physical

develop balance, spatial awareness, core, arm and leg muscles, when climbing up and hanging.

Social-Emotional

meeting, socialising and turn-taking when climbing up and down via bar.

Banister bars

Physical

supports coordination, arm and core muscles. Landing strengthens bone density

Social-Emotional

turn-taking and risk-taking.

Tic-tac-toe panel

Social-Emotional

stimulates communication and turn-taking skills.

Cognitive

support rules understanding, strategic thinking.

Creative

leaving marks when tumblers are left in new positions.

High spiral tube slide

Physical

develops spatial awareness, sense of balance, trains core muscles when sitting upright going down.

Social-Emotional

thrill when going down fast. Empathy stimulated by turn-taking. Feeling of security when stopping on slide mouth.

Movable hammock

Physical

sense of balance when swaying, body pressure when lying. Support users lying or seated.

Social-Emotional

meeting, pushing friends gently back and forth, turn-taking.

Creative

changing direction and position of hammock.

Rope climber

Physical

children develop cross coordination when climbing and upper body muscles when pulling themselves upwards in the support ropes.

Social-Emotional

place for meeting, taking a break and socializing.

6+ Years60 Users

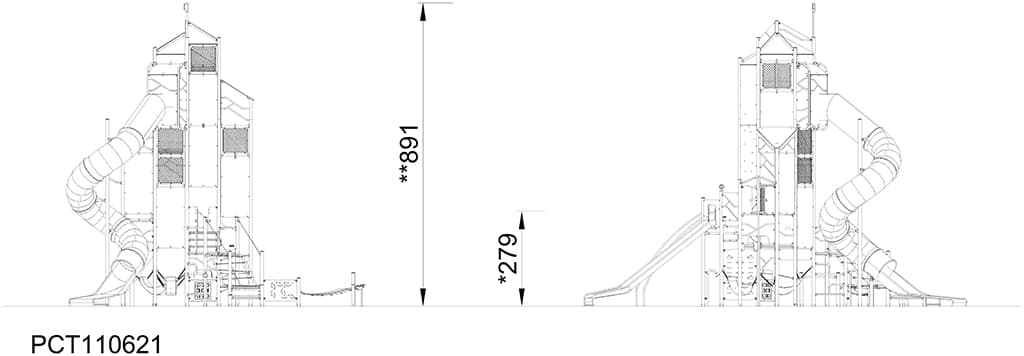

Side View (image)

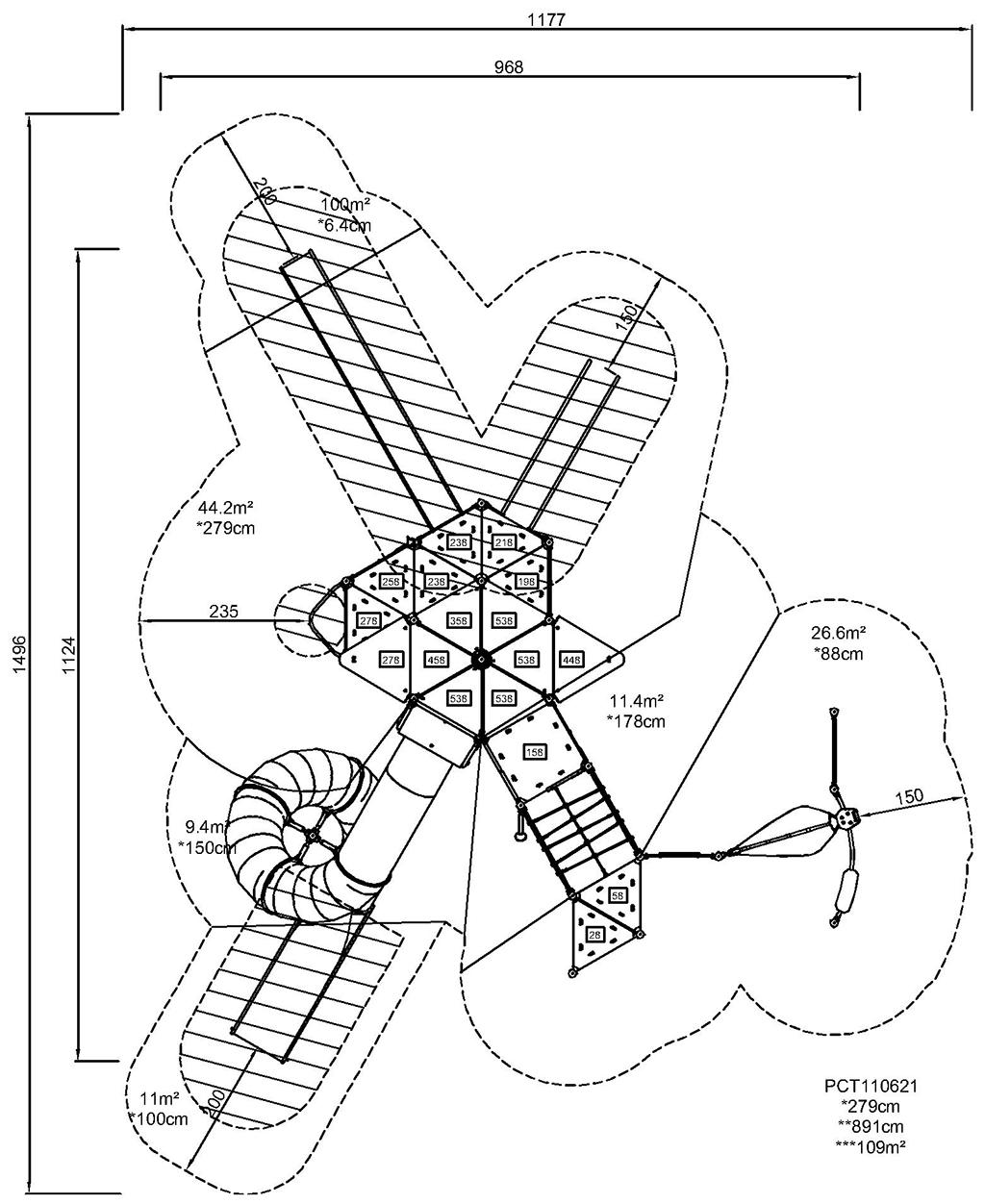

Foot Print (image)

Length

968 cm

Width

1124 cm

Height

891 cm

Specifications

WOW! The Ocean Giant XL's sky-high climb-slide-meet features attract all children hugely. The Giant offers a unique variety of speedy sliding, gentle swaying and not least challenging climbing. The transparent towers are meandering climbs, promoting thrill and social interaction. This ensures vigorous play, over and over. The slides are main attractions. The open and closed slide and the challenging banister bars offer each their fast ride. Severe fun, stimulating social-emotional skills such as self-regulation and empathy. The varied climbing activities add choice for all, the transparent climbs add thrill. Climbing here trains cross-coordination, sense of space and muscles. Play shells, talking tube, hammock and tic-tac-toe create an inviting ground level space. Low climbing and ropes with pods add opportunities for all to socialize and participate in play.

This product, Ocean Giant XL (PCT110621), is provided by KOMPAN Australia.

Quality that lasts

General_EcoCore

Panels of 19mm EcoCore™. EcoCore™ is a highly durable, eco-friendly material, which is not only recyclable after use but also consists of a core produced from 100% recycled material.

Play system molded decks

All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.

PCT_HDG Posts

The main posts have an alloy with improved tensile and yield strength to ensure the structural integrity of the high towers are maintained. The posts have a hot-dip galvanised base and powder coated top finish which ensure longevity.

PCT_Polycarbonate transparant panel

Panels are manufactured from high-quality polycarbonate with a thickness of 15mm. The graphic prints are added by a unique multi-layer print process where the inner layer is the image and outer transparent layer functions as protection. Both PC panel and the water-based lacquer are UV stabilised to prevent fading.

PCT_Steel grid

Fully welded steel frame with 45° cross welded steel grid of round steel pins with a diameter of 4mm. The airflow panel contributes to the overall structural integrity of the GIANT towers.

PCT_Curved slides

Curved and straight tunnel slide of either PE or stainless-steel material and supported by multiple steel rods to a centre steel post. The tunnel slides are designed with perfect curve and inclination for a playful ride.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

PCT110621-0901

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
