FSW214

Over Under

QR Code for Kompan EN/INT frontpage

Try our AR app

Over Under

Colour ANTHRACITE GREY

Loading Designer
Trained athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. A great way to train strength, agility, coordination and flexibility. The Over Under obstacle is a great example that everyone can be challenged at their own level. The bars are positioned closely to another therefore a combination of lower body and upper body strength is required to overcome this obstacle. Rounded corners make it safe and simple for anyone to try exercises in which they swing their legs over the bar.
Photos
Photos
Photos

Photos are for conceptual purpose only. Deviations can occur.

13+ Years4 Users

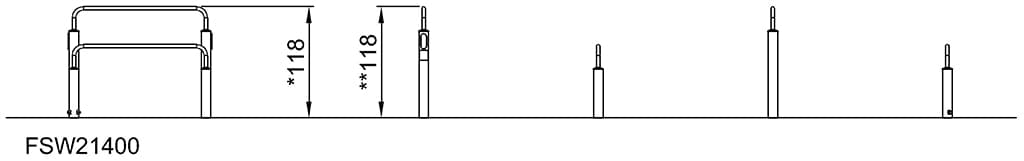

Side View (image)

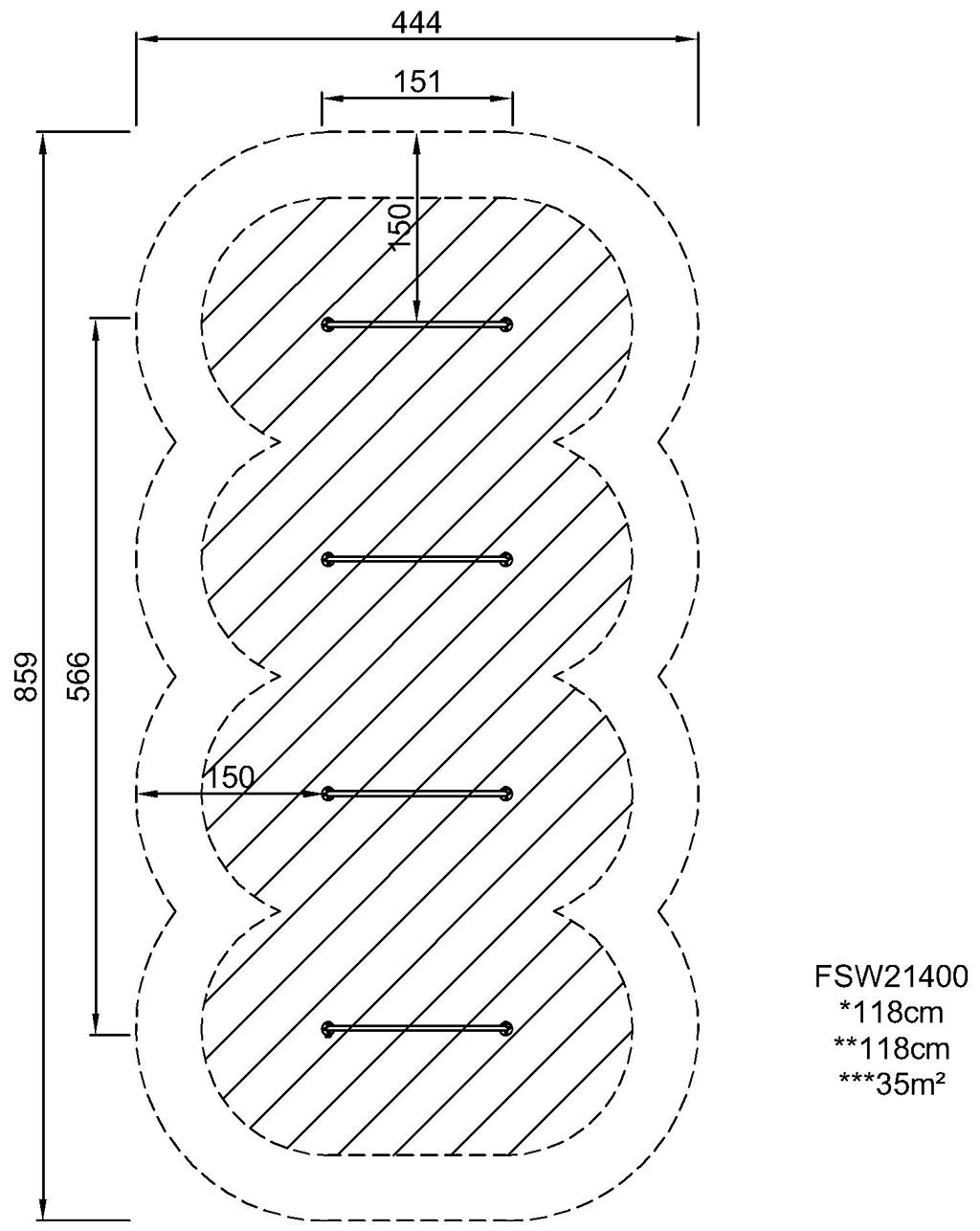

Foot Print (image)

Length

151 cm

Width

566 cm

Height

118 cm

Specifications

Trained athletes will go over the high bar and underneath the low bar, while the beginners will do it the other way around. A great way to train strength, agility, coordination and flexibility. The Over Under obstacle is a great example that everyone can be challenged at their own level. The bars are positioned closely to another therefore a combination of lower body and upper body strength is required to overcome this obstacle. Rounded corners make it safe and simple for anyone to try exercises in which they swing their legs over the bar.

This product, Over Under (FSW214), is provided by KOMPAN Australia.

Quality that lasts

FSW_Post

The post is made of Ø101.6 x 2mm, pre-galvanised carbon steel and powder coated which is a great protection solution for all climate conditions.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Bars 38mm

Bars intended as grips during exercises are made of hot-dip galvanised steel ø38mm. A great diameter to support the wrist when doing dips or handstands.

General_Fitness standards

All of KOMPAN's fitness products are compliant with AS 4685:2021, ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed to the specified load of 78kg per user. A product intended for one user is loaded with 420kg.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercises. When users scan the QR code, this will link them to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN Fitness App, which is programmed with many more exercise alternatives.

FSW_Four bars

The FSW 214 consist of four bars which are placed at a distance of 175cm. The low bars are 78cm high, and the high bars are 118cm high.

CO₂ emission

Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.

FSW21400-0900

353.12

Total CO₂ emission (kg CO₂e)

3.43

CO₂e/kg (kg CO₂e/kg)

47.96%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
