The elegantly curved Butterfly is a statement for climbing. With its twisted climbs, the Butterfly invites you to climb again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the wings. And there are lots to talk about and try out: the twisted nets stimulate clever climbing and balancing techniques, which stimulate the child’s cross-coordination and proprioception, both important for precise movements and ultimately for moving confidently through the world. With the visible heights adding to the thrill there are faster and slower ways across and up into the Butterfly: curved climbers add fast access to the top frame, and banister bars offer a fast glide to the ground. At ground level, balance disks suspended in ropes add swaying balancing movements, standing or seated. The sense of balance is crucial for training body control and concentration.
Photos are for conceptual purpose only. Deviations can occur.
Quality that lasts
Fully coloured EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot-dip galvanised steel core that ensures both the stability of the discs and durable fixtures to the rope.
The stainless steel activities are made of high-quality stainless steel. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.
<p>Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.</p>
Corocord ropes with 19mm+ diameter are known as a 'Hercules' rope type which is formed from galvanised six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. Ropes are highly wear-and vandalism-resistant and can be easily replaced on-site if needed.
Designed to allow the typical function of rope play structures to move Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector. Our clamps are safe, durable and vandalism-proof.
The rope is fixed to the large steel pipe by a unique KOMPAN designed tightening solution. It consists of inner and outer nylon (PA6) bushings that guides the rope to an outside threaded stainless steel part that tightens the rope.

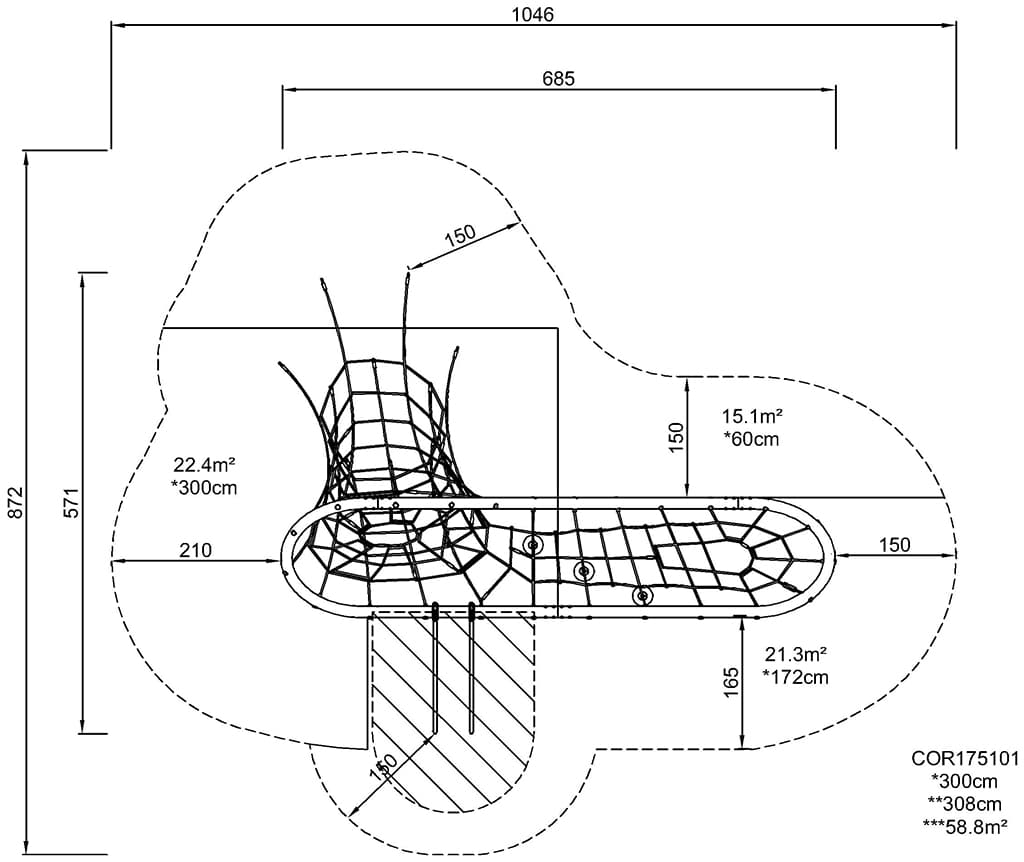

Length
685 cm
Width
571 cm

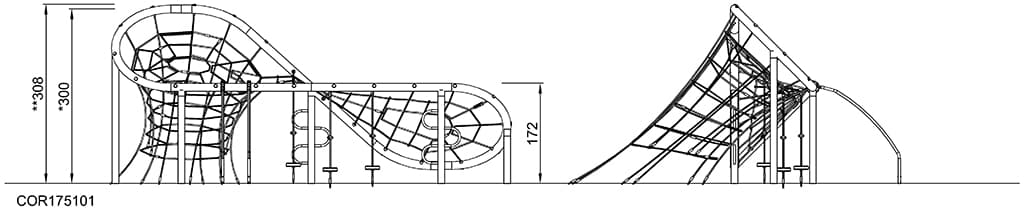

Height
308 cm
Specifications
The elegantly curved Butterfly is a statement for climbing. With its twisted climbs, the Butterfly invites you to climb again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the wings. And there are lots to talk about and try out: the twisted nets stimulate clever climbing and balancing techniques, which stimulate the child’s cross-coordination and proprioception, both important for precise movements and ultimately for moving confidently through the world. With the visible heights adding to the thrill there are faster and slower ways across and up into the Butterfly: curved climbers add fast access to the top frame, and banister bars offer a fast glide to the ground. At ground level, balance disks suspended in ropes add swaying balancing movements, standing or seated. The sense of balance is crucial for training body control and concentration.
This product, Butterfly, Physical (COR17510), is provided by KOMPAN Australia.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
COR175101-0403
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
