COR17510

Butterfly, Physical

Try our AR-app

Colour LIME

The elegantly curved Butterfly is a statement for climbing. With its twisted climbs, the Butterfly invites climbing try-outs again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the wings. And there are lots to talk about and try out: the twisted nets stimulate clever climbing and balancing techniques, which stimulate the child’s cross-coordination and proprioception, both important for precise movements and ultimately for moving confidently through the world. The visible heights add thrill. There are faster and slower ways across and up intothe Butterfly: curved climbers add fast access to the top frame, and banister bars offer a fast glide to the ground. At ground level, balance disks suspended in ropes add swaying balancing movements, standing or seated. The sense of balance is crucial to train, as it is fundamental for body control and concentration.

The products might not be exactly as shown

Key Features

Fully coloured EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot dip galvanised steel core that ensures both the stability of the discs and durable fixation to the rope.

The stainless steel activities are made of high quality stainless steel. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.

<p>Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.</p>

Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.

The rope is fixed to the large steel pipe by a unique KOMPAN designed tightening solution. It consists of inner and outer nylon (PA6) bushings that guides the rope to an outside threaded aluminum part that tighten the rope.

5 - 12 Years22 Users

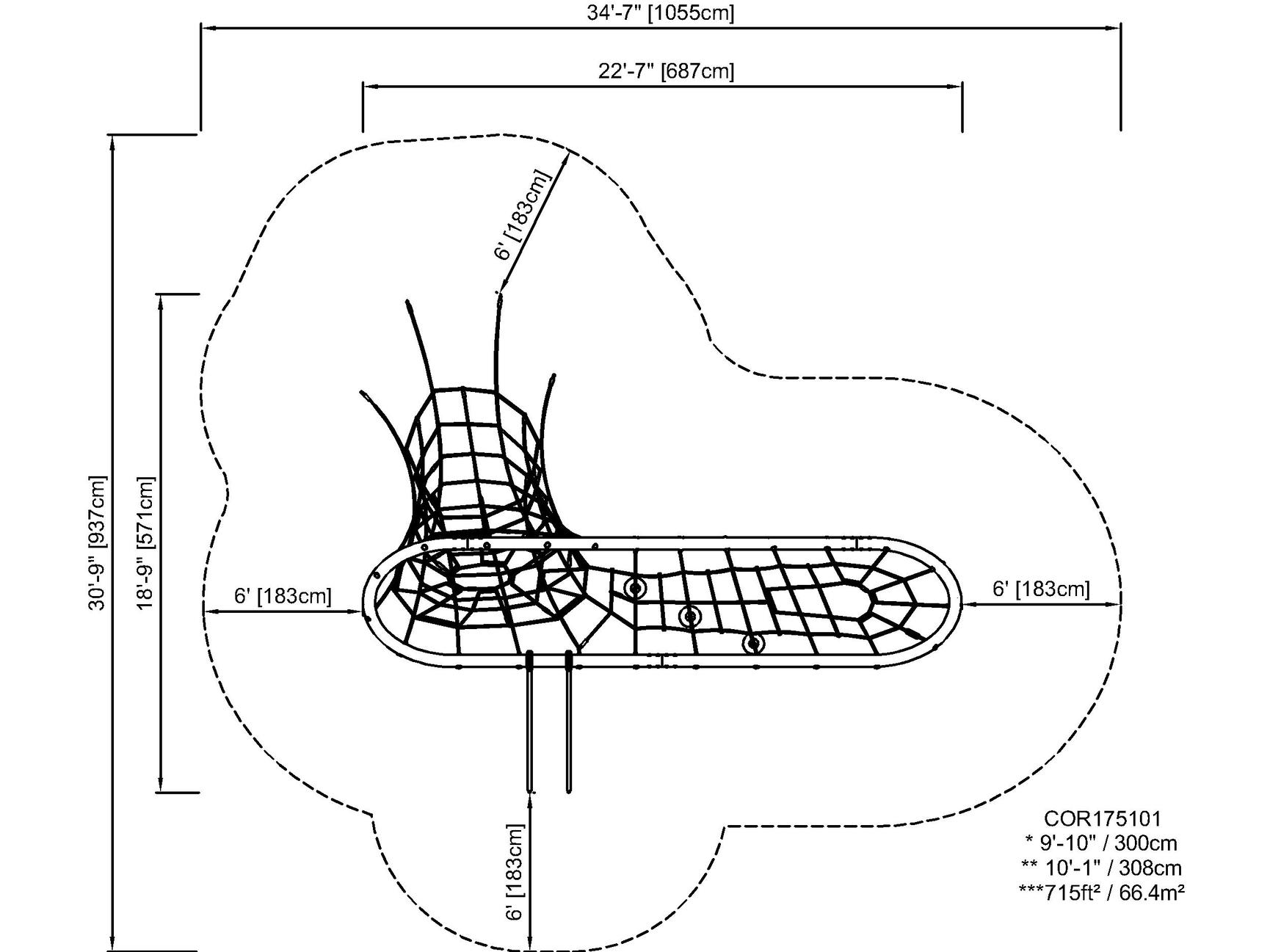

Length

685 cm

Width

571 cm

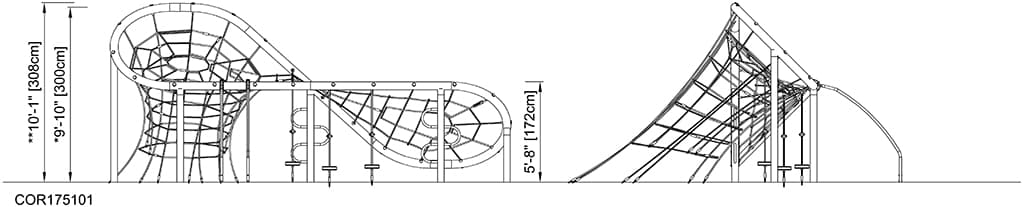

Height

308 cm

Specifications

The elegantly curved Butterfly is a statement for climbing. With its twisted climbs, the Butterfly invites climbing try-outs again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the wings. And there are lots to talk about and try out: the twisted nets stimulate clever climbing and balancing techniques, which stimulate the child’s cross-coordination and proprioception, both important for precise movements and ultimately for moving confidently through the world. The visible heights add thrill. There are faster and slower ways across and up intothe Butterfly: curved climbers add fast access to the top frame, and banister bars offer a fast glide to the ground. At ground level, balance disks suspended in ropes add swaying balancing movements, standing or seated. The sense of balance is crucial to train, as it is fundamental for body control and concentration.

This product, Butterfly, Physical (COR17510), is provided by KOMPAN Canada.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

COR175101-0403

2940.9

Total CO₂ emission (kg CO₂e)

2.8

CO₂e/kg (kg CO₂e/kg)

49.4%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
