The Butterfly Triple is an activity packed, varied climbing magnet for children. The elegantly curved wings and their varied twisted climbs, on the ground level and above, invite children back again and again. The blue membranes accentuate the shapes and climbing journeys possible and add a meeting point above ground level in the intriguing climb-scape. There are rich physical challenges in climbing the twisted nets or gliding down the banister bars. Climbing the Butterfly trains cross-coordination and balancing techniques, which stimulate the child’s ability to control movements, and ultimately to move confidently through the world. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the Butterfly, from ground level to the top and across. On ground level communication is invited with the talking tubes, a highly intriguing play detail for children. Two blue, swaying Loops invite fun meetings for two, four or more children together, as do the swaying ropes with discs, suspended under the loop. For the sense of wonder, three Optic Panels inspire talks thanks to the moiré effect patterns: they look different depending on how children focus, which adds to talks and logical thinking skills.
Photos are for conceptual purpose only. Deviations can occur.
Quality that lasts
<p>Turnable optic panels of two 7mm thick polycarbonate plates with a distance of 40mm. The inside graphic print consist of an inner image layer and outer transparent protection layer. Both PC panel and the water-based lacquer are UV stabilized to prevent fading of the print.</p>
Hangout pod designed with a welded frame of two steel rings which are hot dip galvanized and powder coated. The membrane consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance.
Fully coloured EPDM rubber discs with smooth surface. The moulded EPDM surrounds a hot-dip galvanised steel core that ensures both the stability of the discs and durable fixtures to the rope.
Corocord ropes with 19mm+ diameter are known as a 'Hercules' rope type which is formed from galvanised six-stranded steel wires. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. Ropes are highly wear-and vandalism-resistant and can be easily replaced on-site if needed.
The rope is fixed to the large steel pipe by a unique KOMPAN designed tightening solution. It consists of inner and outer nylon (PA6) bushings that guides the rope to an outside threaded stainless steel part that tightens the rope.
<p>Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.</p>

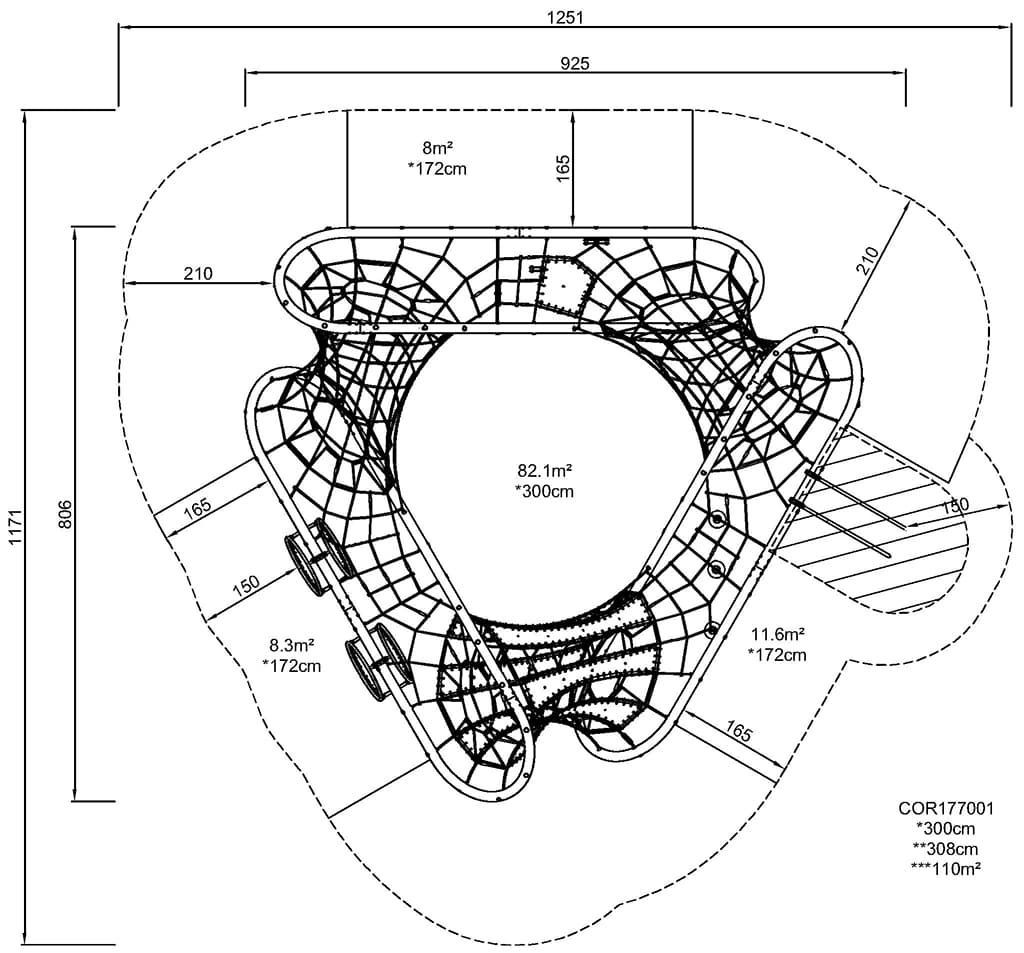

Length
925 cm
Width
806 cm

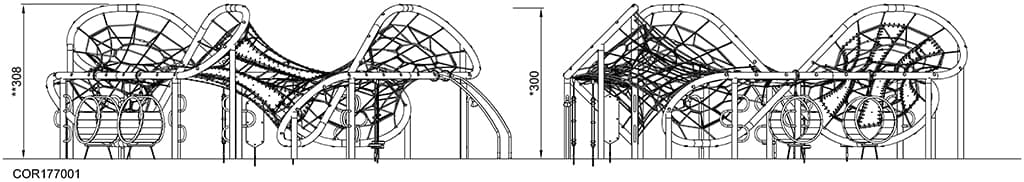

Height
308 cm
Specifications
The Butterfly Triple is an activity packed, varied climbing magnet for children. The elegantly curved wings and their varied twisted climbs, on the ground level and above, invite children back again and again. The blue membranes accentuate the shapes and climbing journeys possible and add a meeting point above ground level in the intriguing climb-scape. There are rich physical challenges in climbing the twisted nets or gliding down the banister bars. Climbing the Butterfly trains cross-coordination and balancing techniques, which stimulate the child’s ability to control movements, and ultimately to move confidently through the world. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the Butterfly, from ground level to the top and across. On ground level communication is invited with the talking tubes, a highly intriguing play detail for children. Two blue, swaying Loops invite fun meetings for two, four or more children together, as do the swaying ropes with discs, suspended under the loop. For the sense of wonder, three Optic Panels inspire talks thanks to the moiré effect patterns: they look different depending on how children focus, which adds to talks and logical thinking skills.
This product, Butterfly, Triple (COR17700), is provided by KOMPAN Australia.
CO₂ emission
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
COR177001-0499
9055.4
Total CO₂ emission (kg CO₂e)
2.84
CO₂e/kg (kg CO₂e/kg)
47.5%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
