FSW229

Stairs & Ramp

QR Code for Kompan EN/INT frontpage

Try our AR-app

Stairs & Ramp

Colour DARK BLUE

Loading Designer
The stair and ramp resembles some common everyday obstacles. Walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as long steps a possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.
Photos

The products might not be exactly as shown

13+ Years2 Users
Side View (image)

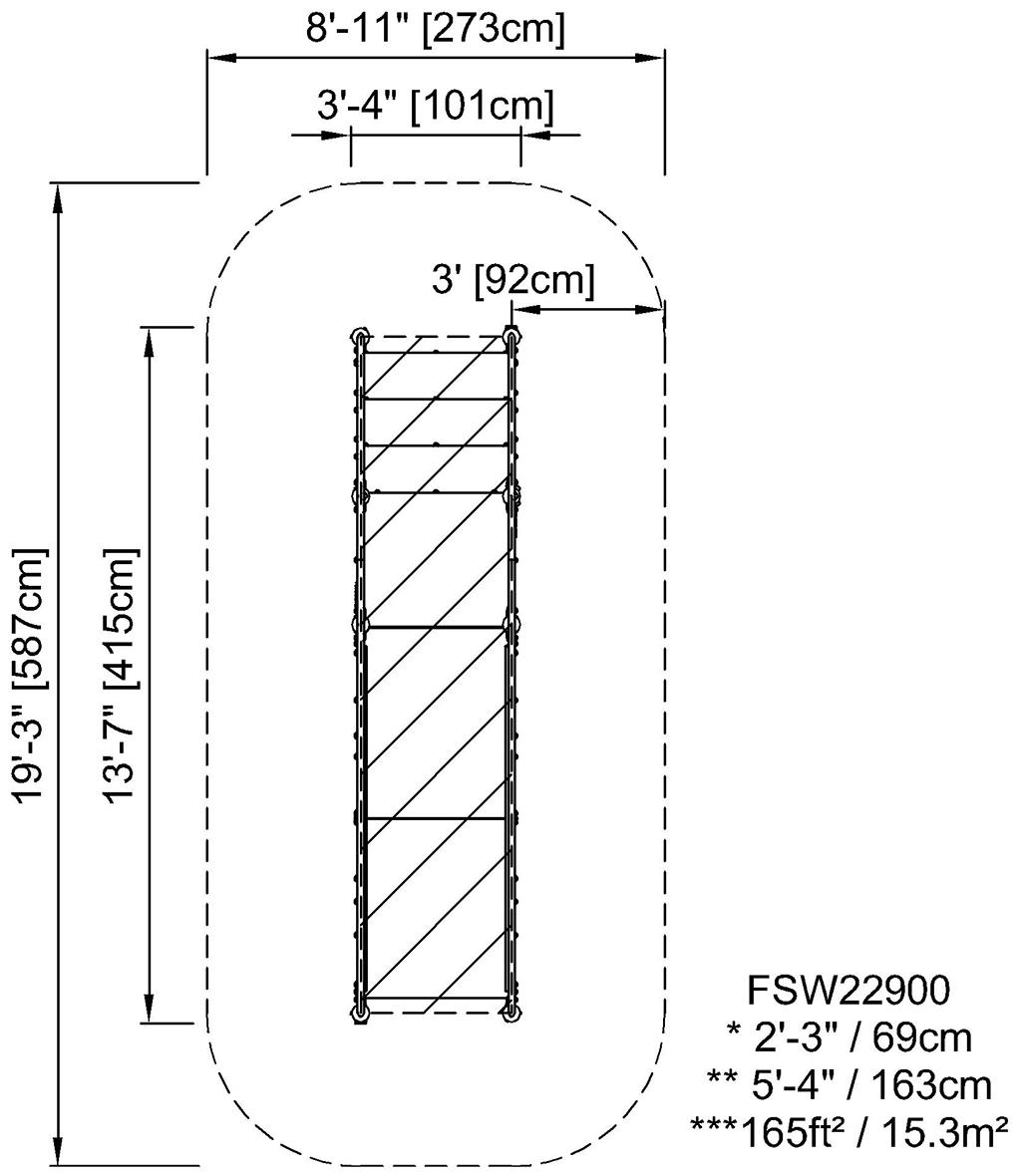

Foot Print (image)

Length

101 cm

Width

415 cm

Height

163 cm

Specifications

The stair and ramp resembles some common everyday obstacles. Walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as long steps a possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.

This product, Stairs & Ramp (FSW229), is provided by KOMPAN Canada.

Key Features

FSW_Steps

The Four-steps are 900x280mm and have a height of 171mm.

FSW_alu ramp

The ramp is mounted under a 15 degree angle and has a length of 2300mm. The ramp is made from 5mm aluminium plate with an anti-slip pattern.

PCM_Deck Alu profiles

All decks are supported by unique designed aluminium profiles with multiple attachment options by usage of pressure moulded aluminum connectors. The HPL decks with a thickness of 17.8mm with a very high wearing strength and a unique KOMPAN nonskid surface texture.

FSW_Railing hight

The railing height is 930mm and the distance between the railing is 900mm The material used for the railing is hot-dip galvanised steel ø38 mm, a great diameter for a good grip and wrist support.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Post

Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW22900-0902

935.23

Total CO₂ emission (kg CO₂e)

3.58

CO₂e/kg (kg CO₂e/kg)

39.08%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

See other similar products

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
