FSW229

Stairs & Ramp

QR Code for Kompan EN/INT frontpage

AR 앱 체험하기

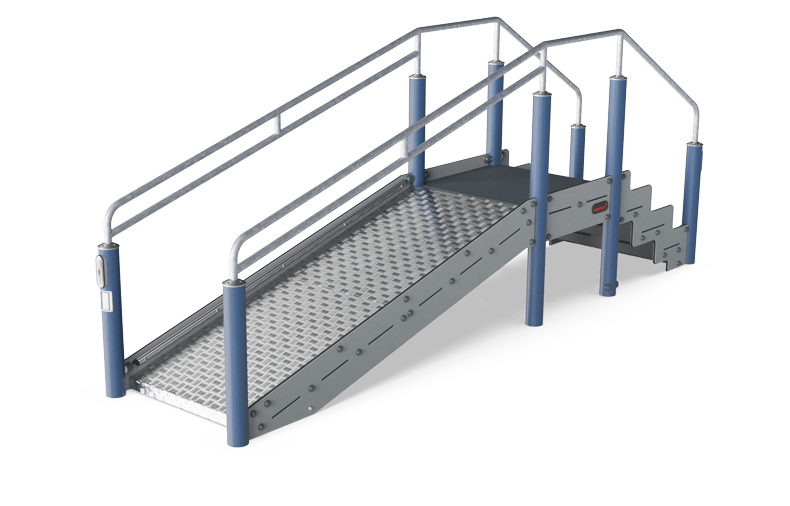

Stairs & Ramp

색상 DARK BLUE

디자이너 로드
The stair and ramp resembles some common everyday obstacles. Walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as long steps a possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.
Photos

사진은 컨셉 참고용으로 실제와 다를 수 있습니다.

13+ 연령2 이용자

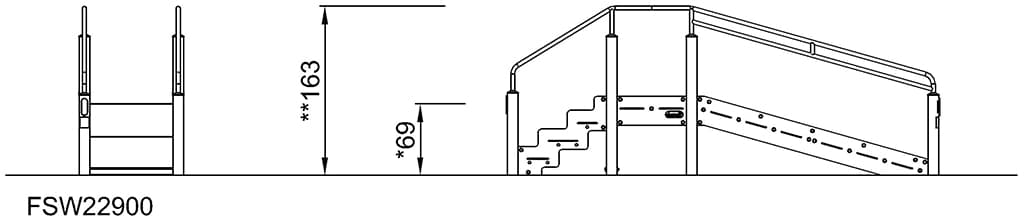

Side View (image)

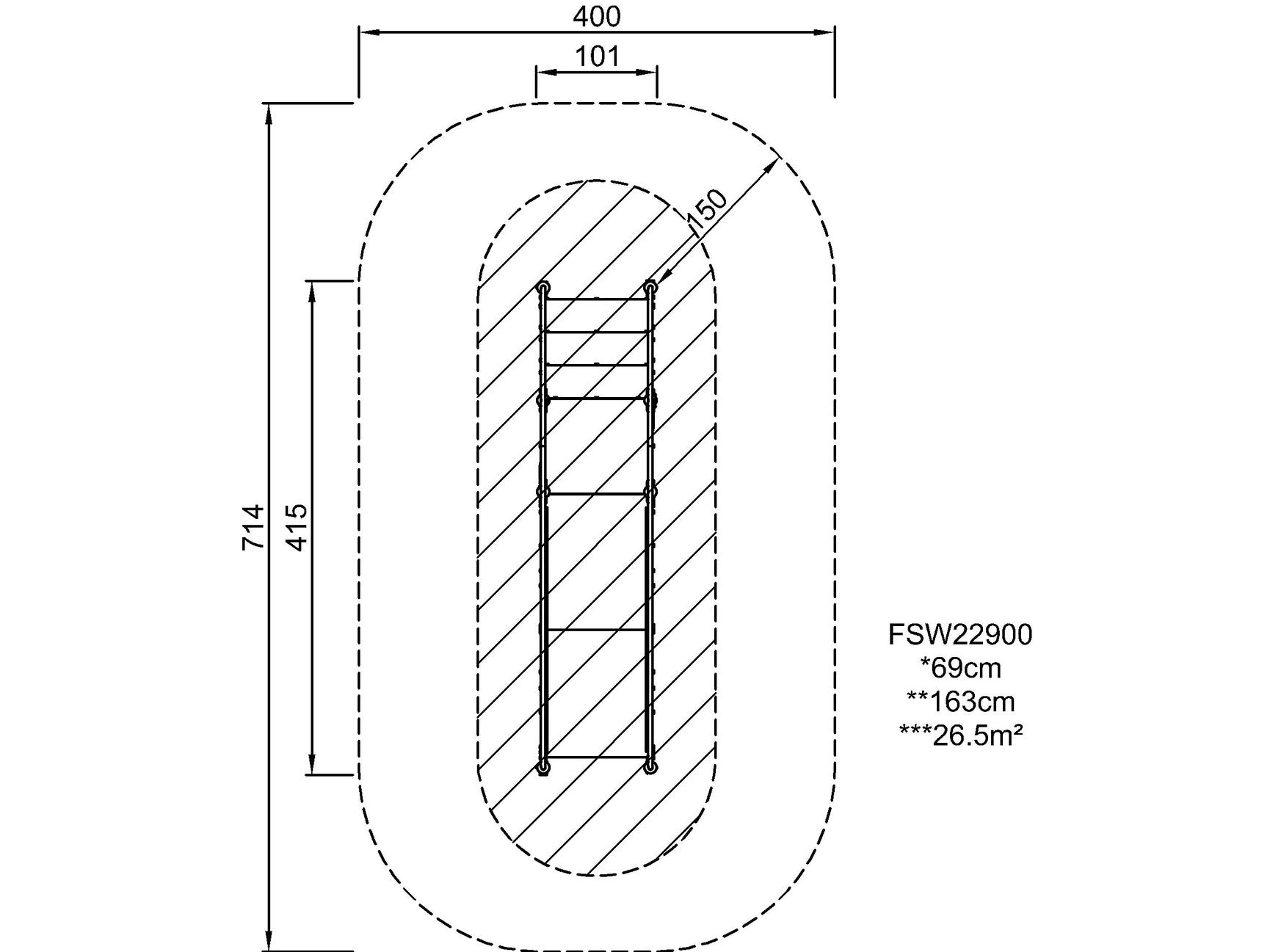

Foot Print (image)

길이

101 cm

너비

415 cm

높이

163 cm

사양

The stair and ramp resembles some common everyday obstacles. Walking on an inclining slope and overcoming stairs. The simplest use is just walking back and forth on the module, but with variations in the task, specific skills can be trained. For example focusing on balance by walking without hand support or focusing on strength and mobility by deliberately using as long steps a possible. The stairs are available in two different versions: normal stairs or steep stairs. These can also be used for simple effective exercises like step-ups and lunges. The ability to walk safely on an inclining or declining slope is very important for the elderly. If body posture is not correctly aligned with the surface, the risk of falling is increased. With support from the rails, this skill can be trained in a safe environment.

본 제품 Stairs & Ramp (FSW229)은 KOMPAN 대한민국에서 제공합니다.

오래 지속되는 품질

FSW_Steps

The Four-steps are 900x280mm and have a height of 171mm.

FSW_alu ramp

The ramp is mounted under a 15 degree angle and has a length of 2300mm. The ramp is made from 5mm aluminium plate with an anti-slip pattern.

PCM_Deck Alu profiles

All decks are supported by unique designed aluminium profiles with multiple attachment options by usage of pressure moulded aluminum connectors. The HPL decks with a thickness of 17.8mm with a very high wearing strength and a unique KOMPAN nonskid surface texture.

FSW_Railing hight

The railing height is 930mm and the distance between the railing is 900mm The material used for the railing is hot-dip galvanised steel ø38 mm, a great diameter for a good grip and wrist support.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Post

Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.

CO₂ 배출량

KOMPAN의 제품 및 지속 가능성 데이터 검증은 고객이 Bureau Veritas가 검증한 방법을 기반으로 정보에 입각한 지속 가능한 구매 선택을 할 수 있도록 지원합니다.

FSW22900-0902

935.23

총 CO₂ 배출량(kg CO₂e)

3.58

CO₂e/kg (kg CO₂e/kg)

39.08%

재활용 소재

이러한 요소에 적용되는 전반적인 프레임워크는 "제품의 수명 주기에 대한 환경 정보를 정량화하여 동일한 기능을 수행하는 제품 간의 비교를 가능하게 하는" 환경 제품 선언(EPD)입니다(ISO, 2006). 원자재부터 제조(A1-A3)에 이르는 전체 제품 단계에 전과정 평가 접근법을 적용합니다.
