FRE600901
MUGA, 18 x 26m, 3m High, Steel Wood Look
Age Group
3+ Years
Inclusive
Yes
Product category
FRE600901
MUGA, 18 x 26m, 3m High, Steel Wood Look
Specifications
MUGA, 18 x 26m, 3m High, Steel Wood Look
Wood Plastic Composite (WPC) has the same texture and appearance as wood. It is maintenance-free and environmental friendly. WPC fits perfectly into a natural environment. The fully flat inside gives the best bounce experience when playing. This flat wall becomes a part of the game and means the game can flow whilst adding another dimension that can challenge and develop players' tactical vision of the game. The 3m x 2m Multi-Goal follows the goal size of FIFA Futsal and IHF Handball regulations. The basketball hoop is placed at the official NBA height of 305 cm and has the official NBA size of 46 cm in diameter.
This product, MUGA, 18 x 26m, 3m High, Steel Wood Look (FRE600901), is provided by KOMPAN Australia.

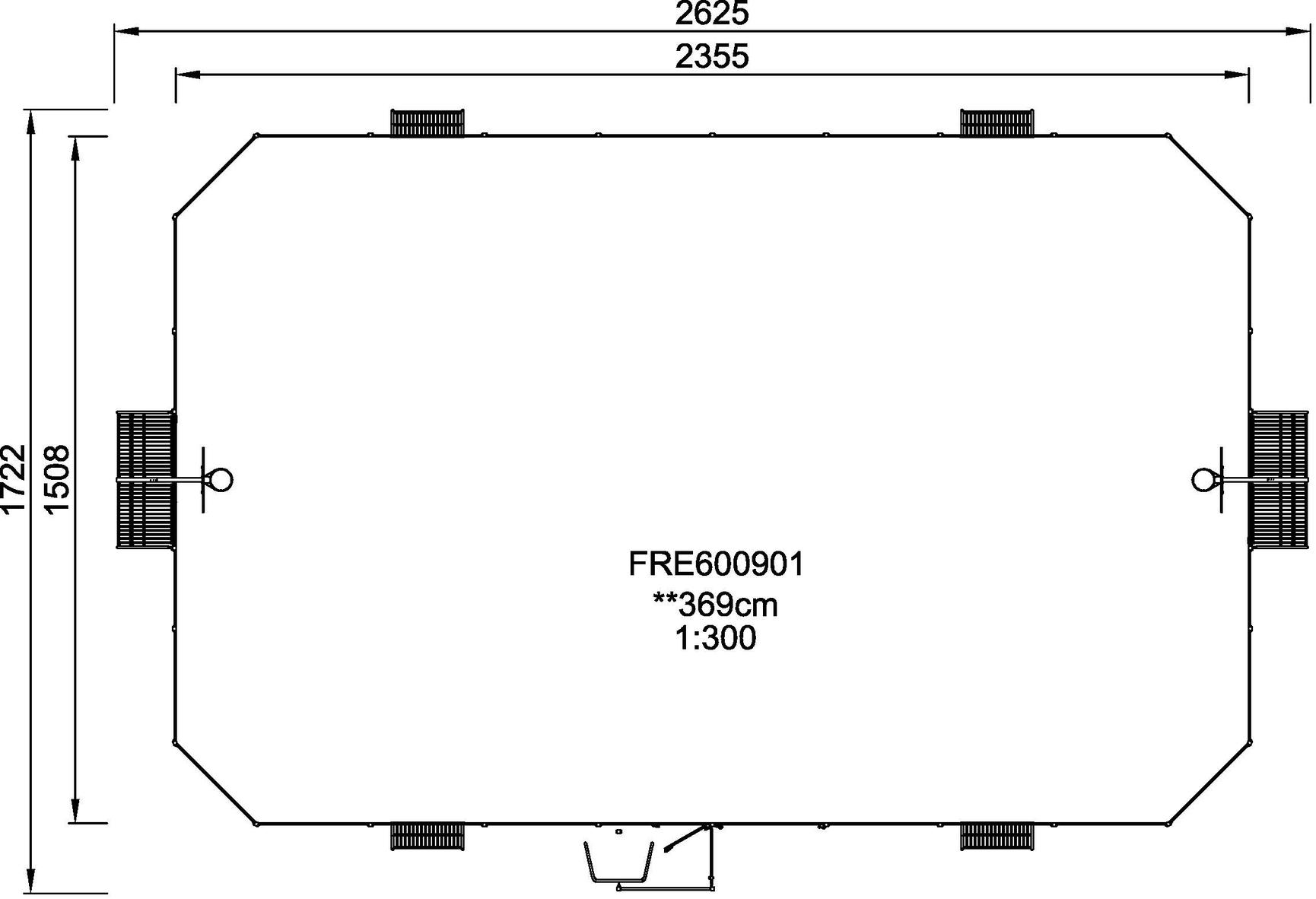

Length
2625 cm
Width
1780 cm

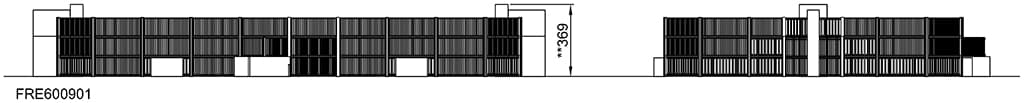

Height
369 cm
Age Group
3+ Years
Inclusive
Yes
Product category
Multisport
Product line
Multi Use Games Areas
Product Highlights
Quality that lasts
The Wood Plastic Composite panels are made of 100% recycled fibre/wood powder and High-Density Poly Ethylene (HDPE). With the dimensions of 860 x 110 x 30mm the boards are solid.
All steel components are manufactured from high-quality carbon steel and are hot-dip galvanised (HDG).
The Mini goals are 147 x 90cm and the distance between the vertical Ø 21.3mm tubes is 68mm, small enough to keep all balls in play. The goal is framed with coloured HDPE strips to highlight the target.
Each panel has 4 Thermoplastic Vulcanizates plugs connecting the panels to the posts. The plugs reduce the vibration and therefore reduce the noise level. The plugs will also simplify installation as they come with pre-assembled nuts.
The wheelchair entrance is constructed of 80 x 80 x 3mm post with Ø 48mm tube and two stainless steel 16mm hinges. The opening is 95cm wide and 112cm long, which allows wheelchair users to enter the MUGA with ease.
The WPC boards are attached to 70 x 45 x 3mm welded flanges with stainless steel M8 bolts, nuts and washers. These connections are not visible from the inside and create a safe and robust connection.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help our clients make informed, sustainable buying choices based on methods validated by Bureau Veritas.
FRE600901-0901
23640.03
Total CO₂ emission (kg CO₂e)
4.34
CO₂e/kg (kg CO₂e/kg)
53.79%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage, from raw material through manufacturing (A1-A3).
