COR10460
Quad Cube
Age Group
5+ Years
Capacity
45
Inclusive
No
Product category
COR10460
Quad Cube
Specifications

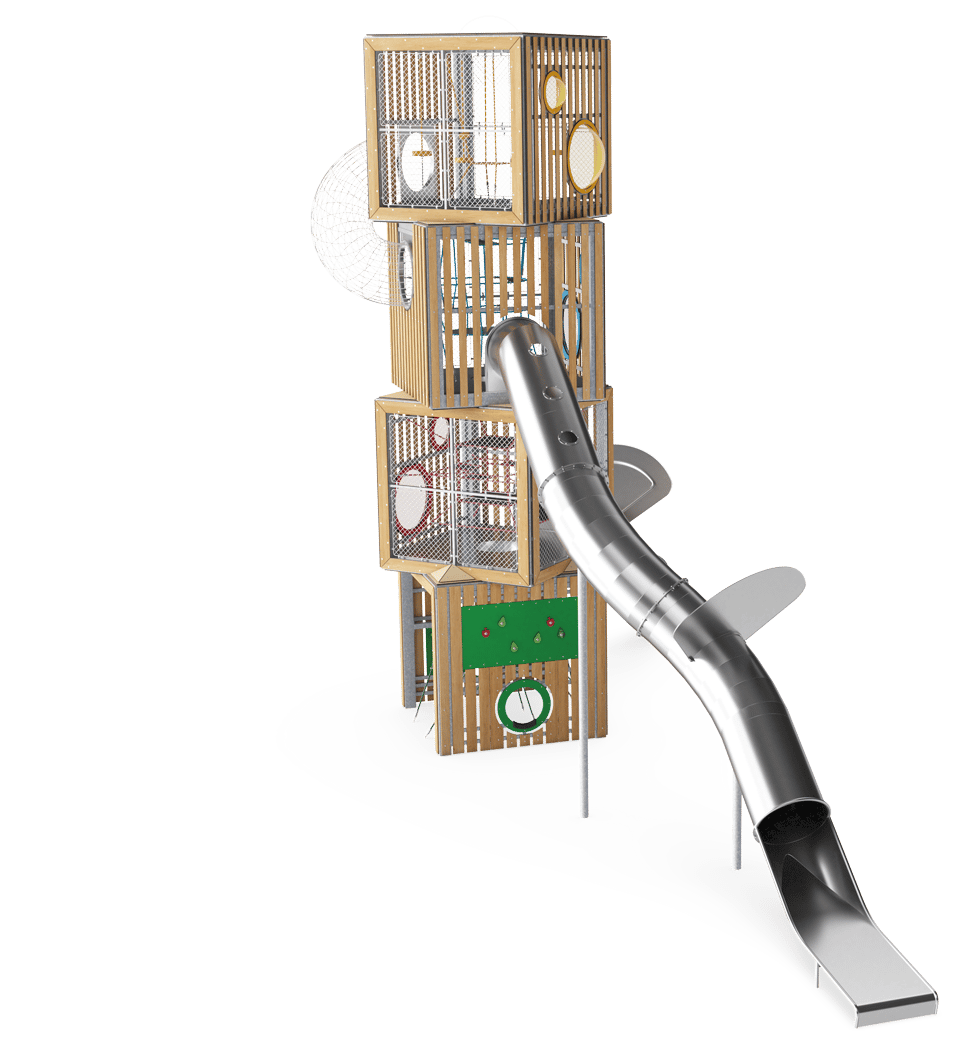

Quad Cube

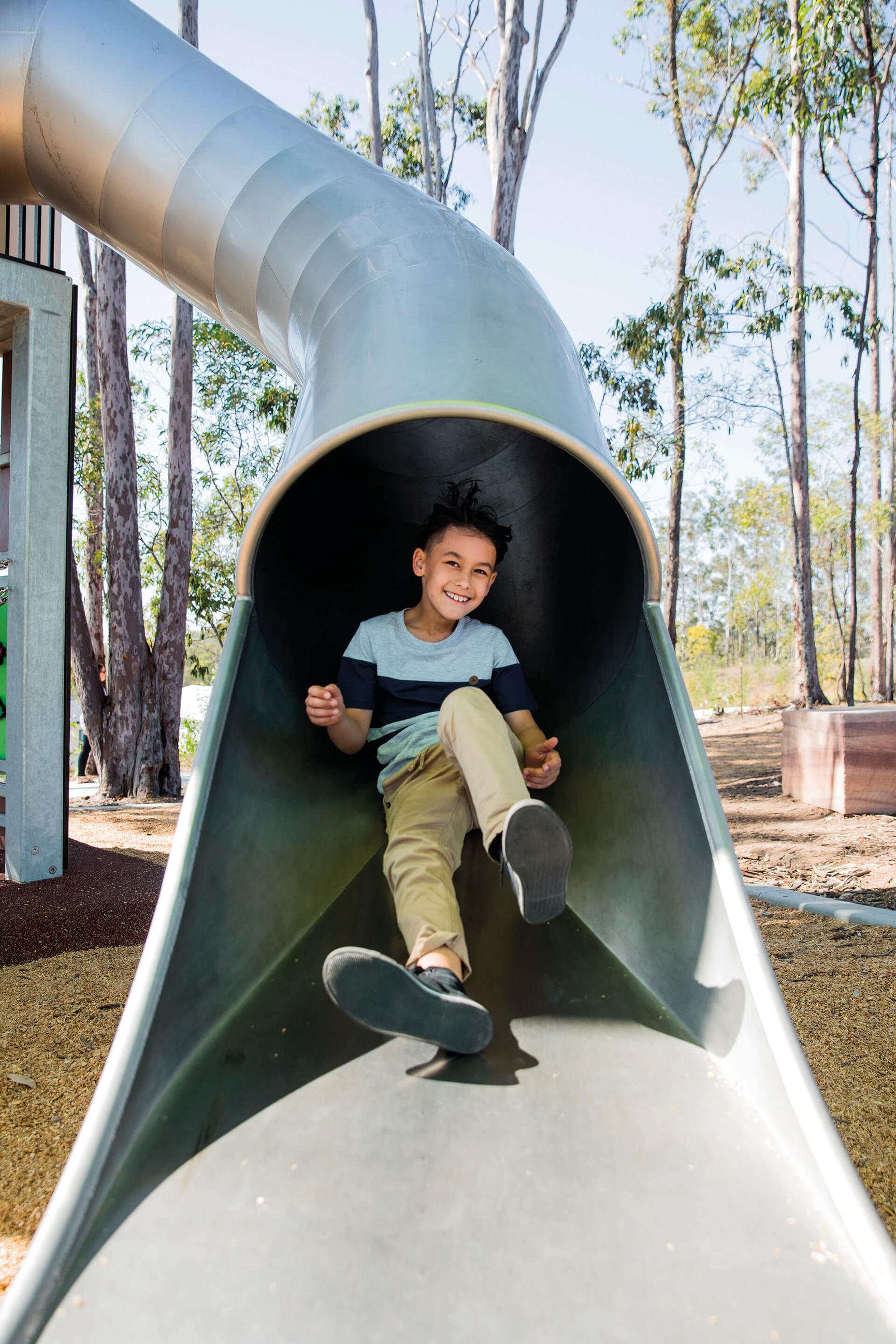

The Quad Cube will bring the WOW factor to any playground. At nine meters tall, children will want to climb and explore the Quad Cube as soon as they see it. The square frames with circular openings are fundamental play shapes that have fantastic play appeal. The multilevel activities will increase play duration and make children come back again and again. Climbing between levels in the varied net climbers, the child trains cross-coordination, proprioception and spatial awareness helping develop important life skills such as managing space. They build self-confidence, which supports self-esteem and the ability to make social relations. Climbing high and using the upper Quad Cube activities is a thrilling challenge that supports children's ability to judge risk and the stomach tickling climbs and slides provide for fun play with a purpose.
This product, Quad Cube (COR10460), is provided by KOMPAN Ireland.
Length
675 cm
Width
1426 cm
Height
922 cm
Safety Zone Length
886 cm
Safety Zone Width
1791 cm
Age Group
5+ Years
Key user group
5 - 12 Years
Capacity
45
Inclusive
No
Product category
Rope & Climbing Playgrounds
Product line
Corocord™ School-age
Product Highlights
Quality that lasts

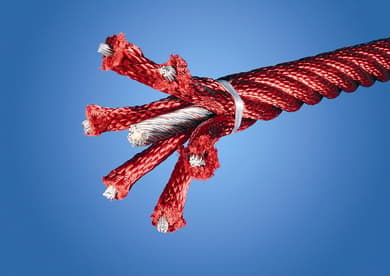

Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.

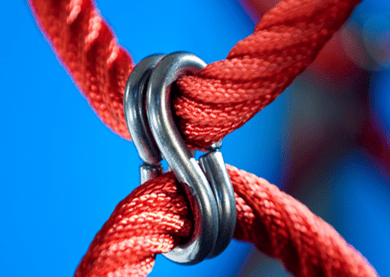

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The stainless steel components are made of high quality stainless steel in compliance with global playground standards. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.

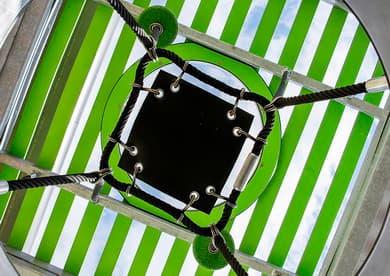

Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7.5 mm.

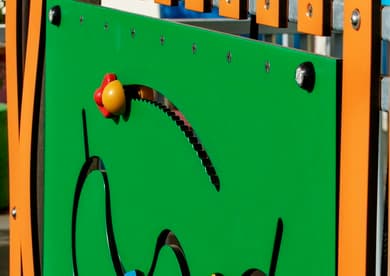

Panel of 19mm CircularHDPE. This highly durable, eco-friendly material is not only recyclable after use, but also consists of a core produced from 100% recycled material.

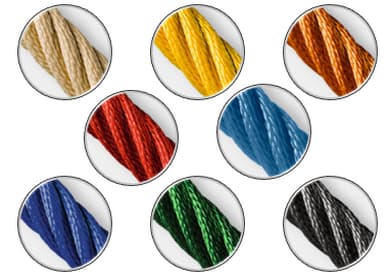

Through KOMPAN Variant Team, you can choose between additional 7 rope colours and customize your solution. The assortment is a wide span of colours ranking from elegant and expressive black or natural and toned-down hemp colour, to a range of attractive and eye-catching signal colours.
Play Activities
Balance
11
Bounce
6
Climb
14
Construct
17
Crawl
6
Hang in arms
4
Sensory
11
Slide
2
Socialize
15
Sway
6
Wonder
13
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR104601-0499
32214.31
Total CO₂ emission (kg CO₂e)
4.19
CO₂e/kg (kg CO₂e/kg)
47.62%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
