COR10460

Quad Cube

Try our AR-app

Quad Cube

Colour ROBINIA UNT. WOOD

The Quad Cube will bring the WOW factor to any playground. At nine meters tall, children will want to climb and explore the Quad Cube as soon as they see it. The square frames with circular openings are fundamental play shapes that have fantastic play appeal. The multilevel activities will increase play duration and make children come back again and again. Climbing between levels in the varied net climbers, the child trains cross-coordination, proprioception and spatial awareness helping develop important life skills such as managing space. They build self-confidence, which supports self-esteem and the ability to make social relations. Climbing high and using the upper Quad Cube activities is a thrilling challenge that supports children's ability to judge risk and the stomach tickling climbs and slides provide for fun play with a purpose.
Photos
Photos
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Bubble Window

Social-Emotional

invites interaction between outside and inside.

Cognitive

distorts the sound of the voice, developing logical thinking.

See-through net walls

Social-Emotional

adds a feeling of thrill.

Cognitive

understanding of space and distances when looking out from the varied levels of the cubes.

Wire frame tunnel

Physical

the steep climb in open space trains spatial awareness, cross coordination and muscle strength.

Social-Emotional

sense of height and thrill, turn-taking and consideration of others.

Membrane

Physical

the bouncy membrane develops the sense of balance when the child stands, steps or sits here. A faster way up, due to the extra support of the membrane.

Social-Emotional

a meeting point for retreat from the rope landscape.

Crawl-through hole

Physical

the hole allows for climbing and crawling through, developing cross coordination, proprioception and spatial awareness.

Social-Emotional

cooperation and turn-taking when passing one another.

Cognitive

understanding space, shape and measures when seeing if the body can fit through the hole.

Long tube slide

Physical

sliding develops spatial awareness and the sense of balance.

Social-Emotional

the height ensures extra speed and thrill. Empathy stimulated by turn-taking and consideration of others. Feeling of security when stopping on extra long slide mouth.

Wheels and arrow panel

Social-Emotional

invites cooperation due to the two-sidedness and provides for group and parallel play.

Cognitive

the rotating elements stimulate cause and effect understanding and logical thinking.

5 - 12 Years45 Users

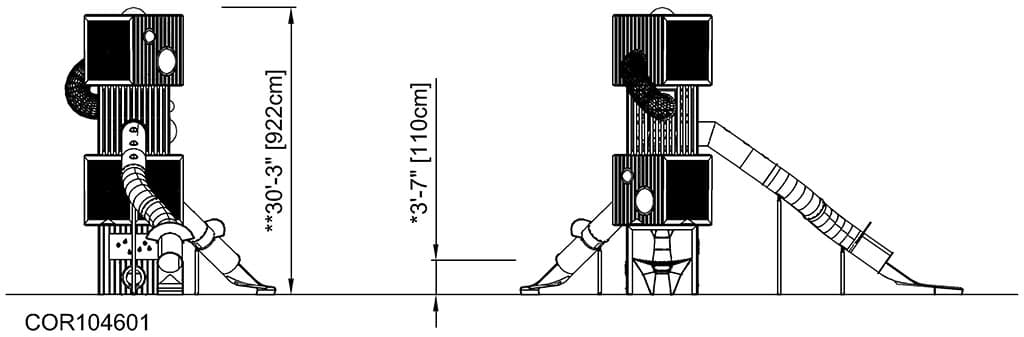

Side View (image)

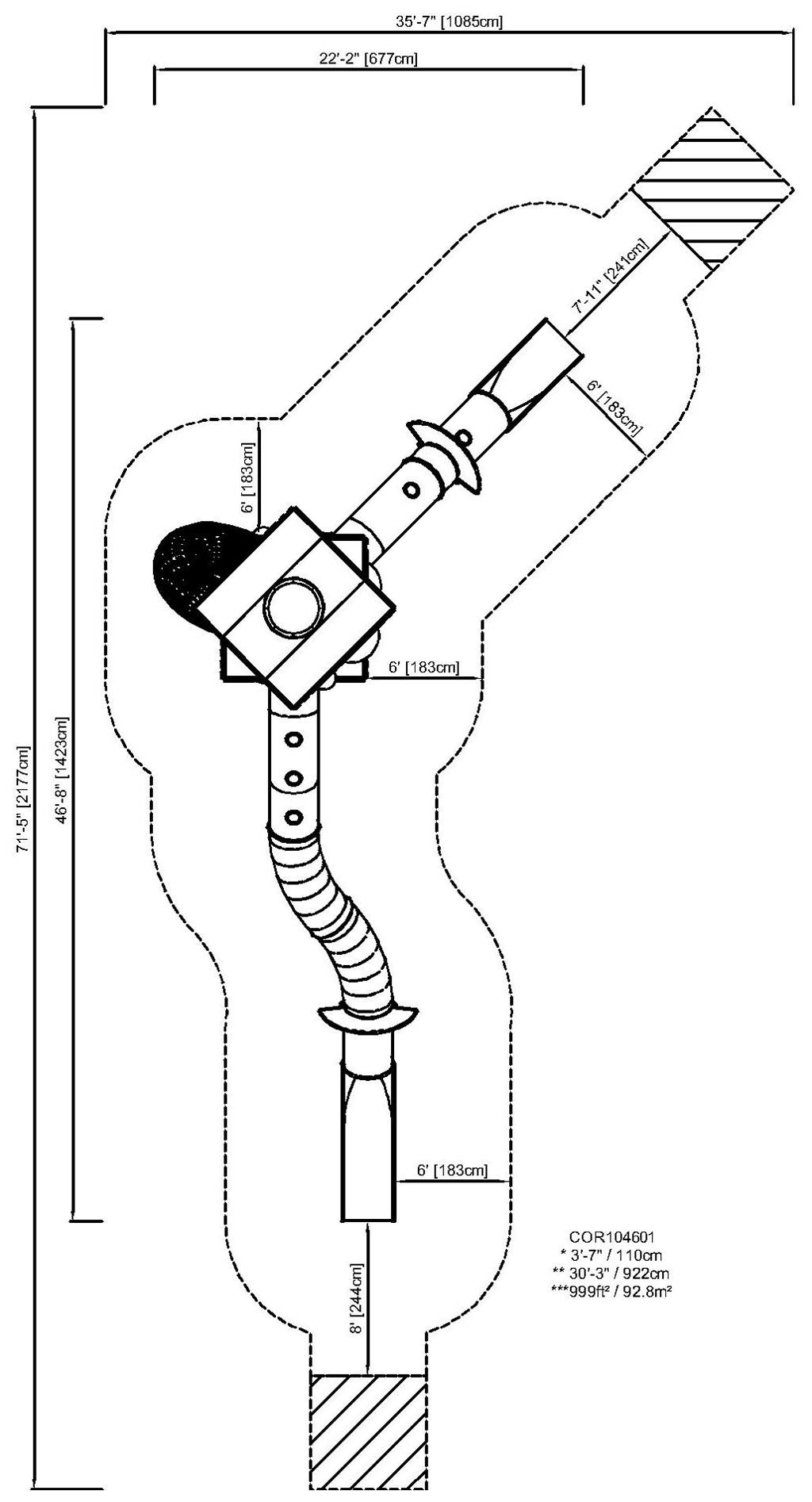

Foot Print (image)

Length

675 cm

Width

1426 cm

Height

922 cm

Specifications

The Quad Cube will bring the WOW factor to any playground. At nine meters tall, children will want to climb and explore the Quad Cube as soon as they see it. The square frames with circular openings are fundamental play shapes that have fantastic play appeal. The multilevel activities will increase play duration and make children come back again and again. Climbing between levels in the varied net climbers, the child trains cross-coordination, proprioception and spatial awareness helping develop important life skills such as managing space. They build self-confidence, which supports self-esteem and the ability to make social relations. Climbing high and using the upper Quad Cube activities is a thrilling challenge that supports children's ability to judge risk and the stomach tickling climbs and slides provide for fun play with a purpose.

This product, Quad Cube (COR10460), is provided by KOMPAN Canada.

Key Features

COR_rope 19mm+

Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.

COR_S-clamps

Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.

COR_st steel slide

The stainless steel components are made of high quality stainless steel in compliance with global playground standards. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.

COR_membranes

Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7.5 mm.

COR_EcoCore

Panel of 19mm EcoCore™ HDPE. This highly durable, eco-friendly material is not only recyclable after use, but also consists of a core produced from 100% recycled material.

COR_8 rope colors

Through KOMPAN Variant Team, you can choose between additional 7 rope colours and customize your solution. The assortment is a wide span of colours ranking from elegant and expressive black or natural and toned-down hemp colour, to a range of attractive and eye-catching signal colours.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

COR104601-0499

22194.7

Total CO₂ emission (kg CO₂e)

2.84

CO₂e/kg (kg CO₂e/kg)

45.4%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
