COR29960

Surfer, Optic

QR Code for Kompan EN/INT frontpage

Try our AR-app

Surfer, Optic

Colour METAL GREY

Loading Designer
The Optic Surfer is a novel sensory activity: a place for visual amazement, wonder and logical thinking which attract children for a break. There are three different moiré effects and two dichroic panels. The moiré panels fascinate with their patterns that look different from the first glance and to the focused look at them. Children report that they get curious about the reason for the patterns behaving differently, and not least they debate why not everyone can see the patterns. This makes for negotiation, explaining and helping others out, a great training in cooperation and team- work that supports these skills in school. The dichroic panels intrigue children with their colour changes, highly depending on the surrounding lights. The rainbow colours throw colourful shadows on the ground and light up friends faces with their colour-changing reflections. The optic panels of the Surfer make children wonder, think and seek explanations for the phenomena they register.
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Moiré optic panels

Physical

sitting, hanging and leaning on the rope suspended panels train balance and cross-coordination.

Social-Emotional

discussing the patterns and reasoning with others supports negotiating and listening skills, training tolerance and empathy.

Cognitive

wondering about, understanding and explaining the reasons for the pattern occurrence support logical thinking skills.

Dichroic panels

Physical

hanging and leaning on the rope-suspended panels train muscles, balance and cross-coordination.

Social-Emotional

twisting the panels to create colorful shadows encourage turn-taking and cooperation skills.

Cognitive

wondering about, understanding and explaining the reasons for the color occurrence support logical thinking skills.

4 - 12 Years6 Users

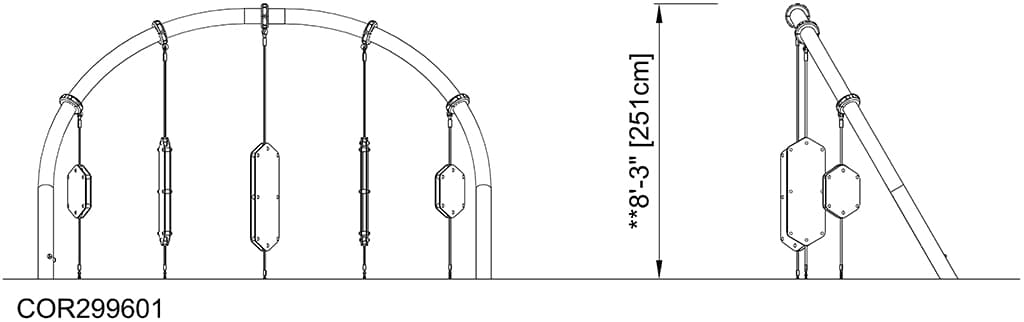

Side View (image)

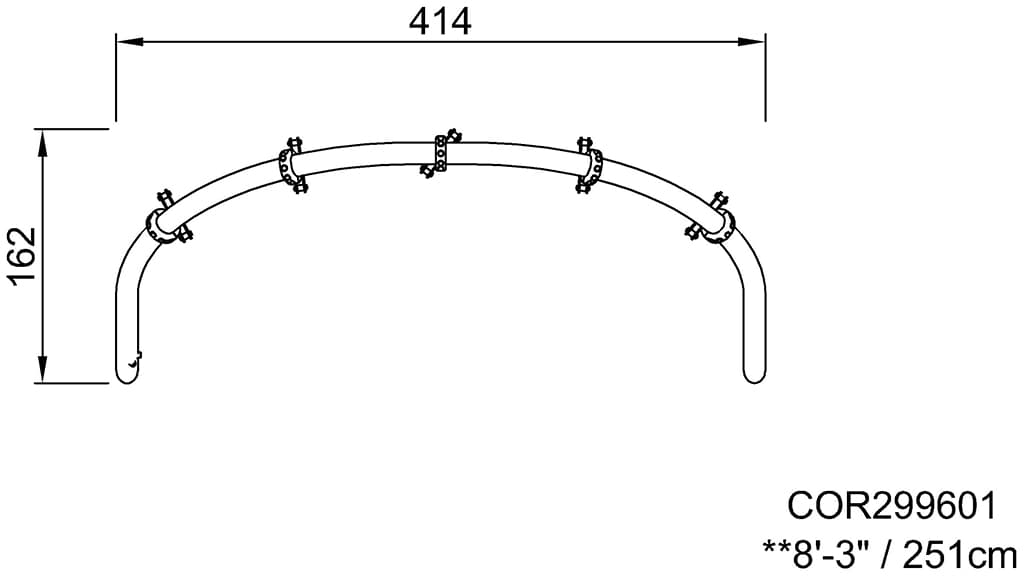

Foot Print (image)

Length

414 cm

Width

162 cm

Height

251 cm

Specifications

The Optic Surfer is a novel sensory activity: a place for visual amazement, wonder and logical thinking which attract children for a break. There are three different moiré effects and two dichroic panels. The moiré panels fascinate with their patterns that look different from the first glance and to the focused look at them. Children report that they get curious about the reason for the patterns behaving differently, and not least they debate why not everyone can see the patterns. This makes for negotiation, explaining and helping others out, a great training in cooperation and team- work that supports these skills in school. The dichroic panels intrigue children with their colour changes, highly depending on the surrounding lights. The rainbow colours throw colourful shadows on the ground and light up friends faces with their colour-changing reflections. The optic panels of the Surfer make children wonder, think and seek explanations for the phenomena they register.

This product, Surfer, Optic (COR29960), is provided by KOMPAN Canada.

Key Features

COR Optic Panels

<p>Turnable optic panels of two 7mm thick polycarbonate plates with a distance of 40mm. The inside graphic print consist of an inner image layer and outer transparent protection layer. Both PC panel and the water-based lacquer are UV stabilized to prevent fading of the print.</p>

PCX_HDG Steel surfaces

The steel surfaces are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.

COR_alu clamps

Corocord aluminium clamps are used as connectors between steel posts and rope. Two aluminium castings are bolted together. The height of the clamps is thus variable.

COR Rope and S-Clamps

Corocord ropes with 19mm diameter or more are special 'Hercules' - type with galvanized six-stranded steel wires. Each strand is tightly wrapped with PES yarn. The ropes are connected by stainless steel S-Clamps which are pressed around the rope which results in a durable and vandalism solution.

Dichroic Panels

Please note: Dichroic film is a reflective material. As the sun moves around a product, there will be reflections to the environment around, which can be quite bright when the sun is at a certain angle. But as the sun moves, so will the reflections.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

COR299601-0406

1014.4

Total CO₂ emission (kg CO₂e)

3.29

CO₂e/kg (kg CO₂e/kg)

43.1%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
