The Butterfly is a transparent, social climbing magnet for children. The elegantly curved wings with their twisted climbs invite climbing try-outs again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the Butterfly, and from ground level to top. This adds social interaction and a possibility for cooperation and sharing. The twisted blue membranes on top add a fun, Glide-feel destination for meeting. Climbing the Butterfly trains cross-coordination and balancing techniques, which stimulate the child’s ability to control movements, and ultimately to move confidently through the world. The visible heights add thrill. There are faster and slower ways across and up into the Butterfly: Curved Climbers add fast access to the top frame. On ground level two blue Loops invite fun, swaying meetings, two, four or more together.
照片仅供概念参考，可能会有偏差。
高品质质量
游戏舱设计为两个钢环的焊接框架，这些钢环经过热浸镀锌和粉末涂层处理。软膜由输送带质量的抗磨橡胶材料制成，具有出色的抗紫外线性。
Corocord软膜使用输送带质量的抗磨橡胶材料制成，具有出色的抗紫外线性。经过测试并符合PAH的REACH要求。内嵌物为聚酯编织物制成的四层铠装。铠装层和两个表面层的总厚度为7.5 mm。
彩色钢部件具有热浸镀锌的基础和粉末涂层的顶部涂层 这在世界各地的所有气候条件下都具有极高的耐腐蚀性。其他钢表面在内部和外部均用无铅锌进行热浸镀锌。
直径大于等于19mm的Corocord绳索是特殊的“大力神”型镀锌六股钢丝。每根丝束都用PES纱紧密包裹，然后将其熔化到每根独立的丝束上。这些绳索具有很高的耐磨性和防破坏性，可以根据需要在现场更换。
Corocord“S”扣在Corocord产品中作为通用连接。用特殊的液压机将带有圆形边缘的8mm不锈钢条压在绳索周围，使其成为理想的连接部件。其安全、耐用且防破坏，适用于攀爬网游戏结构中的典型游戏运动。
绳索通过独特的KOMPAN设计的拧紧解决方案固定在大型钢管上。它由内部和外部尼龙（PA6）衬套组成，该衬套将绳索引导到拉紧绳索的外部带螺纹不锈钢零件上。

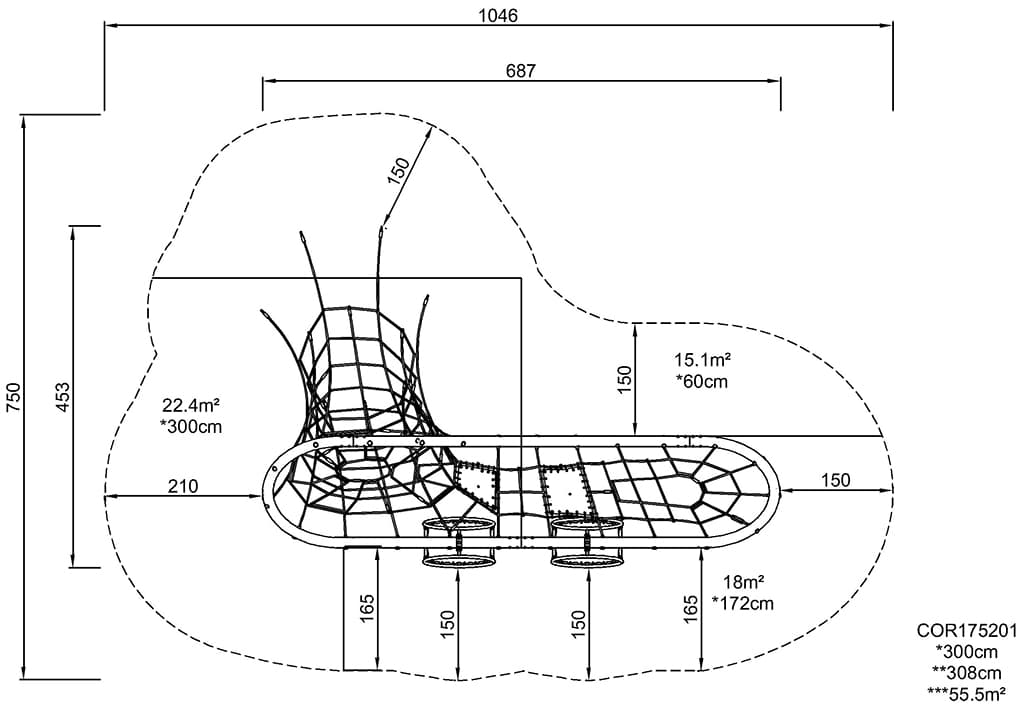

长度
687 cm
宽度
453 cm

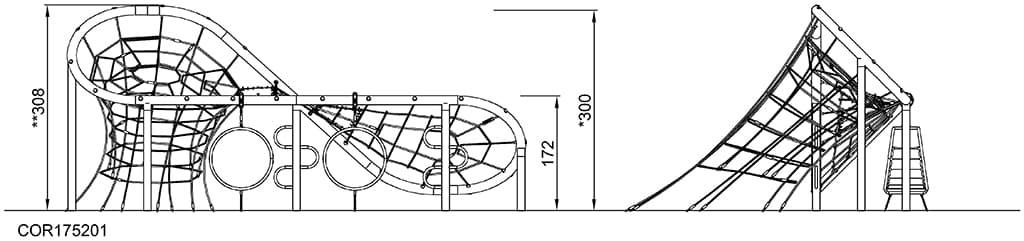

高度
308 cm
规格
The Butterfly is a transparent, social climbing magnet for children. The elegantly curved wings with their twisted climbs invite climbing try-outs again and again. Thanks to the transparency of the Butterfly nets, the children can see each other and communicate across the Butterfly, and from ground level to top. This adds social interaction and a possibility for cooperation and sharing. The twisted blue membranes on top add a fun, Glide-feel destination for meeting. Climbing the Butterfly trains cross-coordination and balancing techniques, which stimulate the child’s ability to control movements, and ultimately to move confidently through the world. The visible heights add thrill. There are faster and slower ways across and up into the Butterfly: Curved Climbers add fast access to the top frame. On ground level two blue Loops invite fun, swaying meetings, two, four or more together.
本产品[产品名称]([产品参考])由KOMPAN[国家]提供。
二氧化碳排放
根据必维国际检验集团验证，我们的产品和可持续发展数据验证可帮助客户做出明智的可持续购买选择。
COR175201-0412
3051.7
总二氧化碳排放量（千克二氧化碳当量）
2.83
CO₂e/kg (kg CO₂e/kg)
46.7%
回收材料
适用于这些因素的总体框架是环境产品声明 (EPD)，它量化了“关于产品生命周期的环境信息，并能够对具有相同功能的产品进行比较”（ISO，2006 年）。这遵循结构并将生命周期评估方法应用于从原材料到制造的整个产品阶段 (A1-A3)。
