PCE111131

Logan

QR Code for Kompan EN/INT frontpage

Try our AR-app

Logan

Colour MEDIUM GREEN

Loading Designer
Wow! The Logan is a fantastic structure that will thrill children. With play on all sides, children will enhance their development in all areas, and they will play for longer times. Physical development will be supported by the rich variation of climbing, sliding, spinning, and gliding. These all strengthen muscles and build important motor skills such as cross-coordination. The wall climber and climbing pole are especially attractive and fun for children when they are building their climbing skills and strength. These experiences are also enhanced by the design of the Logan which encourages social-emotional play and cooperation. With room for many to play, the Logan supports social skills. The accessible stairway invites all in, and the room under the platforms is a nice place to retract from the wilder gliding and sliding play. The Logan perfectly supports all areas of development through active play.
Photos
Photos

The products might not be exactly as shown

Play Value

Play value is the value gained from play, the value that makes the child “want” or developmentally “need” to undertake the activity and thus gives the play item holding power. Play value can be described very precisely in developmental terms, looking into the human physical, cognitive, social and emotional developmental stages.

Learn more

Accessible stairway

Physical

climbing the accessible stairway is for all and supports cross coordination as well as arm and leg muscles. For young children, walking stairs and alternating feet is developed.

Social-Emotional

room for active breaks and adult helpers. An inclusive space.

Supportive handholds

Physical

handhold provides good grip for less confident climbers. Pulling yourself up and in trains upper body muscles.

Social-Emotional

allows for a range of physical abilities to enter independently and securely, supporting play for all.

Curved slide

Physical

sliding develops spatial awareness and a sense of balance. Furthermore, the core muscles are trained when sitting upright going down.

Social-Emotional

empathy stimulated by turn-taking.

Fireman's pole

Physical

coordination is supported when going down, as well as arm and core muscles. Landing strengthens bone density, which is built for life in early childhood.

Social-Emotional

turn-taking and risk-taking.

Climbing pole

Physical

develops children's cross coordination, eye-hand coordination and muscle strength when climbing up or down.

Social-Emotional

turn-taking and self-regulation are trained, both important life skills.

Somersault bar

Physical

develop balance and core when hanging from knees. Arm, leg and core muscles are developed when climbing up, somersaulting around. Balance and spatial awareness are strengthened.

Social-Emotional

meeting, socializing and turn-taking when climbing up and down via bar.

Hammock

Physical

coordination and sense of balance when swaying.

Social-Emotional

meeting, pushing friends gently back and forth, turn-taking.

Wall climber

Physical

climbing supports cross coordination, proprioception, and the development of major muscle groups and hand strength.

Social-Emotional

two-sided climbing spurs social interaction and turn-taking.

5 - 12 Years14 Users

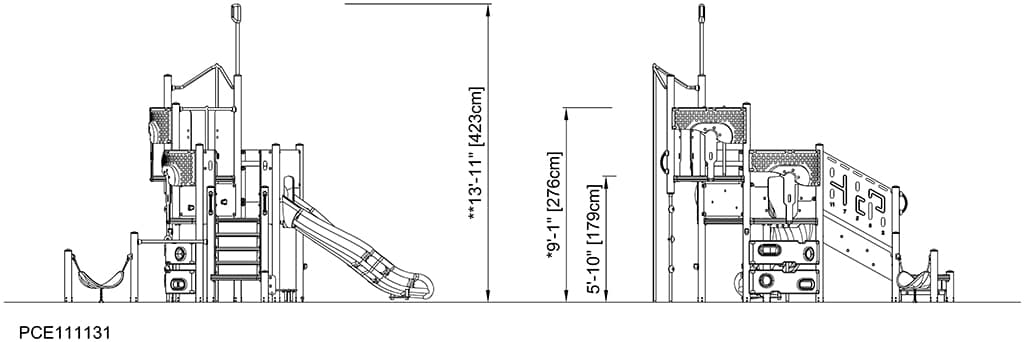

Side View (image)

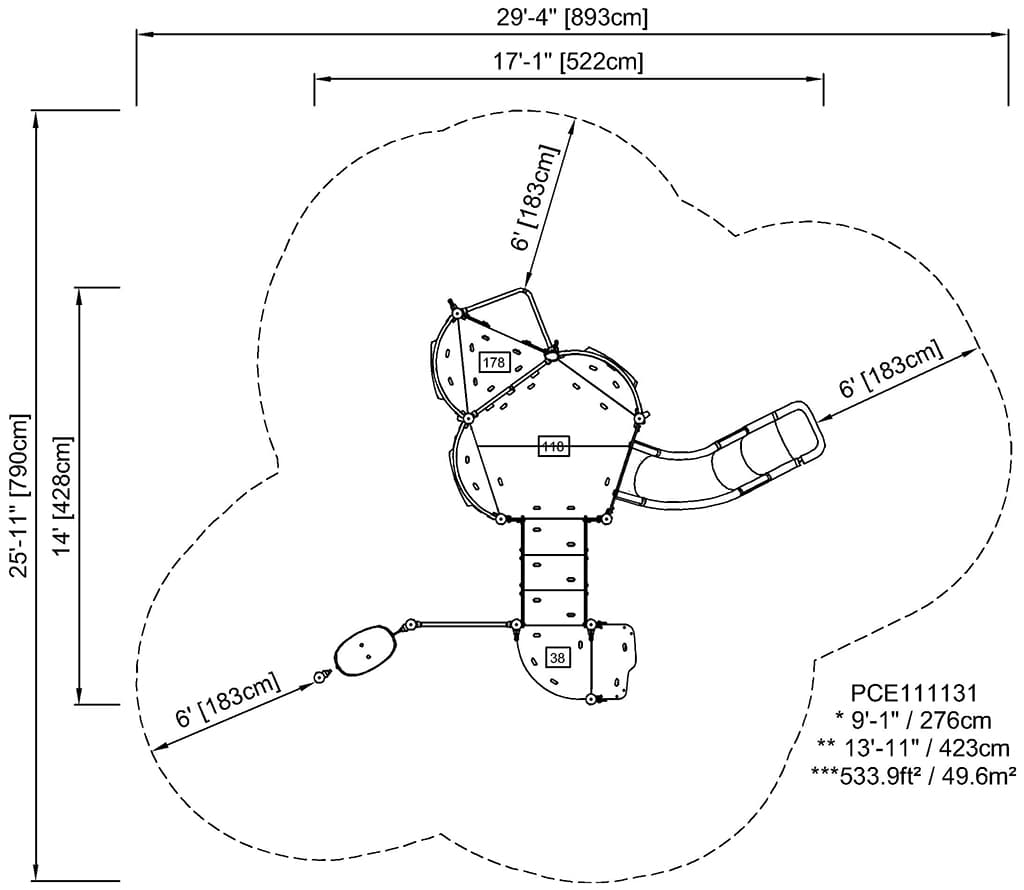

Foot Print (image)

Length

522 cm

Width

428 cm

Height

423 cm

Specifications

Wow! The Logan is a fantastic structure that will thrill children. With play on all sides, children will enhance their development in all areas, and they will play for longer times. Physical development will be supported by the rich variation of climbing, sliding, spinning, and gliding. These all strengthen muscles and build important motor skills such as cross-coordination. The wall climber and climbing pole are especially attractive and fun for children when they are building their climbing skills and strength. These experiences are also enhanced by the design of the Logan which encourages social-emotional play and cooperation. With room for many to play, the Logan supports social skills. The accessible stairway invites all in, and the room under the platforms is a nice place to retract from the wilder gliding and sliding play. The Logan perfectly supports all areas of development through active play.

This product, Logan (PCE111131), is provided by KOMPAN Canada.

Key Features

PCE_Curved Panels

The Curved ELEMENTS panels are moulded of UV stabilised recyclable PE using 33% post-consumer recycled material. With multiple options for in-build play features that also ensures a strong panel solution. Straight panels are made of KOMPAN 19mm HDPE EcoCore™ which is a highly durable, ecofriendly and recyclable material made from +95% PCM.

PCE_Climbing Elements

The climbing elements displayed are moulded from 33% post-consumer recycled materials in one piece, with a minimum 5mm wall thickness. The climbing elements are made of recyclable PE which has a high impact resistance across a wide temperature span which ensures vandal resistance in all locations.

PCE_Roof

The ELEMENTS roofs are made of recyclable PE made from 33% post consumer recycled materials with a minimum wall thickness of 5 mm to ensure high durability in all climates around the world. The steel pipes are hot dip galvanised inside and outside for maximum durability.

PCE_Rope

ELEMENTS ropes has six-stranded steel wires and a steel wire core. Each strand is tightly wrapped with PES yarn, which is made from +95% post consumer materials. The yarn is then melted onto each individual strand making the ropes highly wear- and vandalism-resistant.

PCE_Membrane

ELEMENTS rubber membranes are conveyer belt made of layers of rubber mixed of natural rubber and SBR rubber, and embedded with layers of armouring made of woven PE and PA. The thickness 8mm ensures high durability in any environment.

Elements Essentials Posts & PP Decks

The main posts are made of high quality pregalvanized steel with powder coated top finish. Post tops are closed with caps of UV stabilized nylon (PA6). The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface. All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCE111131-0903

1331.08

Total CO₂ emission (kg CO₂e)

2.64

CO₂e/kg (kg CO₂e/kg)

52.28%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
