PCE105131

Sherpa

Try our AR-app

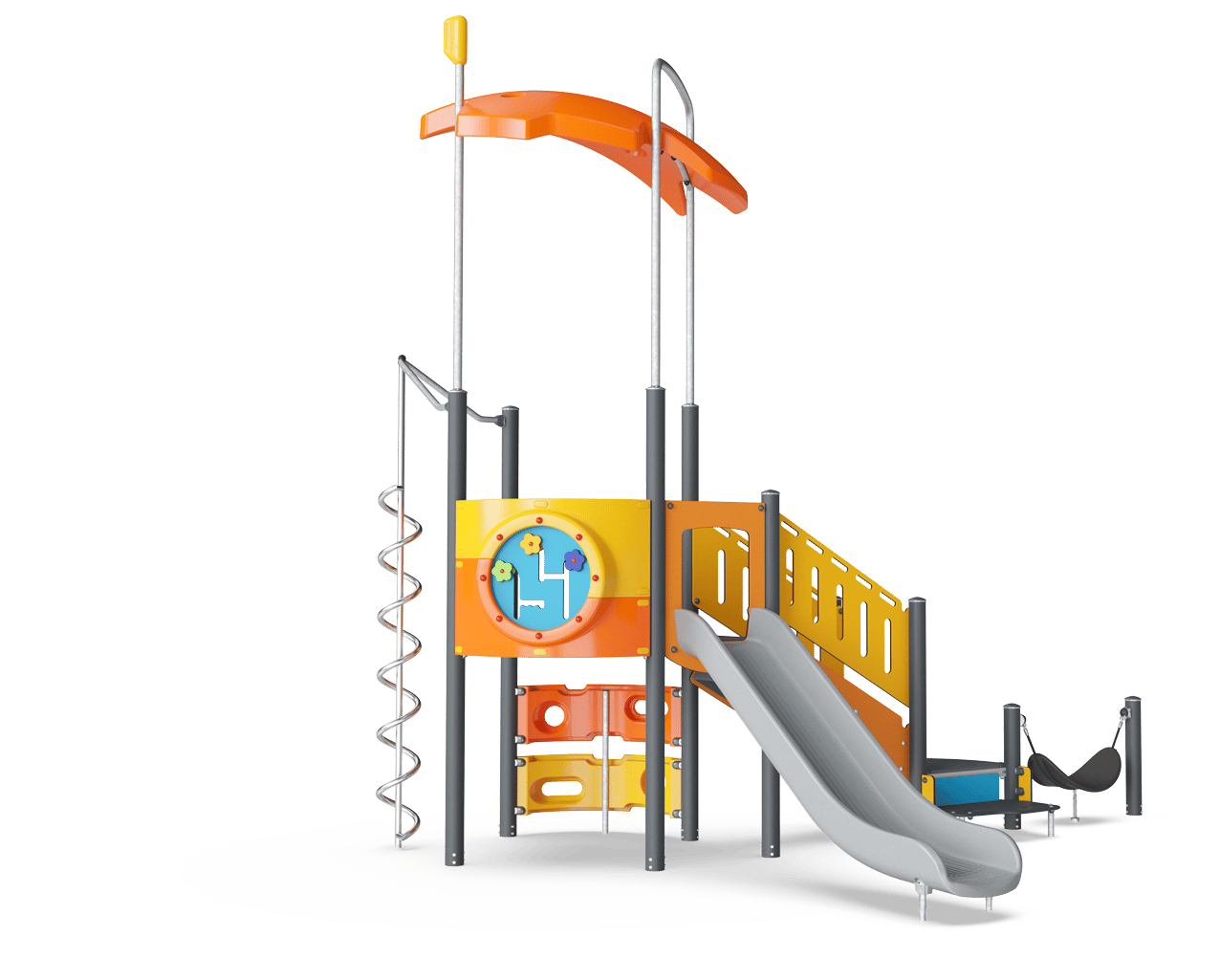

Sherpa

Colour MEDIUM GREEN

The combination of climbing, swaying and sliding is a recipe for great fun. The Sherpa invites children and the variety of play activities makes them come back again and again. An accessible stairway offers an easy entry to the platform. The climbing panels add more muscle and cross-coordination training options. From the platform, a stomach-tickling slide ride or a rotating glide brings the child back to ground level, supporting important motor skills such as spatial awareness. This is important when judging distances and managing obstacles safely. The hammock at ground level can be used by all, either as a seat or for lying on tummies. The Sherpa supports a variety of physical skills and additionally the tactile flower panel develops fine motor skills and an understanding of cause-and-effect.
Photos
Photos

The products might not be exactly as shown

Key Features

PCE_Curved Panels

The Curved ELEMENTS panels are moulded of UV stabilised recyclable PE with multiple options for in-build play features that also ensures a strong panel solution. Straight panels are made of KOMPAN 19mm PE EcoCore™ which is a highly durable, ecofriendly and recyclable material.

PCE_Climbing Elements

The climbing elements displayed are moulded in one piece with a minimum 5mm wall thickness. The climbing elements are made of recycable PE which has a high impact resistance across a wide temperature span which ensures vandal resistance in all locations.

PCE_Roof

The ELEMENTS roofs are made of recyclable PE with a minimum wall thickness of 5 mm to ensure high durability in all climates around the world. The steel pipes are hot dip galvanised inside and outside for maximum durability.

Elements Essentials Posts & PP Decks

The main posts are made of high quality pre-galvanized steel with powder coated top finish. Post tops are closed with caps of UV stabilized nylon (PA6). The grey colored molded decks are made of 75% post-consumer ocean waste PP material with a non-skid pattern and texture surface. All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options.

PCE_Membrane

ELEMENTS rubber membranes are conveyer belt made of layers of rubber mixed of natural rubber and SBR rubber, and embedded with layers of armouring made of woven PE and PA. The thickness 8mm ensures high durability in any environment.

PCE_Rope

ELEMENTS ropes has six-stranded steel wires and a steel wire core. Each strand is tightly wrapped with PES yarn, which is melted onto each individual strand. After initial friction has removed the surface fibers, a harder PES coating remains to protect each strand, making the ropes highly wear- and vandalism-resistant.

2 - 5 Years13 Users

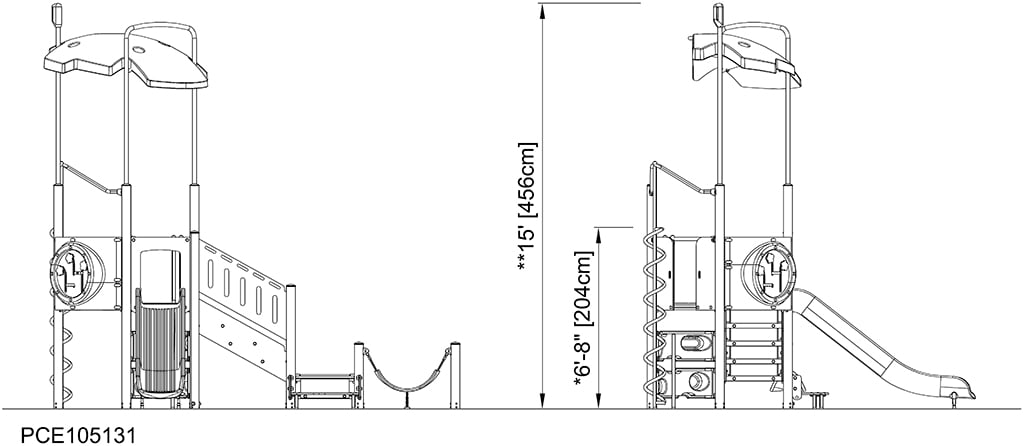

Side View (image)

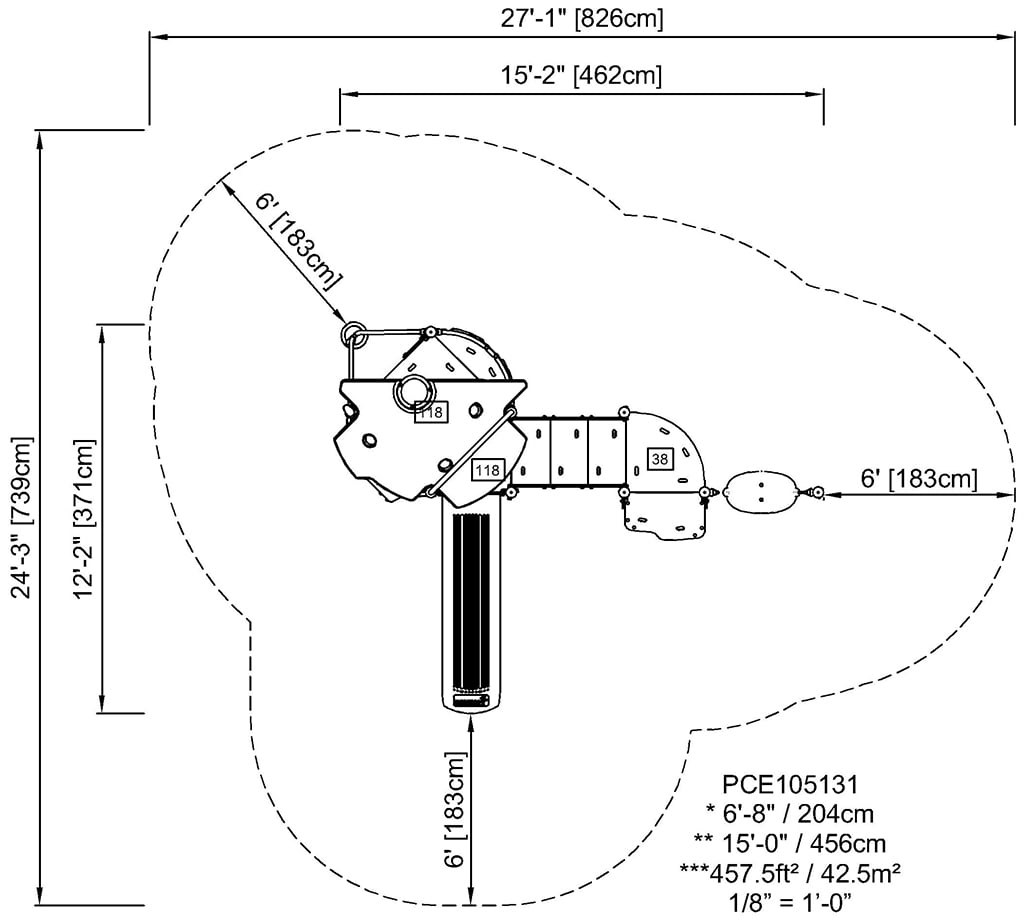

Foot Print (image)

Length

462 cm

Width

371 cm

Height

456 cm

Specifications

The combination of climbing, swaying and sliding is a recipe for great fun. The Sherpa invites children and the variety of play activities makes them come back again and again. An accessible stairway offers an easy entry to the platform. The climbing panels add more muscle and cross-coordination training options. From the platform, a stomach-tickling slide ride or a rotating glide brings the child back to ground level, supporting important motor skills such as spatial awareness. This is important when judging distances and managing obstacles safely. The hammock at ground level can be used by all, either as a seat or for lying on tummies. The Sherpa supports a variety of physical skills and additionally the tactile flower panel develops fine motor skills and an understanding of cause-and-effect.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCE105131-0603

1155.9

Total CO₂ emission (kg CO₂e)

2.79

CO₂e/kg (kg CO₂e/kg)

40.2%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
