CRP252301
Cottontop Trail
Age Group
5 - 12 Years
Capacity
64
Product category
CRP252301
Cottontop Trail
Specifications
Cottontop Trail
The Cottontop Trail provides thrilling, responsive challenges for children. The variety of play activities make them want to come back again and again for more fun. The nets act as a big trim trail and encourage games such as "the ground is made of lava". Lots of responsive, swaying and bouncing nets demand concentrated movement, adjusting for different rhythms of climbing. The nets train agility, balance and coordination skills, the ABC of motor skills, in an immensely fun way. Apart from being great fun, the horizontal net, Swaying Bridge and Shaky Pods allow children to take a break and socialise or cooperate together to move around the structure. This develops important social-emotional skills such as turn-taking, helping and sharing. The bouncy, swaying range of challenging play makes the Cottontop Trail a high retention play event that manages to support children's development through fun play.
This product, Cottontop Trail (CRP252301), is provided by KOMPAN Canada.
Length
1868 cm
Width
1081 cm

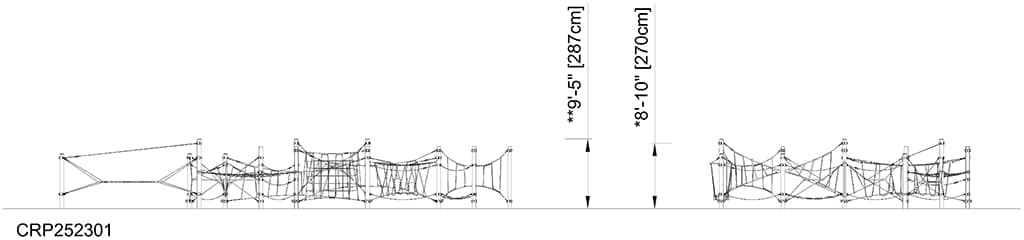

Height
287 cm
Safety Zone Length
2227 cm
Safety Zone Width
1437 cm
Age Group
5 - 12 Years
Capacity
64
Inclusive
No
Product category
Rope & Climbing Playgrounds
Product line
Corocord™ School-age
Product Highlights
Quality that lasts
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
Panels of 19mm CircularHDPE. CircularHDPE is a highly durable, eco-friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post-consumer material from food packing waste.
Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.
Corocord smart clamps are carefully designed in every detail to ensure superior flexibility in high quality aluminum material. The smart clamps are attached around the posts with four steel bolts. Not used attachment points are closed with PA caps.
Balance pads are made of EPDM rubber. Material is UV stabalised.
Play Activities
Balance
80
Bounce
8
Climb
3
Crawl
1
Hang in arms
23
Sensory
9
Socialize
12
Wonder
2
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
CRP252301-0902
10475.49
Total CO₂ emission (kg CO₂e)
7.18
CO₂e/kg (kg CO₂e/kg)
44.39%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
