CRP250502
Cabin Trail
Age Group
5 - 12 Years
Capacity
16
Product category
CRP250502
Cabin Trail
Specifications

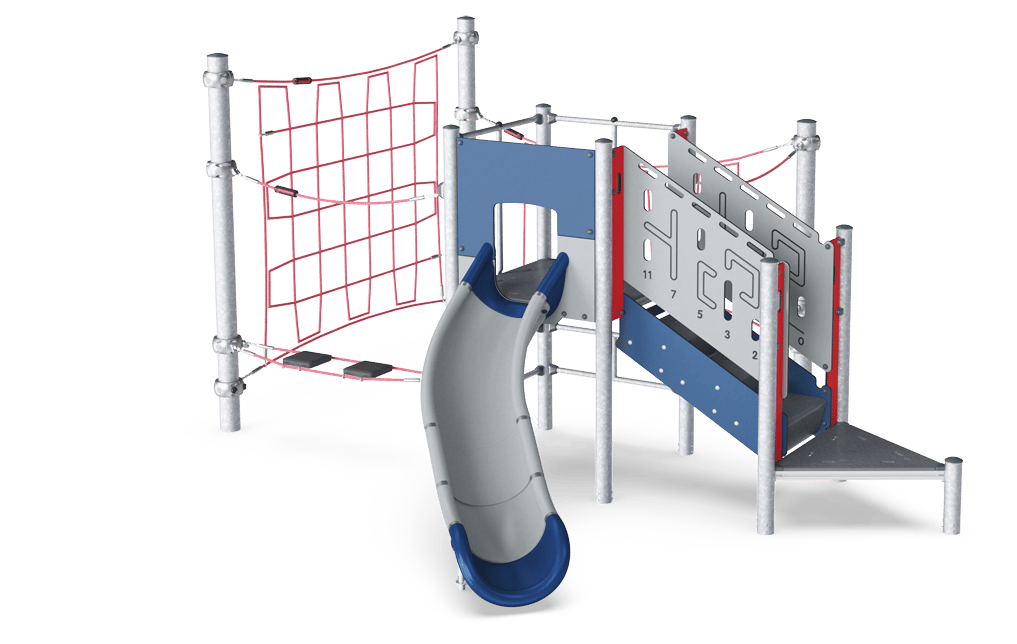

Cabin Trail
The Cabin Trail is exciting and multifunctional for a wide range of children. It attracts play instantly and again and again with its rich variety of climb, balance and slide activities that help develop movement skills that are fundamental for managing a range of life skills. The fun climb, crawl and balance through the Cabin Trail trains the motor skills' ABC: Agility, Balance and Coordination. These motor skills are fundamental to school children's ability to navigate the world with confidence, but also their ability to sit still and concentrate. The rope structures encourage meeting, turn-taking and self-regulation, all important social-emotional skills that will help children form friendships throughout life. The loop of play offers graded play challenges, and the slide invites a fun egress back to ground level.
This product, Cabin Trail (CRP250502), is provided by KOMPAN Canada.
Length
510 cm
Width
493 cm

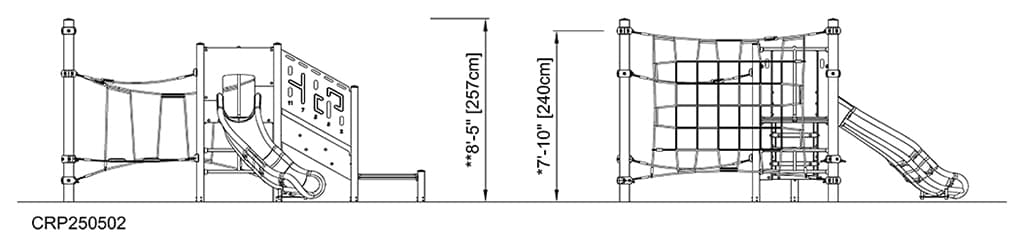

Height
257 cm

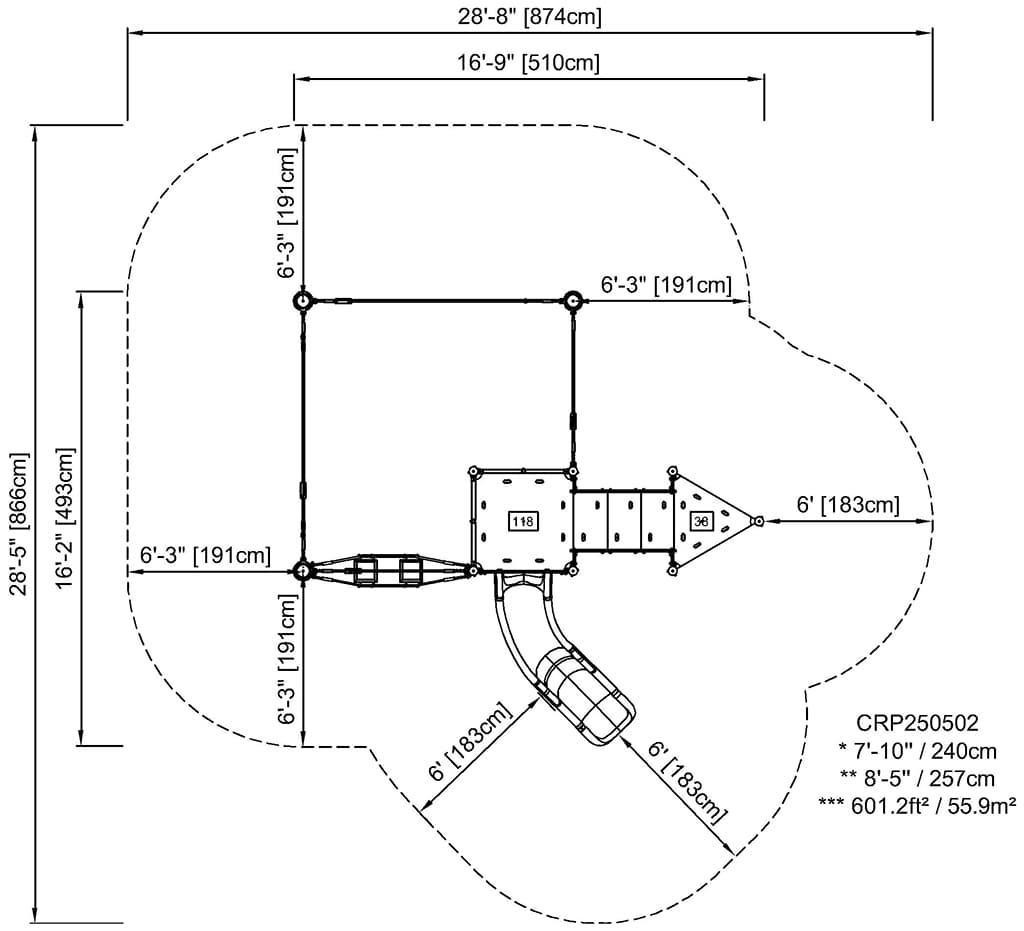

Safety Zone Length
874 cm
Safety Zone Width
866 cm
Age Group
5 - 12 Years
Capacity
16
ADA
Elevated activities
3
Accessible elevated activities
3 (2 Required)
Accessible ground level activities
4 (1 Required)
Accessible ground level play types
1 (1 Required)
Product category
Rope & Climbing Playgrounds
Product line
Corocord™ School-age
Product Highlights
Quality That Lasts
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
Panels of 19mm CircularHDPE. CircularHDPE is a highly durable, eco-friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post-consumer material from food packing waste.
Colored steel components have a base of hot dip galvanization and a powder coated top finish. This provides an ultimate corrosion resistance in all climates around the world. Other steel surfaces are hot dip galvanized inside and outside with lead free zinc.
Corocord smart clamps are carefully designed in every detail to ensure superior flexibility in high quality aluminum material. The smart clamps are attached around the posts with four steel bolts. Not used attachment points are closed with PA caps.
Molded PE slides made with 33% post-consumer materials in different colors in one-piece design with a wall thickness of minimum 5mm. The PE is tested for UV stability and has excellent impact strength and it is usable within a large temperature span.
Play Activities
Balance
11
Bounce
2
Climb
2
Hang in arms
3
Slide
1
Socialize
5
Sensory
8
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
CRP250502-0901
2629.8
Total CO₂ emission (kg CO₂e)
4.98
CO₂e/kg (kg CO₂e/kg)
54.73%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
