PCX2101

VAN CORTLANDT Play & Agility Tower

Try our AR-app

VAN CORTLANDT Play & Agility Tower

Colour LIME GREEN

The VAN CORTLANDT Play and Agility Tower I offers a climbing journey through freedom of movement, as it is not given how to move around. This ensures holding power as children can create new climbing routes again and again. Climbing stimulate children's cross coordination and muscle strength, while the slide, the balance beam, the fireman's pole and the summersault bar are great activities to stimulate balance, a skill necessary for their ability to sit still and concentrate e.g. in school. Children's fine motor skills can be trained as they play on the play panel following the route with their fingers. Start the obstacle race by giving a signal in the talk tube and measure your peers' time while hanging out in the hammock.
Photos

The products might not be exactly as shown

Key Features

PCX_Steel components and posts

All steel components are made of high quality materials. The posts have an alloy with improved tensile and yield strength according to the NYCP material specification. The painted aluminum post caps are riveted to the top of the post.

PCX_Steel Panels

All panels and one-piece welded steel grids are made of low carbon steel and corrosion treated by hot dip galvanization or metallization with a minimum thickness according to NYCP material specification.

PCX_Decks

All decks are made of perforated low carbon steel plates supported by aluminum profiles with no unsupported area larger than four square feet. After metallization the decks are coated with a polyurea non-slip surface which provides extremely good wear and tear resistance.

PCX_SS activities

The stainless steel activities are made of high quality stainless steel. The steel is glass blasted after manufacturing to ensure a smooth gliding surface.

PCX_HDG Steel surfaces

The steel surfaces are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.

PCX_Standard color combinations2

The product are designed in three different standard color combinations: Red and light blue, Light blue and lime green, Green and lime green. The layouts of the play structures can be customized through the KOMPAN Variant Team.

34 Users34 Users

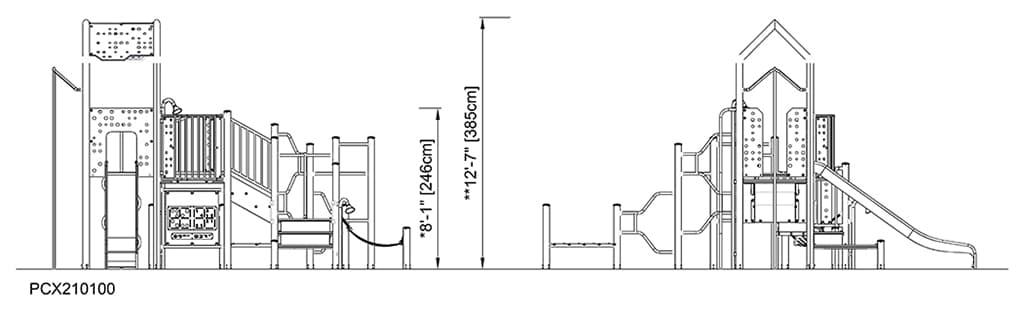

Side View (image)

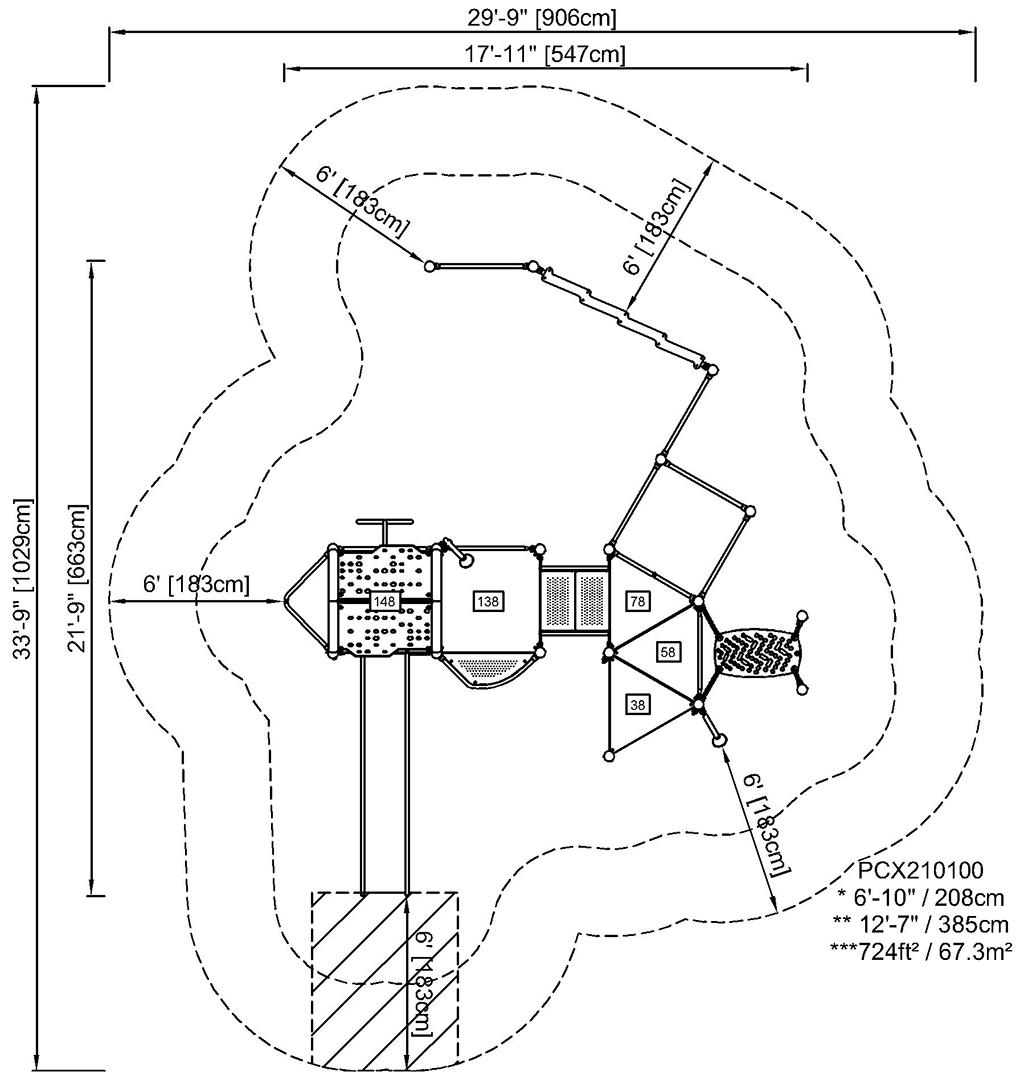

Foot Print (image)

Length

547 cm

Width

663 cm

Height

385 cm

Specifications

The VAN CORTLANDT Play and Agility Tower I offers a climbing journey through freedom of movement, as it is not given how to move around. This ensures holding power as children can create new climbing routes again and again. Climbing stimulate children's cross coordination and muscle strength, while the slide, the balance beam, the fireman's pole and the summersault bar are great activities to stimulate balance, a skill necessary for their ability to sit still and concentrate e.g. in school. Children's fine motor skills can be trained as they play on the play panel following the route with their fingers. Start the obstacle race by giving a signal in the talk tube and measure your peers' time while hanging out in the hammock.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

PCX210100-0901

3247.3

Total CO₂ emission (kg CO₂e)

3.4

CO₂e/kg (kg CO₂e/kg)

47.2%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

How can we help you?

If you have any questions regarding this specific product or your project, we are here to help!
