FSW230

Double Stairs

QR Code for Kompan EN/INT frontpage

AR 앱 체험하기

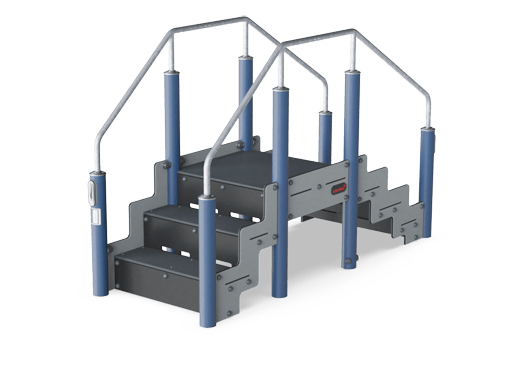

Double Stairs

색상 DARK BLUE

디자이너 로드
The stair is a very common everyday obstacle. Maintaining the ability to safely overcome any stairs is very important for elderly people to safely move around in urban environments. The stairs are available in two different versions: normal stairs or steep stairs. This allows for progression in exercise that can fit everyone – for example going from the normal stairs with hand support to the steep stairs without support. The stairs can also be used for simple effective exercises like step-ups, lunges and even jumping.
Photos

사진은 컨셉 참고용으로 실제와 다를 수 있습니다.

13+ 연령2 이용자

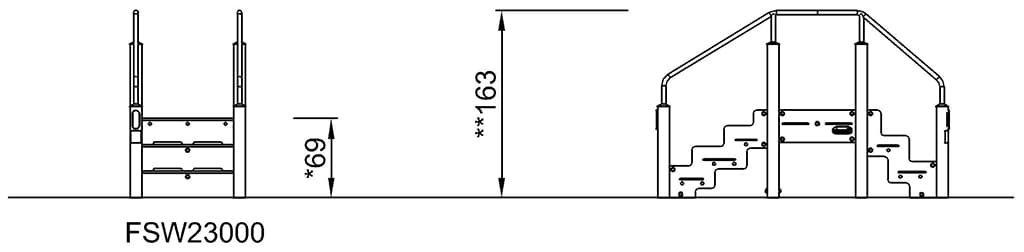

Side View (image)

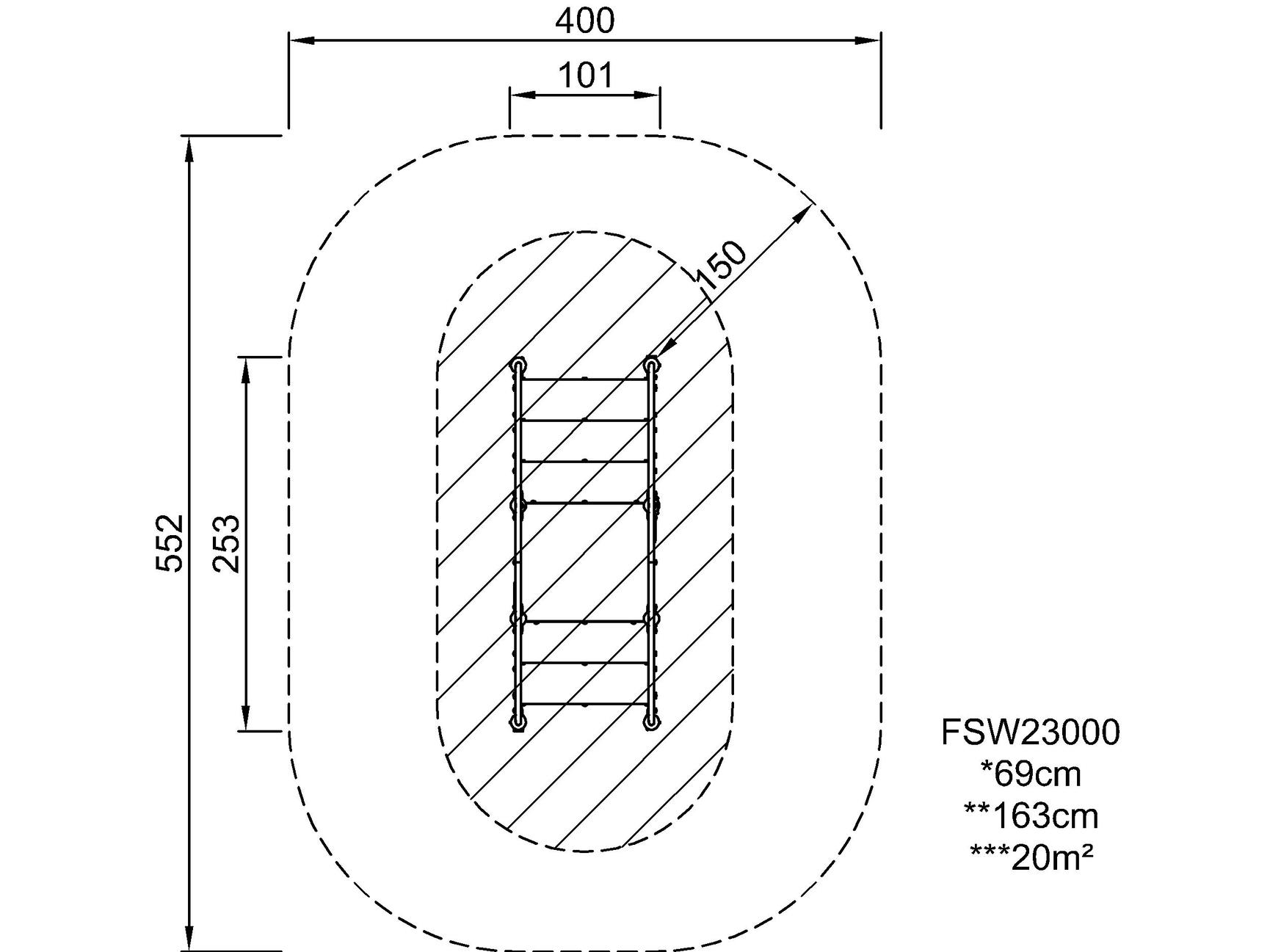

Foot Print (image)

길이

101 cm

너비

253 cm

높이

163 cm

사양

The stair is a very common everyday obstacle. Maintaining the ability to safely overcome any stairs is very important for elderly people to safely move around in urban environments. The stairs are available in two different versions: normal stairs or steep stairs. This allows for progression in exercise that can fit everyone – for example going from the normal stairs with hand support to the steep stairs without support. The stairs can also be used for simple effective exercises like step-ups, lunges and even jumping.

본 제품 Double Stairs (FSW230)은 KOMPAN 대한민국에서 제공합니다.

오래 지속되는 품질

FSW_HDG Handle bar

The bar is 1400mm long, with a height of 940mm and is intended as grip during exercises. The bar is made of hot-dip galvanised steel ø38mm, a great diameter for a good grip and to support the wrist.

PCM_Deck Alu profiles

All decks are supported by unique designed aluminium profiles with multiple attachment options by usage of pressure moulded aluminum connectors. The HPL decks with a thickness of 17.8mm with a very high wearing strength and a unique KOMPAN nonskid surface texture.

FSW_Post

Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.

FSW_Information sign

The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.

FSW_Connectors

The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.

FSW_Color options

KOMPAN fitness products are standard available in Orange, Anthracite Grey, Medium Grey, Dark Grey, Night Sky Blue, Light Blue, Yellow, Red, Black, Moss Green, Lime Green, Medium Green, Sand and Nut Brown. All other RAL colours are available on request. It will always be possible to match the surroundings or colour theme!

CO₂ 배출량

KOMPAN의 제품 및 지속 가능성 데이터 검증은 고객이 Bureau Veritas가 검증한 방법을 기반으로 정보에 입각한 지속 가능한 구매 선택을 할 수 있도록 지원합니다.

FSW23000-0902

614.26

총 CO₂ 배출량(kg CO₂e)

2.81

CO₂e/kg (kg CO₂e/kg)

43.98%

재활용 소재

이러한 요소에 적용되는 전반적인 프레임워크는 "제품의 수명 주기에 대한 환경 정보를 정량화하여 동일한 기능을 수행하는 제품 간의 비교를 가능하게 하는" 환경 제품 선언(EPD)입니다(ISO, 2006). 원자재부터 제조(A1-A3)에 이르는 전체 제품 단계에 전과정 평가 접근법을 적용합니다.

더 보기

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.

문의하기

특정 제품 및 프로젝트 문의하기
