FSW246

Bike

QR Code for Kompan EN/INT frontpage

Try our AR-app

Bike

Colour ORANGE

Loading Designer
The Bike offers high exercise value with user-friendly features. It’s equipped with a magnetic brake and flywheel system that ensures a smooth cycling experience and adjustable resistance levels. The workload can be easily modified with a conveniently placed handle—starting from a light level of under 50 watts to an intense level that exceeds 500 watts with rapid pedaling. Its handlebar is designed with multiple positions and a dedicated space for a smartphone, making it versatile for everything from rehabilitation to athletic training. The adjustable seat accommodates users from 150-195 cm.
Photos

The products might not be exactly as shown

13+ Years1 Users

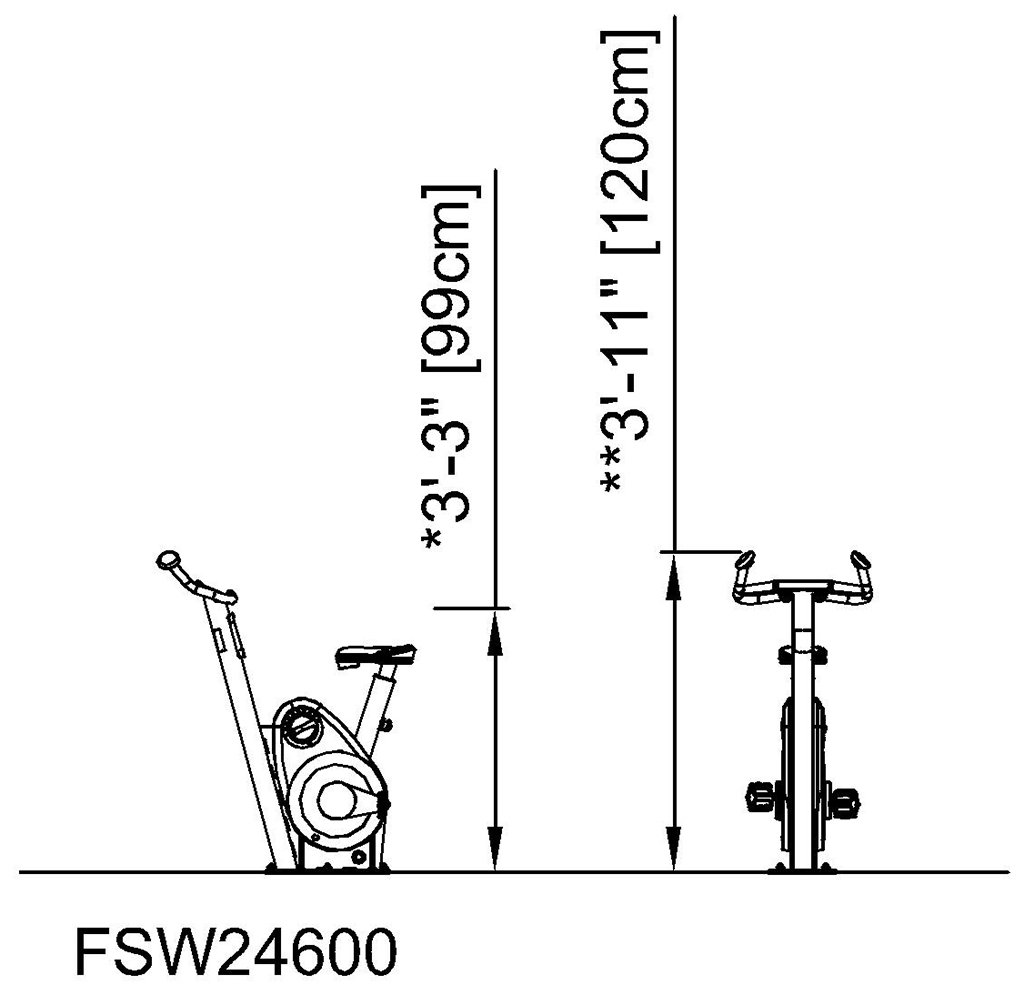

Side View (image)

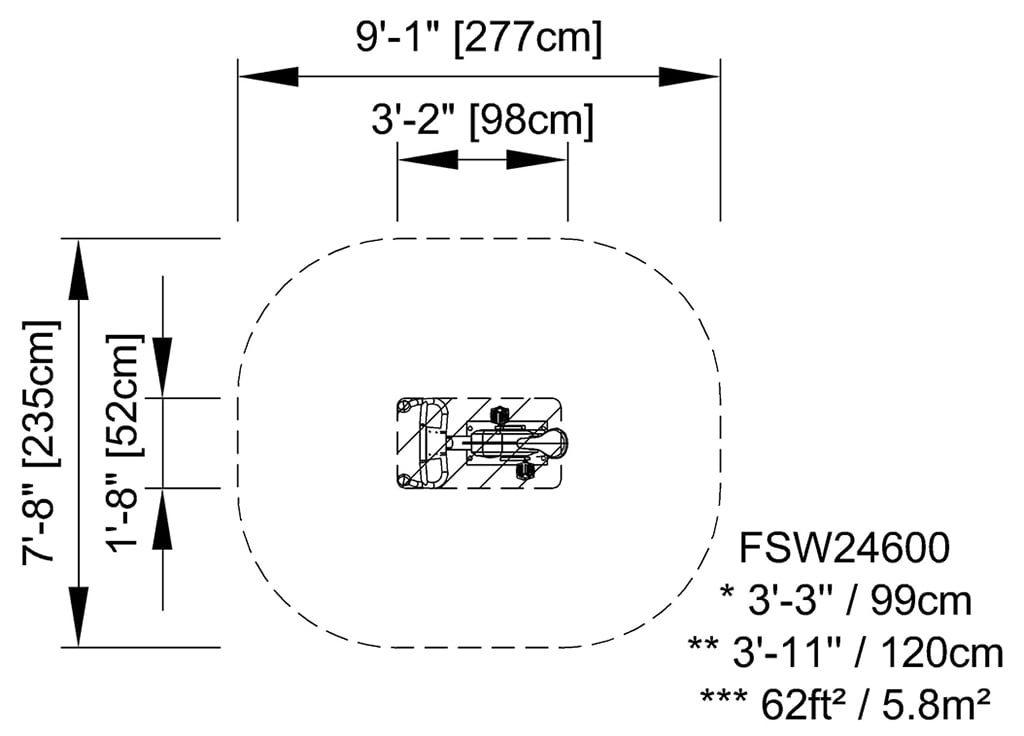

Foot Print (image)

Length

98 cm

Width

52 cm

Height

120 cm

Specifications

The Bike offers high exercise value with user-friendly features. It’s equipped with a magnetic brake and flywheel system that ensures a smooth cycling experience and adjustable resistance levels. The workload can be easily modified with a conveniently placed handle—starting from a light level of under 50 watts to an intense level that exceeds 500 watts with rapid pedaling. Its handlebar is designed with multiple positions and a dedicated space for a smartphone, making it versatile for everything from rehabilitation to athletic training. The adjustable seat accommodates users from 150-195 cm.

This product, Bike (FSW246), is provided by KOMPAN Canada.

Key Features

FSW_Bike Frame

The from tube for the frame is made of S235 hot-dip galvanized steel tubing with the following dimensions Ø76,1x3,6mm. and with a powder coating corrosion class C3 according to ISO12944-2.

FSW PC Cabinet

The resistance unit and all mechanical parts are hidden in the fully closed cabinet which is made from UV-stabilized Polycarbonate (PC). As a result, entrapment is not possible, making it extremely safe to use and providing protection against the elements.

FSW Magnetic Resistance

The magnetic resistance system is fully covered and can be adjusted with a rotatable handle in 10 steps. The selector system is intuitive in use, you rotate the handle to select a different amount of resistance.

FSW Flywheel

The machine is equipped with a weighted flywheel that ensures that the motion stays fluid and comfortable during use.

FSW bike seat low

Seat is made of injection molded soft PUR with a powder coated steel inlay made from s235 steel. The user can choose between 9 different seat heights, ranging between 845mm and 995mm. The seat allows users with a height of 150cm to 195 cm to comfortably use the bike.

FSW bike handlebar

The handlebar on the bike accommodates multiple different hand positions and riding styles. The handlebar is made from tubing with a circumference of ø34mm and a thickness of 3mm.

CO₂ emission

Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.

FSW24600-0001

282.37

Total CO₂ emission (kg CO₂e)

3.54

CO₂e/kg (kg CO₂e/kg)

40.67%

Recycled materials

The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).

Learn more

TENDER TEXT SPECIFICATIONS

Looking for tender specification texts?

Do you want to include this specific product in your project, and are you looking for detailed material information to help you specify? We have all the documentation you need. Fill out this form, and we will contact you with the relevant information you need.
