FSW21201
Double Turbo Challenge
Age Group
13+ Years
Capacity
3
Product category
FSW21201
Double Turbo Challenge
Specifications

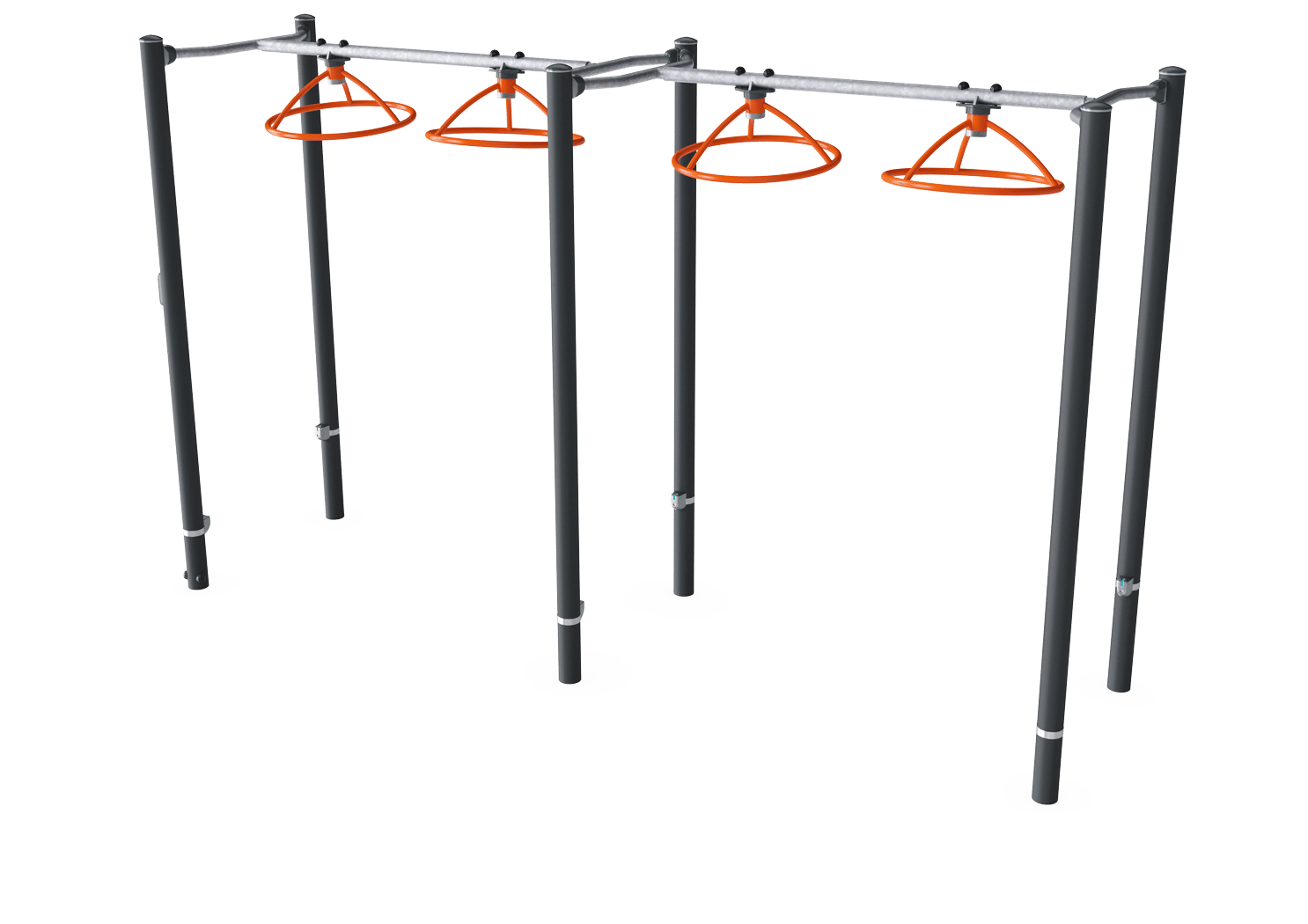

Double Turbo Challenge
The Turbo Challenge is the most dynamic and thrilling element of all obstacle course exercises. To do the exercise in the best way, a combination of skills, timing, rhythm and cross body coordination is needed. This Turbo Challenge is wide and high to ensure anyone can hang and move freely. To make sure that everyone can reach the dynamic wheels we added 6 stepping pods at different heights. For an optimized and direct swing the 4 four dynamic wheels have been mounted under a 5 degree angle.
This product, Double Turbo Challenge (FSW21201), is provided by KOMPAN Canada.

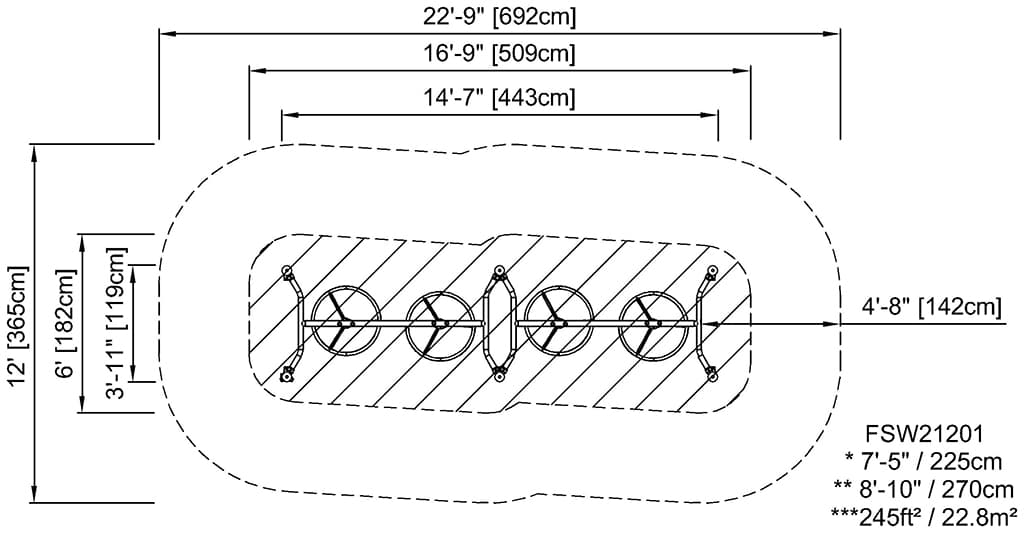

Length
443 cm
Width
119 cm

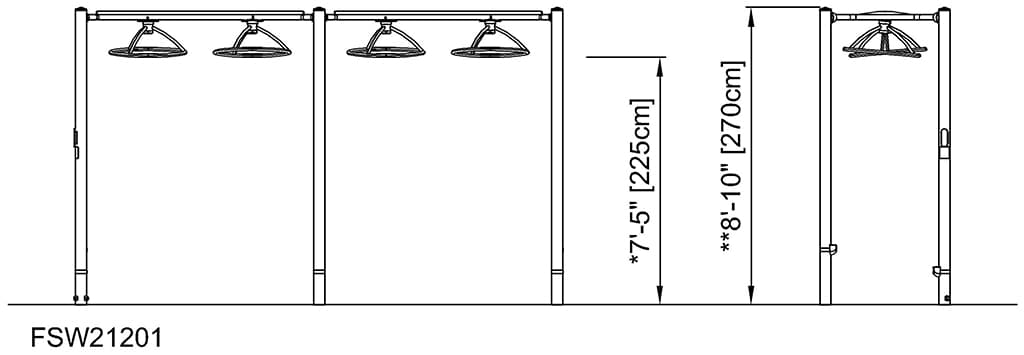

Height
270 cm
Safety Zone Length
692 cm
Safety Zone Width
365 cm
Age Group
13+ Years
Capacity
3
Inclusive
No
Product category
Fitness Essentials
Product line
Essentials Obstacle Courses
Product Highlights
Quality that lasts
Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
Steps are made of extruded aluminium with a non-skid surface. Aluminium has high corrosion resistance and ensures durability of the product. Steps have been mounted at heights of 34,7cm and 54,7cm this creates an easy access to reach the overhead activity
All KOMPAN fitness products are compliant with the ASTM F3101 & EN16630 Outdoor Fitness Standards. Load tests are performed as a static test by adding dynamic factors as well as safety factors to the specified load of 78kg per user. A product intended for 1 user is loaded with 420kg.
The information sign is made of a PA6 (Polyamide) and shows the most relevant exercise and a QR code. When scanned the QR code will link to an animated illustration of the exercise and offers the possibility of downloading the KOMPAN sport & fitness App, which will provide a large amount of exercises and workouts.
KOMPAN fitness products are standard available in Orange, Anthracite, Medium Grey, Dark Grey, Dark Blue, Light Blue, Yellow, Red, Black, Dark Green, Lime, Medium Green, Beige and Brown. All other RAL colours are available on request. It will always be possible to match the surroundings or colour theme!
Turbo Challenge
The KOMPAN Fitness Institute is a global network of sports and fitness experts and professionals who share knowledge, measure trends and conduct research. The network maintains strategic partnerships with all sorts of local parties, including universities, researchers, scientists and fitness experts and adds to the knowledge of effective sport and fitness at large.This knowledge permeates how we develop our outdoor fitness equipment for outdoor use and create inspiring outdoor fitness sites for all ages and abilities.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FSW21201-0900
601.5
Total CO₂ emission (kg CO₂e)
3.21
CO₂e/kg (kg CO₂e/kg)
65.61%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
