COR45400
Octanite
Age Group
4 - 12 Years
Capacity
36
Product category
COR45400
Octanite
Specifications
Octanite
The Octanite attracts children with its meandering climbing experience in three-dimensional nets. The symmetric climbing paths appeal immensely to children. The thrilling openness of action attract children again and again and make them want to come back. The bouncy, symmetric net cubes take concentration when climbing, as all the movements of other climbers can be sensed throughout which means risk assessment and concentration. Social interaction, cooperation and consideration of others are encouraged here. The nets train important motor skills such as proprioception, spatial awareness and cross-body coordination. These skills are fundamental for risk assessment when for instance judging and navigating traffic securely. The rich climbing experiences from bottom to top are graded challenges in play, which means this unit has a high play capacity for all abilities.
This product, Octanite (COR45400), is provided by KOMPAN Canada.
Length
539 cm
Width
539 cm
Height
460 cm

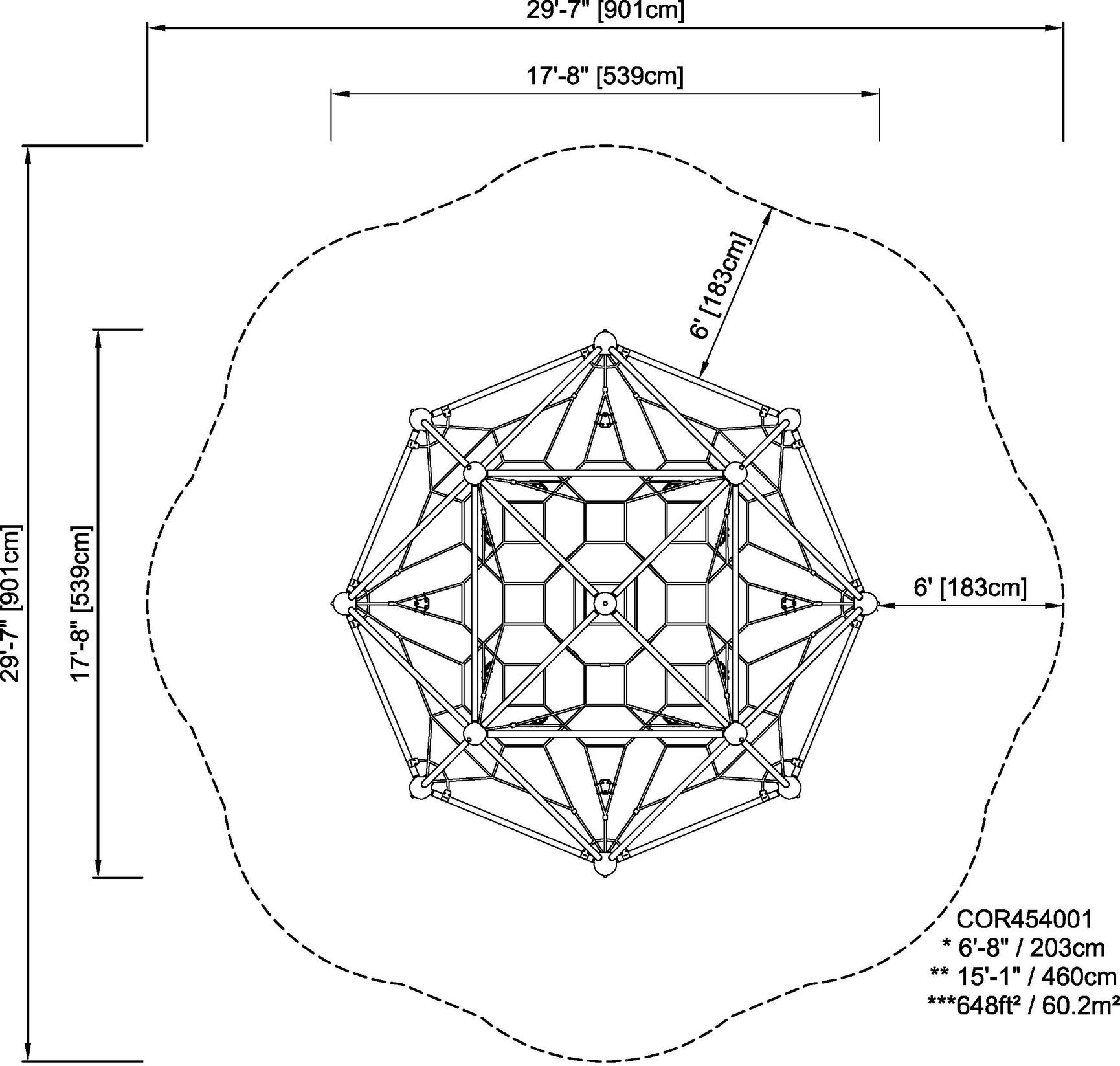

Safety Zone Length
901 cm
Safety Zone Width
901 cm
Age Group
4 - 12 Years
Capacity
36
ADA
Accessible ground level activities
1 (1 Required)
Accessible ground level play types
1 (1 Required)
Product category
Rope & Climbing Playgrounds
Product line
Corocord™ School-age
Product Highlights
Quality That Lasts
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand. The ropes are highly wear-and vandalism-resistant and can be replaced at site if needed.
Corocord 'S' clamps are used as universal connections in Corocord products. 8mm stainless steel rods with rounded edges are pressed around the ropes with a special hydraulic press, making them the ideal connector: safe, durable and vandalism-proof, all while allowing the typical movement of rope play structures.
The unique designed connector balls with a diameter of 230mm are made of high quality aluminum with a powder coated top finish. The inside tensioning parts are made of hot dip galvanized steel.
The steel surfaces are hot dip galvanized inside and outside with lead free zinc. The galvanization has excellent corrosion resistance in outside environments and requires low maintenance.
Corocord membranes consist of friction-proof rubberized material of conveyor belt quality with excellent UV resistance. Tested and compliant with REACH requirements for PAH. Embedded is a four-layered armouring made of woven polyester. The armouring and the two surface layers result in a total thickness of 7.5 mm.
The aluminium swages of the net are double conical with rounded ends and are as small as safety allows. The overall net design aims at keeping metal parts within the net to an absolute minimum, both in size and number, in order to provide the best possible rope climbing experience.
Play Activities
Bounce
9
Climb
9
Crawl
9
Hang in arms
4
Sensory
3
Socialize
9
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
COR454001-0406
5236.74
Total CO₂ emission (kg CO₂e)
7.21
CO₂e/kg (kg CO₂e/kg)
45.21%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enables comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
