KPW400601
Four Tower with Waggle Bridge
Age Group
2+ Years
Capacity
19
Inclusive
No
Product category
KPW400601
Four Tower with Waggle Bridge
Specifications

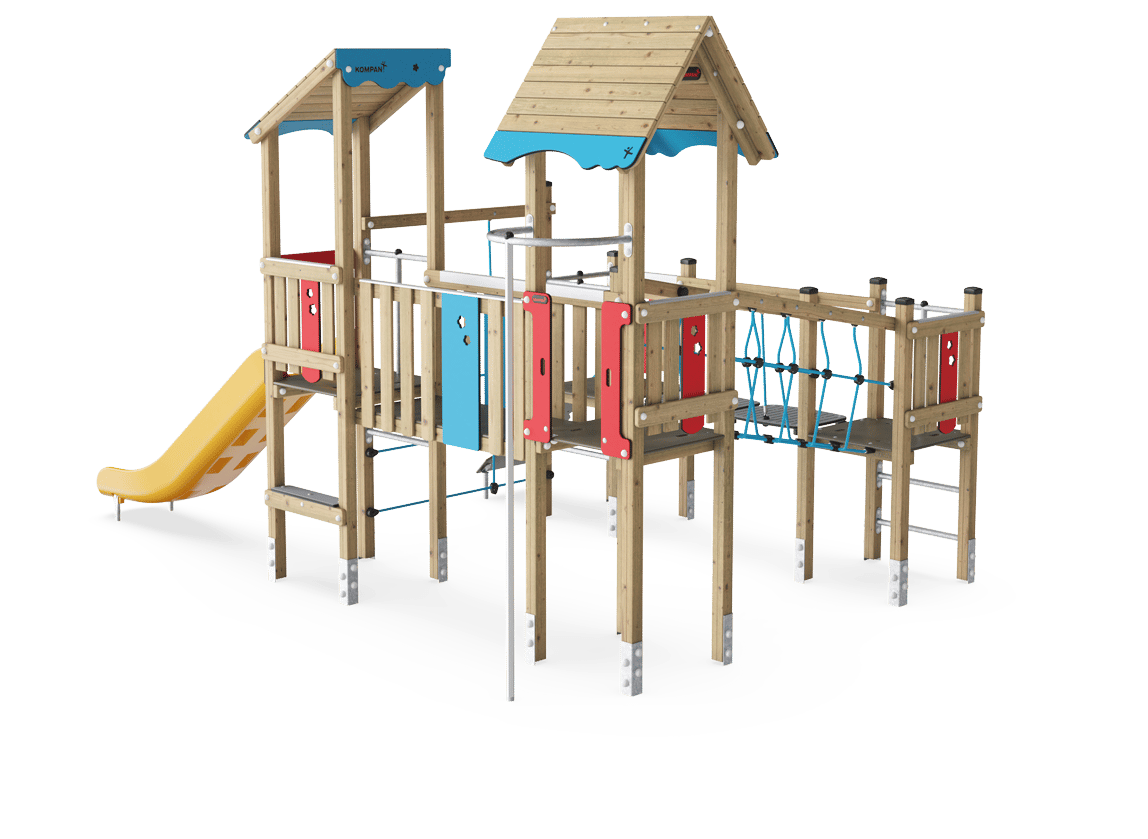

Four Tower with Waggle Bridge
This four tower play structure offers varied play for a lot of children. The first tower can be reached via an inclined climbing wall with smiley steps offering a supportive climb up to a higher level. From here a balancing wackle bridge lead to the inclined net bridge up to the next level. The fireman's pole slide offers fast egress to the ground. Alternatively, a bridge can be crossed from where a classic slide can take the child to the ground or the child can pass the net with big meshes back to start. The level changes and inclinations of the structure train the child's sense of balance and spatial awareness which are crucial for judging distances in day to day life for instance, when crossing the road.
This product, Four Tower with Waggle Bridge (KPW400601), is provided by KOMPAN Middle East (MEA).
Length
513 cm
Width
341 cm
Height
322 cm
Fall Space Length
800 cm
Fall Space Width
636 cm
Age Group
2+ Years
Key user group
2 - 6 Years
Capacity
19
Inclusive
No
Product category
Nature Playgrounds
Product line
Northland Play Structures
Product Highlights
Quality that lasts
Panels of FSC®-certified (FSC®C004450) pine wood with pressure-impregnated base treatment. Vertical boards and top ends are protected by a unique aluminium profile for high outdoor durability.
Panels of 19mm CircularHDPE. CircularHDPE is a highly durable, eco-friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post-consumer material from food packing waste.
Roof of FSC®-certified (FSC®C004450) pine wood with pressure-impregnated base treatment.
The main tower posts are available in two types of material: European pine wood posts, pressure impregnated Class 3 according to EN335 (Equivalent to NTR Class AB). Aluminum post t=2mm with anodized surface treatment. Base material EN AW-6060 T66.
Floors and panel activities are available in two types of material: Waterproof plywood decks, thickness 16mm from pine and alder wood with anti-slip film on both sides. High Pressure Laminate HPL thickness 17.8mm with slip-resistant surface texture according to EN 438-6.
The slides can be chosen in six different colours and three materials: Straight or curved one-piece moulded PE slides, made from 33% recycled post-consumer materials in different colours. Combined CircularHDPE sides and stainless-steel. Full stainless steel in a one-piece design for greater vandalism resistance.
The stainless-steel activities are made of high-quality stainless steel. The steel is cleaned by a total pickling process after manufacturing to ensure a smooth and clean gliding surfaces.
Ropes of UV-stabilized PES rope strands with inner steel cable reinforcement. The polyester yarn is made from +95% post-consumer materials and is inductively melted onto each strand.
Play Activities
Balance
4
Climb
4
Glide
1
Hang in arms
1
Jump
1
Sensory
6
Slide
1
Socialize
7
Sway
2
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
KPW400601-0901
1186
Total CO₂ emission (kg CO₂e)
2.34
CO₂e/kg (kg CO₂e/kg)
23.58%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
