PCM113221
Man-O-War
Age Group
4+ Years
Capacity
53
Inclusive
No
Product category
PCM113221
Man-O-War
Specifications

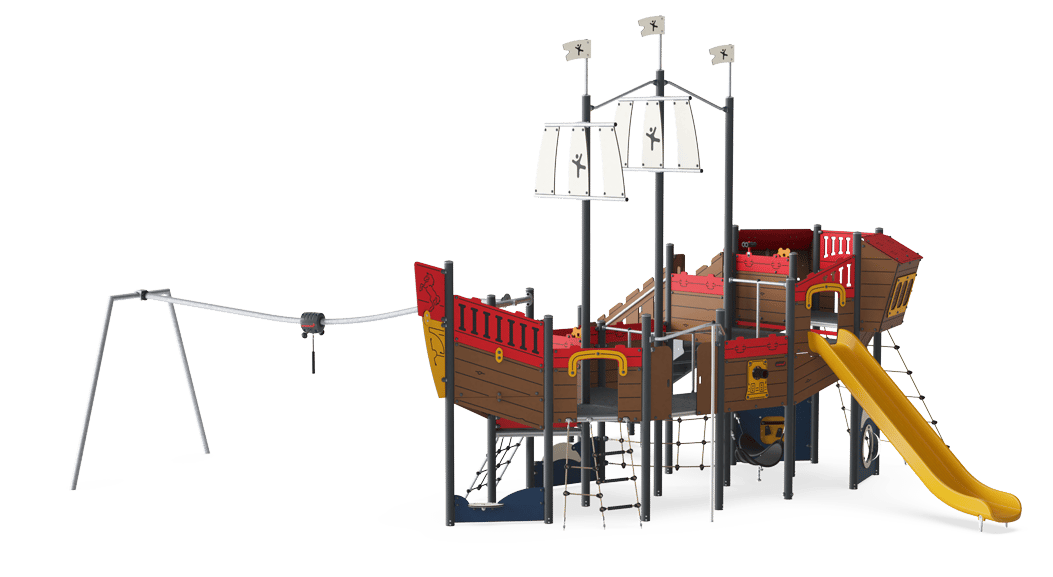

Man-O-War

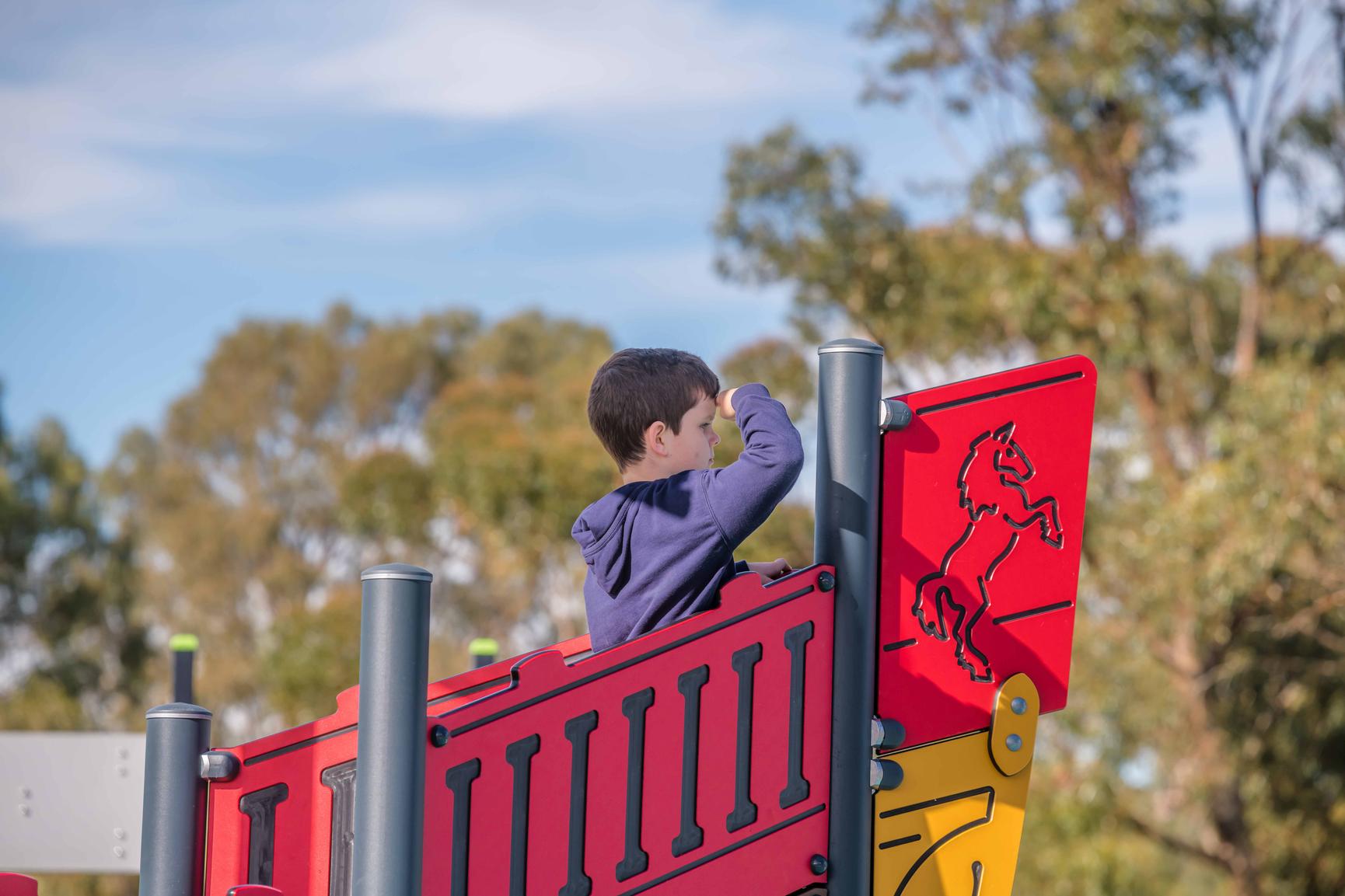

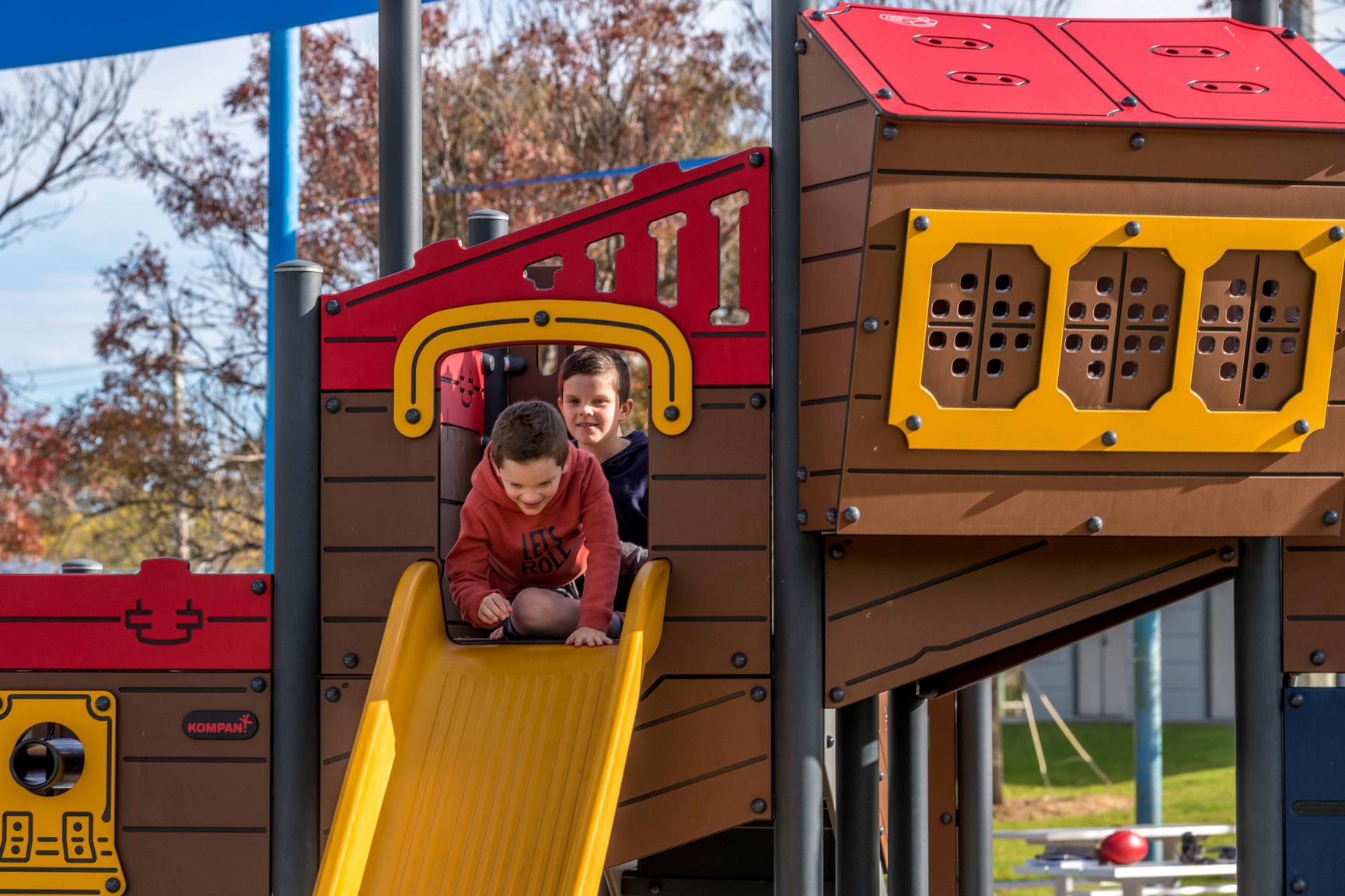

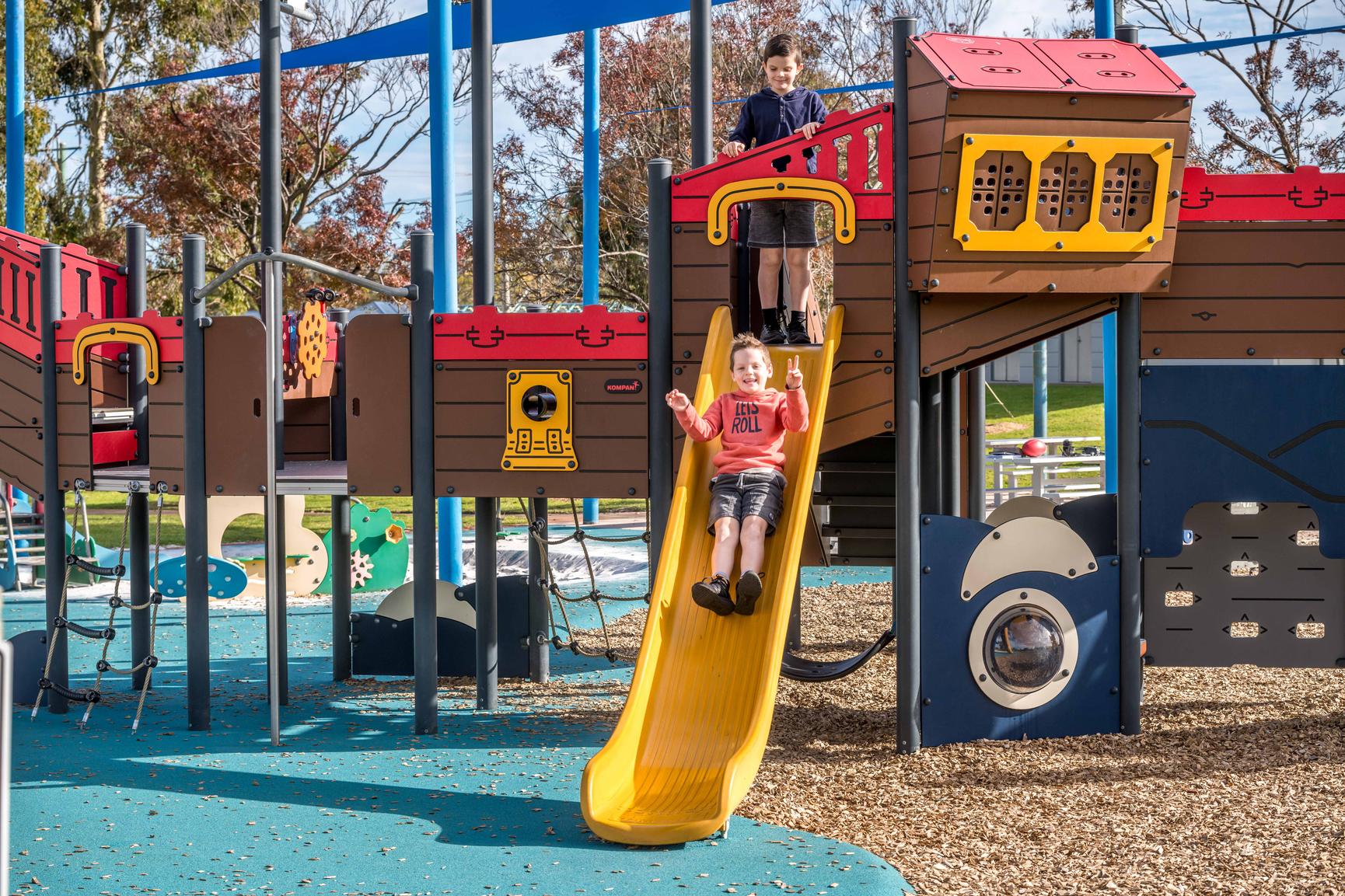

The Man-O-War attracts the play pirate in any child that beholds it. The vast variety of activities offers multi-level fun play for everyone, again and again. Under deck a number of play stations attract children for dramatic play and socialising. A variety of climbing nets provide challenging access to get on board. Special design features enrich the play, and support children's physical development. For example, the swaying movements of the hammock help children to develop their sense of balance. The slide and the fireman's pole both support posture and balance. The track ride adds immense thrill and supports children's proprioception, their understanding of their body movements. The many lookout points and tactile details ensure hours of play for younger children and older, for great physical and imaginative fun.
This product, Man-O-War (PCM113221), is provided by KOMPAN Middle East (MEA).
Length
963 cm
Width
997 cm
Height
561 cm
Fall Space Length
1212 cm
Fall Space Width
1344 cm
Age Group
4+ Years
Key user group
4 - 12 Years
Capacity
53
Inclusive
No
Product category
Classic Playgrounds
Product line
Moments™ Themed Play
Product Highlights
Quality that lasts
Panels of 19mm CircularHDPE. CircularHDPE is a highly durable, eco-friendly material, which is not only recyclable after use, but also consists of material produced from +95% recycled post-consumer material from food packing waste.
Main posts with hot dip galvanised steel footing are available in different materials: Pressure impregnated pine wood posts. Pre-galvanised inside and outside with powder coated top finish steel posts. Lead free aluminium with colour anodised top finish.
All decks are supported by unique designed low-carbon aluminum profiles with multiple attachment options. The grey colored molded decks are made of 75% post-consumer waste PP material with a non-skid pattern and texture surface.
The slides can be chosen in different materials and colours: Straight or curved moulded PE slides in yellow or grey colour. Full stainless steel in on-piece design for more vandalism proof solutions.
Nets and ropes are made of UV-stabilised PA with inner steel cable reinforcement. The rope is induction treated in order to create a strong connection between steel and rope which leads to good wear resistance.
The hang-on puller is designed with at welded steel core and covered with low-density PE housing. The two hot dip galvanised steel handles are angled to provide best possible ergonomic while gliding. The wheels of the puller are made of low noise TPU and installed with sealed ball bearings.
Play Activities
Balance
1
Climb
7
Construct
6
Dramatic play
10
Glide
2
Hang in arms
2
Jump
2
Pull
1
Push
1
Rotate
1
Sensory
11
Slide
1
Socialize
19
Sway
2
Wonder
2
Each play activity represents a type of play experience, such as balancing, social interaction, climbing, or sensory exploration. The number indicates how many opportunities the product offers for children to engage in that activity. Together, these activities help create a varied and developmentally rich play experience.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
PCM113221-0901
4677.34
Total CO₂ emission (kg CO₂e)
3.04
CO₂e/kg (kg CO₂e/kg)
71.61%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
