FSW105
Combi 5
Age Group
13+ Years
Capacity
14
Inclusive
Yes
Product category
FSW105
Combi 5
Specifications

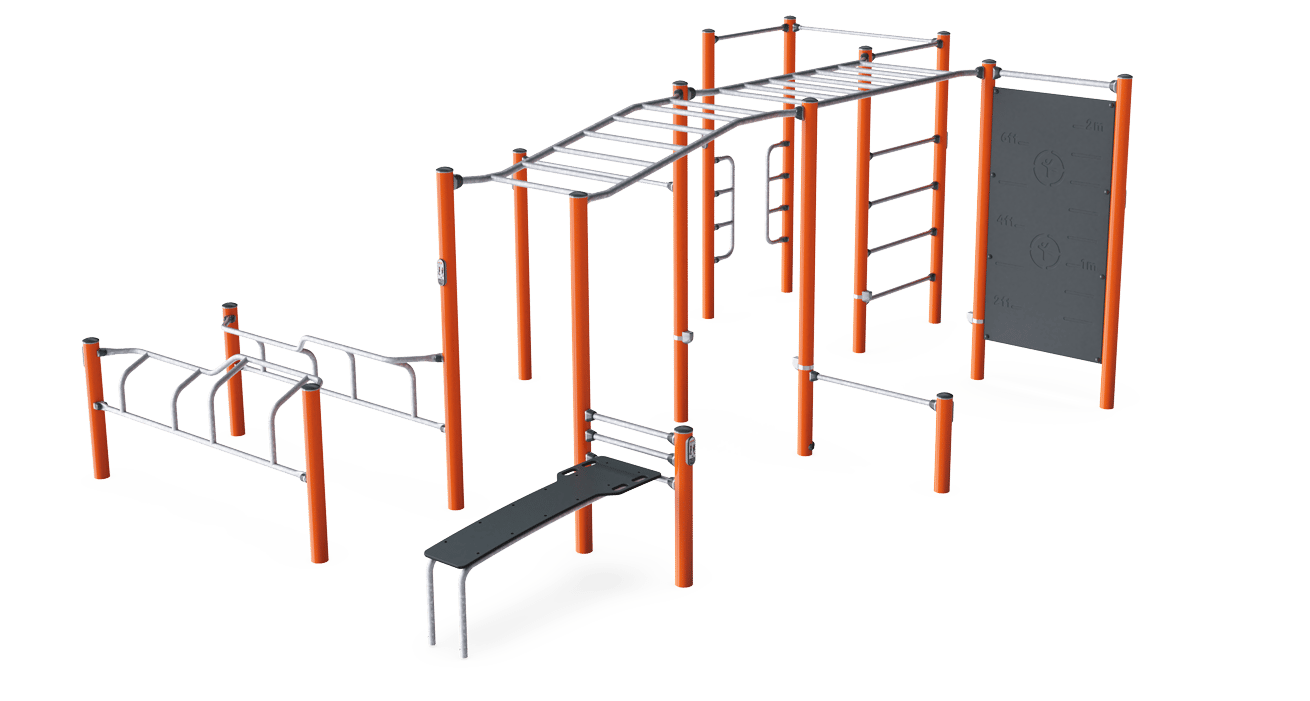

Combi 5
With 10 different workout stations in one, this combination package offers a superior street workout and callisthenics experience. Featuring all the essential elements for users to release their creativity, the dimensions of the pull-up bars have been optimised to 32mm for the best possible hand grip. The strength of the bar is secured through a conical design and a full steel bar. The 138cm wide pull-up bars are designed to give plenty of space to dynamic exercises and promote sideways exercises such as the typewriter pull-up. The wide bars also allow users to do pull-ups next to each other and thereby compete or motivate each other. The Universal Parallel Bars allow for users of all capabilities to work on dips and stretch exercises with a wider entrance on one side for wheelchair users.
This product, Combi 5 (FSW105), is provided by KOMPAN Middle East (MEA).
Length
695 cm
Width
444 cm
Height
240 cm
Fall Space Length
994 cm
Fall Space Width
738 cm
Age Group
13+ Years
Capacity
14
Inclusive
Yes
Product category
Fitness Essentials
Product line
Essentials Street Workout
Product Highlights
Quality that lasts

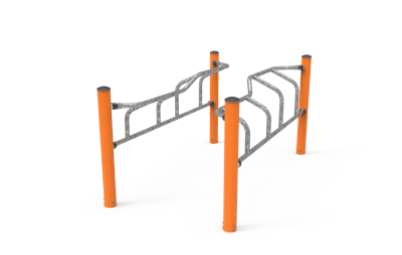

The Dip-Station is designed with inclusive in mind, allowing wheelchair users to access the bars at either end. The two bars are placed at two different widths and heights – one narrow and high and one wide and low to allow for training of different individuals and muscle groups.
Steps are made of extruded aluminium with a non-skid surface. Aluminium has high corrosion resistance and ensures durability of the product. Steps have been mounted at heights of 34,7cm and 54,7cm this creates an easy access to reach the overhead activity
All bars intended for pull ups are made of solid, ø32mm x 138 m, hot dip galvanised, S235JR steel bars. This diameter gives the right grip for everyone.
The handles offer 4 different heights to place the hands or feet
Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
The surface is made of Ekogrip™ panels, consisting of 15mm polyethylene with a 3mm top-layer of thermoplastic rubber. The Ekogrip™ panels have a non-skid effect for comfortable and safe training at all weather circumstances.
Monkey Swing
Sit Up
Triceps Extension Parallel
Push Up Incline Press
Push Up Easy Incline Press
Handstand
Handstand Push Up
Pull Up
The KOMPAN Fitness Institute is a global network of sports and fitness experts and professionals who share knowledge, measure trends and conduct research. The network maintains strategic partnerships with all sorts of local parties, including universities, researchers, scientists and fitness experts and adds to the knowledge of effective sport and fitness at large.This knowledge permeates how we develop our outdoor fitness equipment for outdoor use and create inspiring outdoor fitness sites for all ages and abilities.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FSW10502-0901
1517.66
Total CO₂ emission (kg CO₂e)
3.41
CO₂e/kg (kg CO₂e/kg)
57.12%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
