FPW217
Hexagon Pull Up Station
Age Group
8+ Years
Capacity
6
Inclusive
No
Product category
FPW217
Hexagon Pull Up Station
Specifications

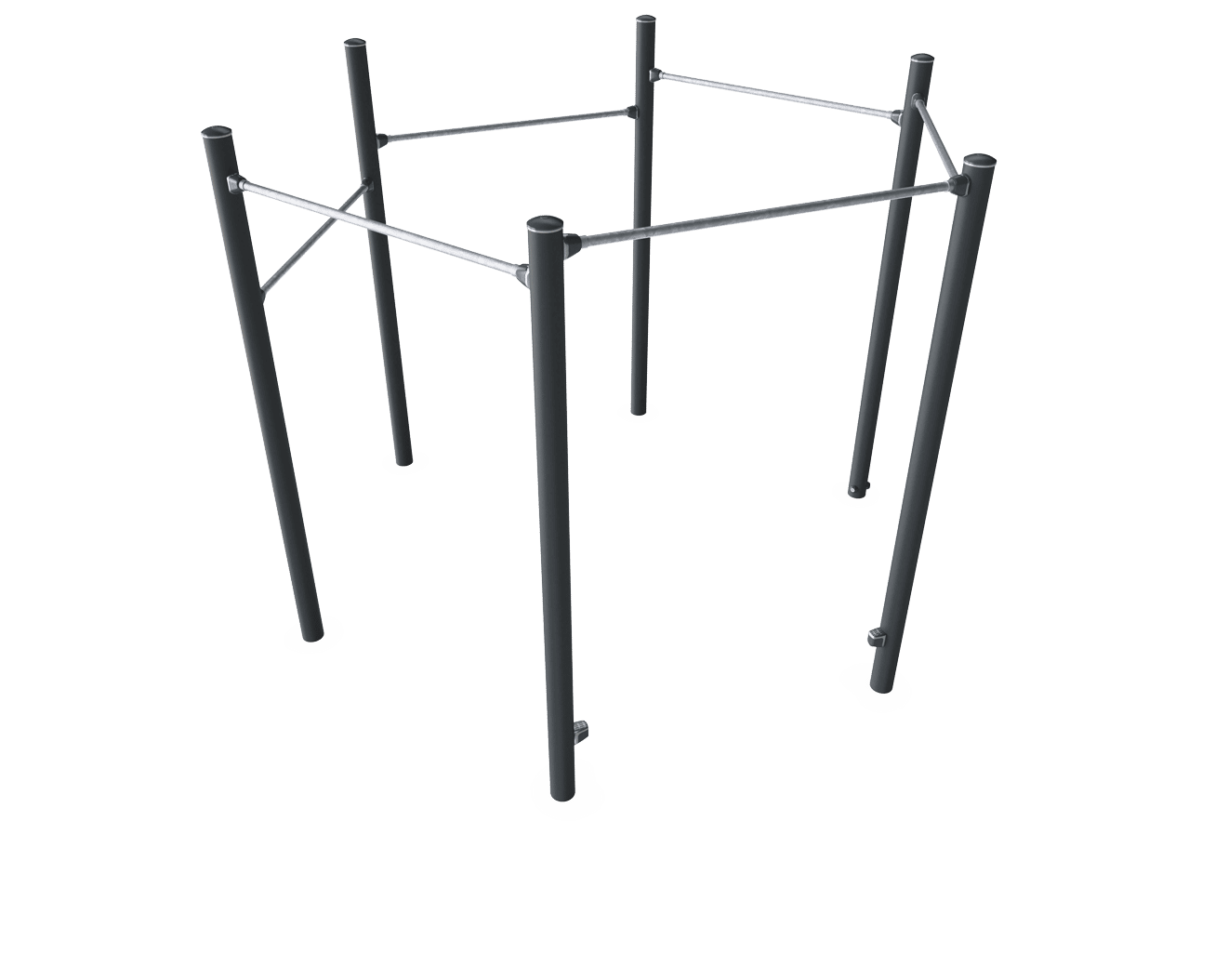

Hexagon Pull Up Station
The hexagon pull up can be used in many ways and by multiple users at the same time. Exercises range from normal pull ups to the most dynamic and advanced exercises such as the Muscle Up. The Pull Up Bars are made from solid steel and have a diameter of 32 mm. An ideal size for kids, men and women to have a good grip. As the highest bar is connected at a height of 233 cm everyone will be able to hang freely, to make sure that everyone can reach the pull up bars there are 2 stepping pods at different heights.
This product, Hexagon Pull Up Station (FPW217), is provided by KOMPAN Middle East (MEA).
Length
317 cm
Width
277 cm
Height
240 cm
Fall Space Length
697 cm
Fall Space Width
678 cm
Age Group
8+ Years
Key user group
8 - 15 Years
Capacity
6
Inclusive
No
Product category
Classic Playgrounds
Product line
Fitness Playgrounds
Product Highlights
Quality that lasts
Post are made of Ø101.6 x 2mm, pre-galvanized carbon steel and powder coated, a great protection to all conditions.
Steps are made of extruded aluminium with a non-skid surface. Aluminium has high corrosion resistance and ensures durability of the product. Steps have been mounted at heights of 34,7cm and 54,7cm this creates an easy access to reach the overhead activity
The connectors are made of die-cast aluminium, specially alloyed for the outdoor environments and heavy usage. The screws attaching the connectors are stainless steel and protected by zinc washers.
All bars intended for pull ups are made of solid, ø32mm x 138 m, hot dip galvanised, S235JR steel bars. This diameter gives the right grip for everyone.
CO₂ emission
Sustainability Data
Our product and sustainability data validation help customers make informed sustainable buying choices based on methods validated by Bureau Veritas.
FPW21700-0900
448.33
Total CO₂ emission (kg CO₂e)
2.9
CO₂e/kg (kg CO₂e/kg)
67.72%
Recycled materials
The overall framework applied for these factors is the Environmental Product Declaration (EPD), which quantifies "environmental information on the life cycle of a product and enable comparisons between products fulfilling the same function" (ISO, 2006). This follows the structure and applies a Life-Cycle Assessment approach to the entire Product stage from raw material through manufacturing (A1-A3).
